About the LoremIpsum36 PCB

LoremIpsum36 is an open source RP2040/RP2350 PCB design by penk, published on GitHub under the MIT license. It is a 2-layer board measuring 236.5 × 111 mm, with 73 components from 3 distinct parts.

Its main chip is the RP2040_Zero, from the RP2040/RP2350 family. By type, the board carries 36 switches, 36 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A minimal Gateron LP column staggered build

Quantity | Item --- | --- 1 | RP2040-Zero 1 | LoremIpsum36 PCB 36 | Gateron LP switches and keycaps 36 | KS-33 sockets 36 | 1N4148SOD-123 diodes 1 | LoremIpsum36 case 10 | M2×3 heat-set threaded inserts 10 | M2×12 countersunk screws

To place an order for the LoremIpsum36 PCB:

- Use the Gerber files available in the production/ folder. - The BOM and CPL files can be used with a PCBA service -- especially if you prefer to avoid soldering small diodes.

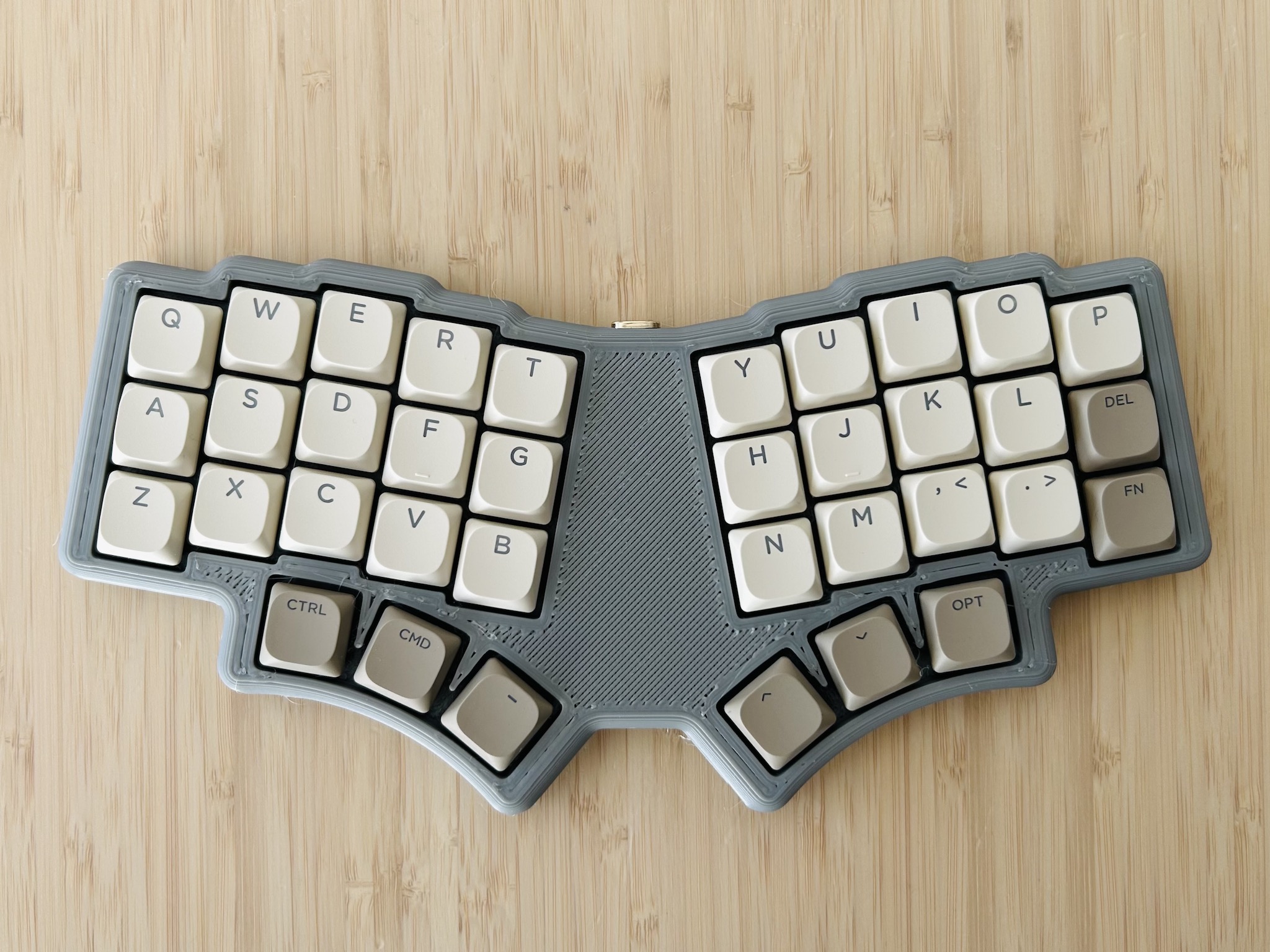

LoremIpsum36, from the project README — From the project README

Main components on the LoremIpsum36

RP2040_Zero

LoremIpsum36 bill of materials (BOM)

73 components, 3 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040_Zero	RP2040_Zero_holes	U1
36	C9900059694 Keyswitch	SW_KS33_HS_KS-2P02B01-02_HS_1u	S1, S2, S3, S4, S5, S6, S7, S8 +28
36	C2972760 Diode	Diode_SOD-123	D1, D2, D3, D4, D5, D6, D7, D8 +28

LoremIpsum36 design files

The KiCad project lives in the penk/LoremIpsum36 repository on GitHub; these links point at the commit this page was built from.

LoremIpsum36: common questions

What microcontroller does the LoremIpsum36 use?

The LoremIpsum36 is built around the RP2040_Zero, from the RP2040/RP2350 family.

How big is the LoremIpsum36 PCB?

The LoremIpsum36 measures 236.5 × 111 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LoremIpsum36?

73 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the LoremIpsum36 design files?

From the penk/LoremIpsum36 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the LoremIpsum36 design in my own project?

Yes, under the terms of its MIT license, which penk chose for the repository.

Can I test firmware for the LoremIpsum36 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
