About the WeirdFlexButOk PCB
WeirdFlexButOk is an open source RP2040/RP2350 PCB design by penk, published on GitHub under the MIT license. It is a 2-layer board measuring 238 × 109.9 mm, with 75 components from 4 distinct parts.
Its main chip is the RP2040_Zero, from the RP2040/RP2350 family. By type, the board carries 36 switches, 36 diodes, 2 inductors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

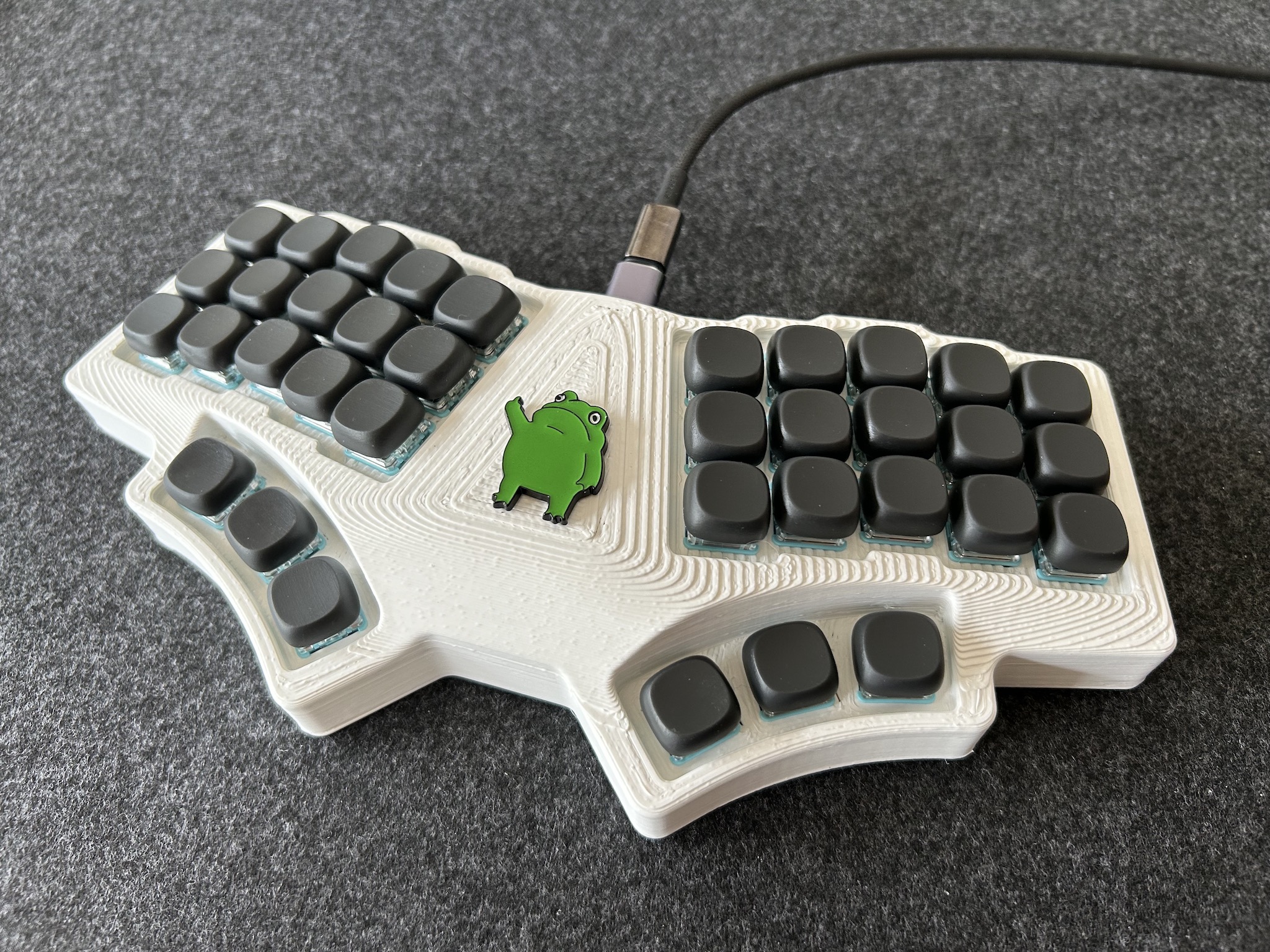

A hot-swappable unibody ergo split keyboard with a 15° tilt and 10° tent
A hot-swappable unibody ergo split keyboard.
This is inspired by Joe Scotto's handwired ScottoErgo but opts for Choc spacing and hot-swap sockets, plus a super-bendy 0.8mm PCB with kerf bending cuts. It flexes to follow the case’s contour, providing a 15° tilt and 10° tent from one FR4 PCB.
Quantity | Item --- | --- 1 | RP2040-Zero & Pin headers 1 | WeirdFlexButOk PCB 1 | WeirdFlexButOk case & plate 36 | Kailh Choc V1 switches 36 | Kailh Choc V1 Hot-swap sockets 36 | 1N4148 diodes (SMD) 2 | WS2812B LEDs (optional, for underglow) 8 | M2x4 heat-set thread inserts 6 | M2x8 standoffs 14 | M2x4…

Main components on the WeirdFlexButOk
WeirdFlexButOk bill of materials (BOM)
75 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RP2040_Zero | RP2040_Zero | U1 |
| 36 | C5333465 Keyswitch | SW_choc_v1_HS_1u | S1, S2, S3, S4, S5, S6, S7, S8 +28 |
| 36 | C2972760 Diode | Diode_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +28 |
| 2 | WS2812B | LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm | L1, L2 |
WeirdFlexButOk design files
The KiCad project lives in the penk/WeirdFlexButOk repository on GitHub; these links point at the commit this page was built from.
WeirdFlexButOk: common questions
What microcontroller does the WeirdFlexButOk use?
The WeirdFlexButOk is built around the RP2040_Zero, from the RP2040/RP2350 family.
How big is the WeirdFlexButOk PCB?
The WeirdFlexButOk measures 238 × 109.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WeirdFlexButOk?
75 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the WeirdFlexButOk design files?
From the penk/WeirdFlexButOk repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the WeirdFlexButOk design in my own project?
Yes, under the terms of its MIT license, which penk chose for the repository.
Can I test firmware for the WeirdFlexButOk without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
