STM32H7 Board

phancak·STM32H7_Board

STM32H7 Board layout, top view — open source STM32 board by phancak

About the STM32H7 Board

STM32H7 Board is an open source STM32 PCB design by phancak, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 50 mm, with 102 components from 46 distinct parts.

Its main chip is the STM32H7S3I8T6, from the STM32 family. Other key parts include the MT29F1G08ABAEAWP-IT:E TR, SN74LVC1G07DBVR and USBLC6-2SC6. By type, the board carries 47 capacitors, 32 resistors, 5 ICs, 4 connectors, 3 inductors and 2 crystals.

It belongs with the audio and displays & leds designs in this gallery.

From the project

High-Performance STM32H7S3 System-on-Module | 600MHz ARM Cortex-M7 | External SDRAM & NAND Flash Integration | 4-Layer High-Speed PCB optimized for real-time control and LCD UI.

The platform is designed to serve as a high-bandwidth "Main Compute Module" that interfaces with expansion boards via a variety of industrial-standard protocols (PSSI, I2S, I2C, SPI, UART).

To ensure the reliability of a 600 MHz system, the following hardware validation protocols were implemented:

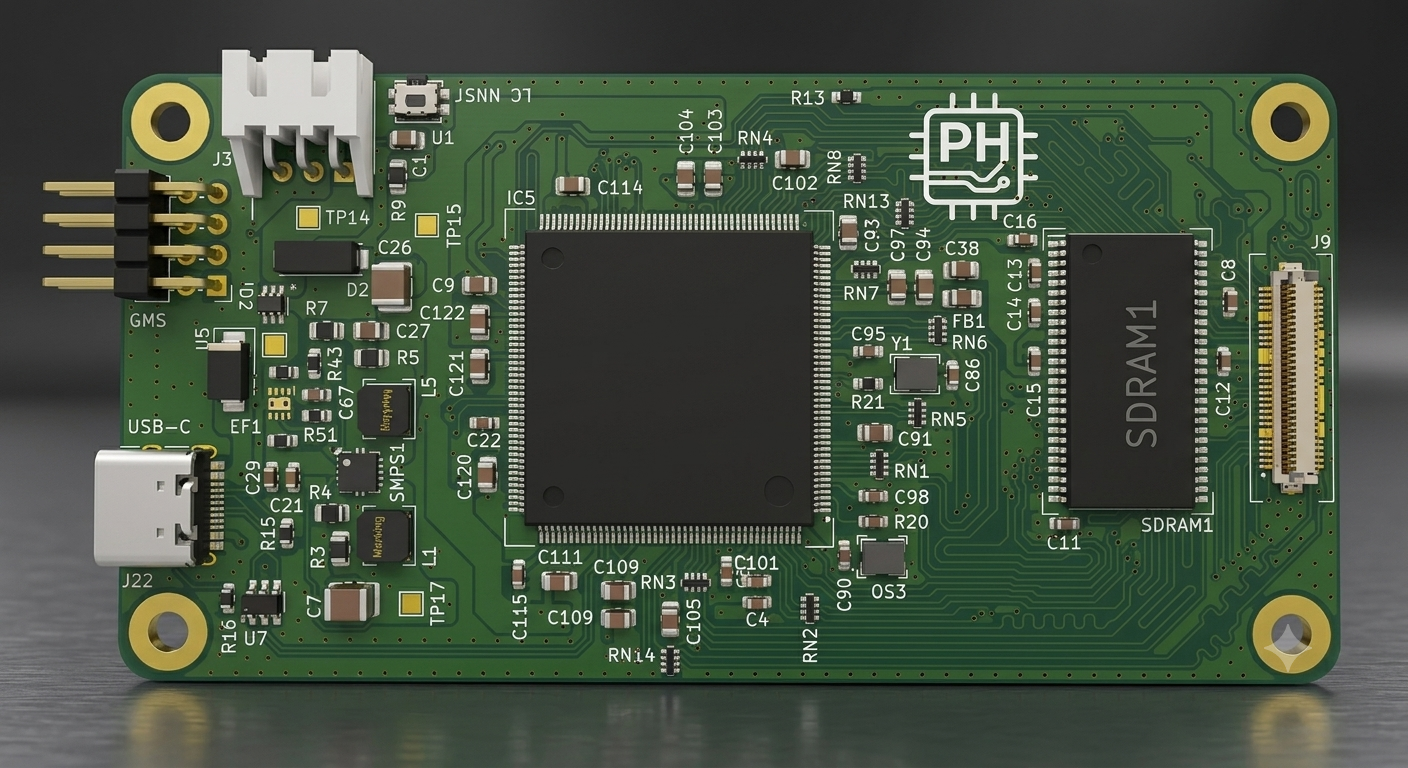

STM32H7 Board, from the project README
From the project README

Main components on the STM32H7 Board

MT29F1G08ABAEAWP-IT:E TRSTM32H7S3I8T6SN74LVC1G07DBVRUSBLC6-2SC6

STM32H7 Board bill of materials (BOM)

102 components, 46 distinct parts.

QtyPartRefs
1
MT29F1G08ABAEAWP-IT:E TR
NAND_MX30LF1G18AC-TI
IC1
1
STM32H7S3I8T6
STM32H7S3I8T6 LQFP 176
IC5
1
~
U1
1
SN74LVC1G07DBVR
U4
1
USBLC6-2SC6
U7
1
ASE-50.000MHZ-L-R-T
ECS-3225SMVQ-240-DS-TR
Y1
1
TSX-3225 26.0000MF09Z-AC0
Y2
2
BTB_10132798-062100LF
J1, J9
1
SWDB
J3
1
USB_C_Receptacle_USB2.0_16P
J22
1
Clock_Gen_SI5351A-B-GT
CG1
1
EFUSE_TPS259531DSGR
EF1
1
ID_LM66100DCKR
ID2
1
S3B-XH-A-1(LF)(SN)
JST_S3B-XH-2.54
JST2
1
ECS-327MVATX-3-CN-TR
Oscillator_ECS-327MVATX-3-CN-TR
OS3
1
IS42S16320F-6TL
SDRAM_AS4C32M8SA-7TCN
SDRAM1
1
SMPS_TPS62420DRCTG4
SMPS1
1
SMAJ6.0A
D2
1
SS34-E3/57T
D5
1
BLM21PG601SN1D_0805
FB1
Show 26 more
QtyPartRefs
1
2u2 NR4020S2R2MT
L1
1
3u3 CPN4020H3R3MT
L5
1
1uF
C1
18
100n
C4, C5, C6, C8, C11, C12, C13, C14 +10
2
22u
C7, C26
3
4u7
C9, C88, C104
2
10u
C21, C29
2
4u7
C22, C57
1
33p
C27
13
100n
C35, C91, C93, C97, C102, C103, C105, C108 +5
1
3n3
C67
2
10n
C86, C90
2
1u
C94, C111
3
180k
R3, R4, R7
1
806k
R5
1
10k
R9
1
4k7
R13
2
5k1
R15, R16
2
10k
R17, R18
2
22R
R19, R22
1
22R
R20
1
51R
R21
2
1M
R38, R52
1
383k
R43
1
487R
R51
14
33R
RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 +6

STM32H7 Board design files

The KiCad project lives in the phancak/STM32H7_Board repository on GitHub; these links point at the commit this page was built from.

STM32H7 Board: common questions

What microcontroller does the STM32H7 Board use?

The STM32H7 Board is built around the STM32H7S3I8T6, from the STM32 family.

How big is the STM32H7 Board?

The STM32H7 Board measures 100 × 50 mm, has 4 copper layers and is 1.5842 mm thick.

How many components are on the STM32H7 Board?

102 components, from 46 distinct parts. The full bill of materials is listed on this page.

Where can I download the STM32H7 Board design files?

From the phancak/STM32H7_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the STM32H7 Board design in my own project?

Yes, under the terms of its MIT license, which phancak chose for the repository.
