About the AMBE3003USB PCB

AMBE3003USB is an open source PCB design by phl0, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 95 × 85 mm, with 81 components from 37 distinct parts.

Other key parts include the AMBE3003, TPS75005RGW_wPin21 and FT232RL. By type, the board carries 30 resistors, 29 capacitors, 12 connectors, 3 ICs, 3 diodes and 1 transistor.

It belongs with the usb & debug tools designs in this gallery.

From the project

AMBE 3003 USB PCB

This is a homebrew evaluation board for AMBE-3000 and AMBE-3003 Chips. It can be used as a replacement for USB-3003 devices to work as a transcoder for XLX reflectors. This board is supported by the AMBEd daemon from version 1.2 onwards.

This is the initial version. Apparently it has two errors: The power supply is faulty due to R42 being to small in value. Bypassing the resistor works basically. The 1v9 rail draws to much power resulting in U5 running hot. The second issue is that this revision does not support hardware reset of the AMBE-3003 CPU. Soft reset does not work 100% reliably. In…

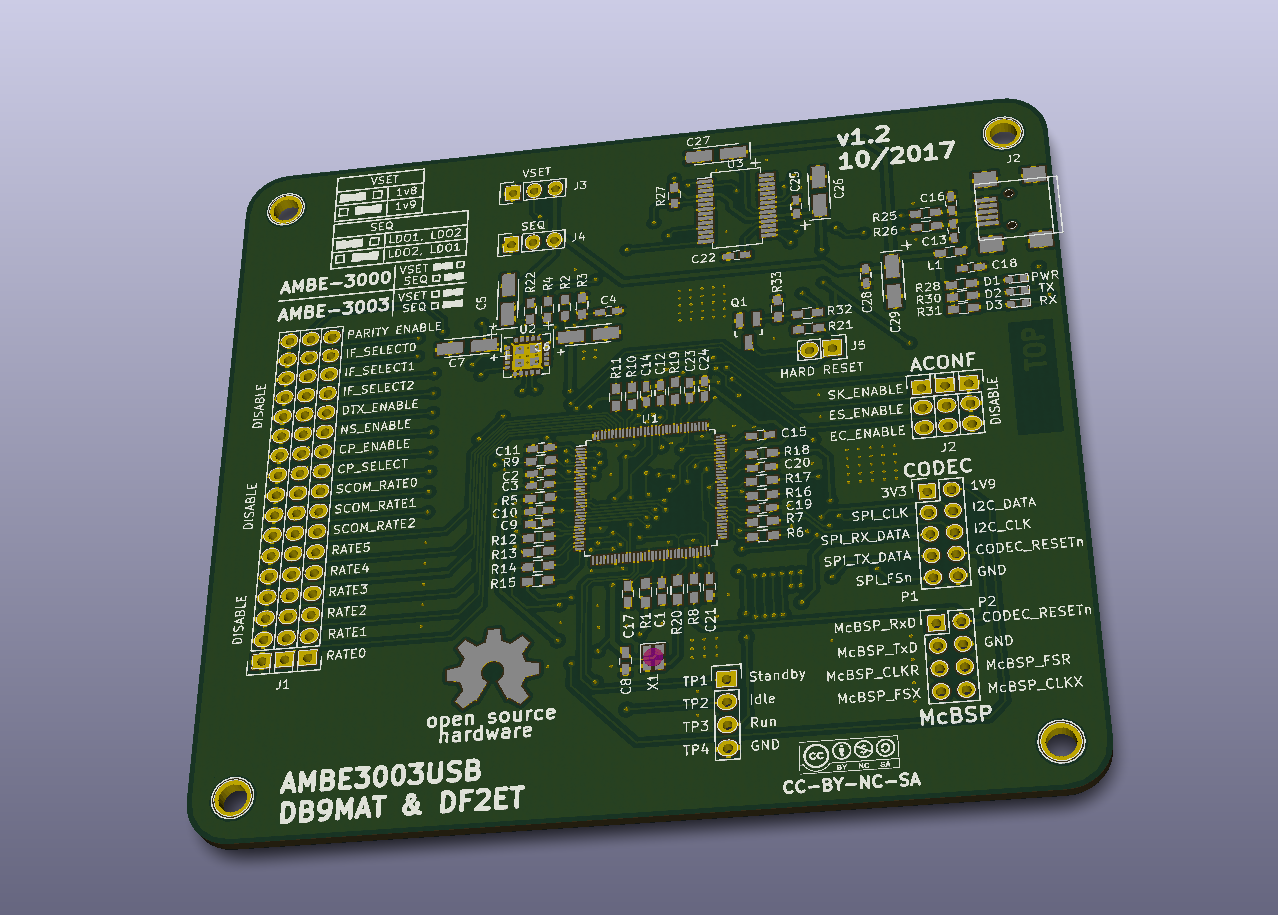

AMBE3003USB, from the project README
From the project README

Main components on the AMBE3003USB

AMBE3003TPS75005RGW_wPin21FT232RL

AMBE3003USB bill of materials (BOM)

81 components, 37 distinct parts.

QtyPartRefs
1
AMBE3003
U1
1
TPS75005RGW_wPin21
U2
1
FT232RL
U3
1
BC847
Q1
1
29.4912
X1
1
McBSP
J1
1
USB_OTG
J2
1
CODEC
J4
1
GND
P1
1
Config
P2
1
3v3
P3
1
VSET
P4
1
HARD RESET
P5
1
SEQ
P6
1
3v3
P7
1
ACONF
P8
1
GND
P9
1
Testpoints
TP1
1
green
D1
1
yellow
D2
Show 17 more
QtyPartRefs
1
red
D3
1
100MHz
L1
4
10n
C1, C4, C8, C18
2
10u
C2, C3
3
10u
C5, C6, C7
15
100n
C9, C10, C11, C12, C14, C15, C17, C19 +7
2
47p
C13, C16
2
1u
C26, C27
1
4u7
C29
2
5.1
R1, R20
1
3k74
R2
4
10k
R3, R21, R22, R33
3
24k
R4, R5, R27
14
0R
R6, R7, R8, R9, R10, R11, R12, R13 +6
2
27
R25, R26
3
270
R28, R30, R31
1
1k
R32

AMBE3003USB design files

The KiCad project lives in the phl0/AMBE3003USB repository on GitHub; these links point at the commit this page was built from.

AMBE3003USB: common questions

How big is the AMBE3003USB PCB?

The AMBE3003USB measures 95 × 85 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AMBE3003USB?

81 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the AMBE3003USB design files?

From the phl0/AMBE3003USB repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the AMBE3003USB design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
