About the Enter Title On Page Setting Dialog PCB
Enter Title On Page Setting Dialog is an open source PCB design by PickledDog, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 102.6 × 66 mm, with 42 components from 25 distinct parts.
Other key parts include the P8X32A-D40, 24LC256, MCP1700-330 and 74HC08. By type, the board carries 19 resistors, 8 capacitors, 6 connectors, 4 ICs, 2 switches and 1 crystal.
It belongs with the usb & debug tools designs in this gallery.
From the project

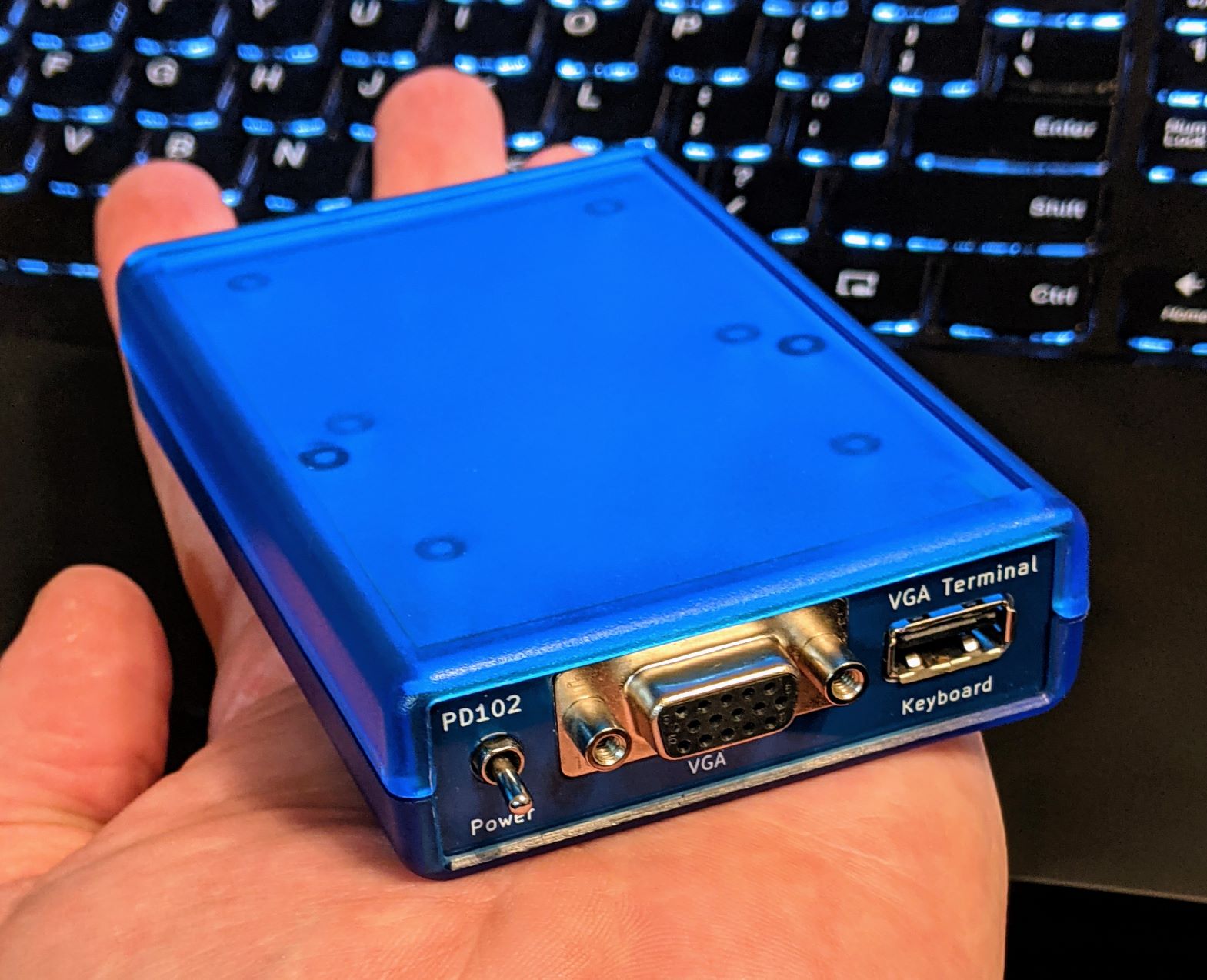

Marco Maccaferri's Propeller VT100 Terminal, in a box
The other headers can be snapped from regular breakaway header, for which eBay is substantially cheaper; the Mouser listings are provided for convenience. The specified parts are just the ones I used, and can be substituted as needed - Mouser links provided for convenience and reference. The case is available in other colours!

Main components on the Enter Title On Page Setting Dialog
Enter Title On Page Setting Dialog bill of materials (BOM)
42 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | P8X32A-D40 | DIP-40_W15.24mm_LongPads | U1 |
| 1 | 24LC256 | DIP-8_W7.62mm_LongPads | U2 |
| 1 | MCP1700-330 MCP1700-3302E_TO92 | TO-92 | U3 |
| 1 | 74HC08 | DIP-14_W7.62mm_LongPads | U4 |
| 1 | 5MHz | Crystal_HC49-U_Vertical | X1 |
| 1 | 5V In | BarrelJack_Horizontal | J1 |
| 1 | Prop-Plug | PinHeader_1x04_P2.54mm_Vertical | J2 |
| 1 | To Computer | PinHeader_1x06_P2.54mm_Vertical | J3 |
| 1 | Passthru In | PinHeader_1x06_P2.54mm_Vertical | J4 |
| 1 | USB | USB_A_CONNFLY_DS1095-WNR0 | J5 |
| 1 | VGA | DSUB-15-HD_Female_Horizontal_P2.29x2.54mm_Housed | J6 |
| 1 | Speaker_Crystal | Buzzer_TDK_PS1240P02BT_D12.2mm_H6.5mm | BZ1 |
| 1 | J3 5V | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | Power | SW_Toggle_SPDT_Vertical | SW1 |
| 1 | Reset | SW_Tactile_SPST_Angled_PTS645Vx83-2LFS | SW2 |
| 2 | 1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C1, C2 |
| 5 | 0.1uF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C3, C4, C5, C6, C7 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.00mm | C8 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R4 |
| 2 | 4k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 47k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5, R8 |
| 2 | 47R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6, R7 |
| 3 | 261R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R12, R15 |
| 3 | 510R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R10, R13, R16 |
| 5 | 120R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11, R14, R17, R18, R19 |
Enter Title On Page Setting Dialog design files
The KiCad project lives in the PickledDog/vgavt1593 repository on GitHub; these links point at the commit this page was built from.
- Layoutvgavt1593.kicad_pcb
- BOMREADME.md
Enter Title On Page Setting Dialog: common questions
How big is the Enter Title On Page Setting Dialog PCB?
The Enter Title On Page Setting Dialog measures 102.6 × 66 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Enter Title On Page Setting Dialog?
42 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Enter Title On Page Setting Dialog design files?
From the PickledDog/vgavt1593 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Enter Title On Page Setting Dialog design in my own project?
Yes, under the terms of its Apache-2.0 license, which PickledDog chose for the repository.
