Condicionamento e aquisicao 2 canais
About the Condicionamento e aquisicao 2 canais PCB
Condicionamento e aquisicao 2 canais is an open source PCB design by Pinheirogustavo, published on GitHub. It is a 2-layer board measuring 90 × 100 mm, with 33 components from 25 distinct parts.
Other key parts include the AD828AN, CD4066BE and BluePill_STM32F103C. By type, the board carries 10 resistors, 7 connectors, 4 diodes, 4 inductors, 4 capacitors and 3 ICs.
From the project

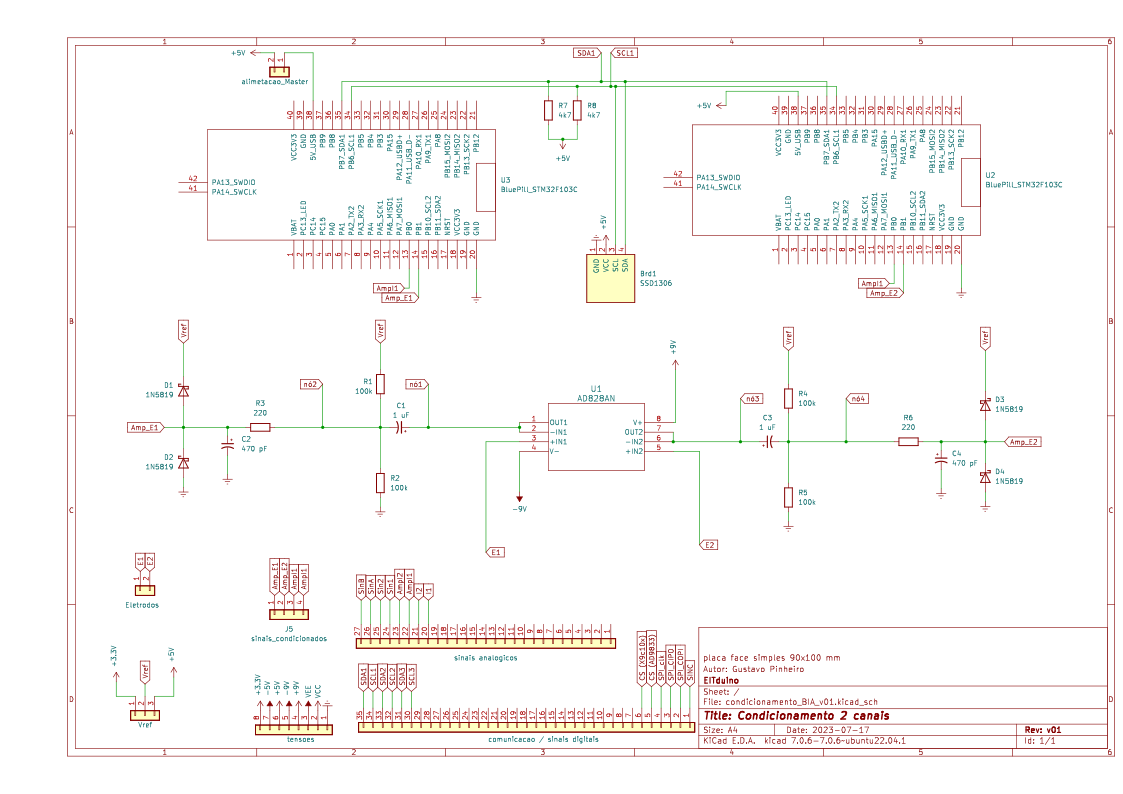

Sistema projetado para permitir a aquisição de sinais por meio dos dois ADCs presentes em cada microcontrolador STM32.
Sistema projetado para permitir a aquisição de sinais por meio dos dois ADCs presentes em cada microcontrolador STM32.
Estágios: Sinais a serem condicionados → buffer → offset (valor médio do limite de entrada do ADC) → diodos de proteção ( limites de entrada do ADC) → Filtro anti-aliasing → sinal condicionado → ADC@STM32
- AmplI1: Tensão de saída já condicionada do INA que monitora a corrente I1 - AmpE1: Tensão medida pelo eletrodo proximal do pé/mão - AmpE2: Tensão medida pelo eletrodo proximal do pé/mão
Main components on the Condicionamento e aquisicao 2 canais
Condicionamento e aquisicao 2 canais bill of materials (BOM)
33 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AD828AN | AD828 | U1-Cond1 |
| 1 | CD4066BE BluePill_STM32F103C | BluePill_STM32F103C | U2 |
| 1 | BluePill_STM32F103C | BluePill_STM32F103C | U3 |
| 1 | CONN_02X09_TOP_BOTTOM alimentacao analogica | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | sinais analogicos | PinHeader_1x27_P2.54mm_Vertical | J2 |
| 1 | comunicacao / sinais digitais | PinHeader_1x35_P2.54mm_Vertical | J3 |
| 1 | +3.3V | +5.0V | PinHeader_1x03_P2.54mm_Vertical | J4 |
| 1 | sinais_condicionados | PinHeader_1x04_P2.54mm_Horizontal | J5 |
| 1 | Eletrodos | PinHeader_1x02_P2.54mm_Horizontal | J6 |
| 1 | on_uCMaster | PinHeader_1x02_P2.54mm_Vertical | J7 |
| 1 | SSD1306 | 128x64OLED | display1 |
| 4 | 1N5819 | D_DO-41_SOD81_P10.16mm_Horizontal | D1, D2, D3, D4 |
| 1 | LED - Yelow | LED_D5.0mm | L+3.3v1 |
| 1 | LED - Green | LED_D5.0mm | L+5v1 |
| 1 | LED - Blue | LED_D5.0mm | L+9v1 |
| 1 | LED - Red | LED_D5.0mm | L-9v1 |
| 2 | 1 uF | CP_Radial_D5.0mm_P2.50mm | C1, C3 |
| 2 | 470 pF | CP_Radial_D5.0mm_P2.50mm | C2, C4 |
| 1 | 220 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 3 | 100K 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R4, R5 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100K 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R3 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
| 2 | 1.5k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R9, R10 |
| 1 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R11 |
| 1 | 510 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R12 |
Condicionamento e aquisicao 2 canais design files
The KiCad project lives in the Pinheirogustavo/PCB_projects repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCadProjects/Condicionamento/condicionamento_Aquisicao_BIA_v03/condicionamento_BIA_v03.kicad_pcb
- SchematicKiCadProjects/Condicionamento/condicionamento_Aquisicao_BIA_v03/condicionamento_BIA_v03.kicad_sch
- BOMKiCadProjects/Condicionamento/Compact_signal_conditioner_V03/Compact_signal_conditioner_V03a/BOM_Compact_signal_conditioner_V03a.csv
Condicionamento e aquisicao 2 canais: common questions
How big is the Condicionamento e aquisicao 2 canais PCB?
The Condicionamento e aquisicao 2 canais measures 90 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Condicionamento e aquisicao 2 canais?
33 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Condicionamento e aquisicao 2 canais design files?
From the Pinheirogustavo/PCB_projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Condicionamento e aquisicao 2 canais design in my own project?
The repository has no license, so all rights stay with Pinheirogustavo. Use it as a reference, and ask the author before reusing the design.
