About the Fonte tensao LM675 v05b PCB

Fonte tensao LM675 v05b is an open source PCB design by Pinheirogustavo, published on GitHub. It is a 2-layer board measuring 90 × 100 mm, with 40 components from 30 distinct parts.

Other key parts include the CD4066BE, LM675, L7805, L7905 and LM1117T-3.3. By type, the board carries 13 capacitors, 7 ICs, 7 resistors, 5 diodes, 3 connectors and 2 LEDs.

From the project

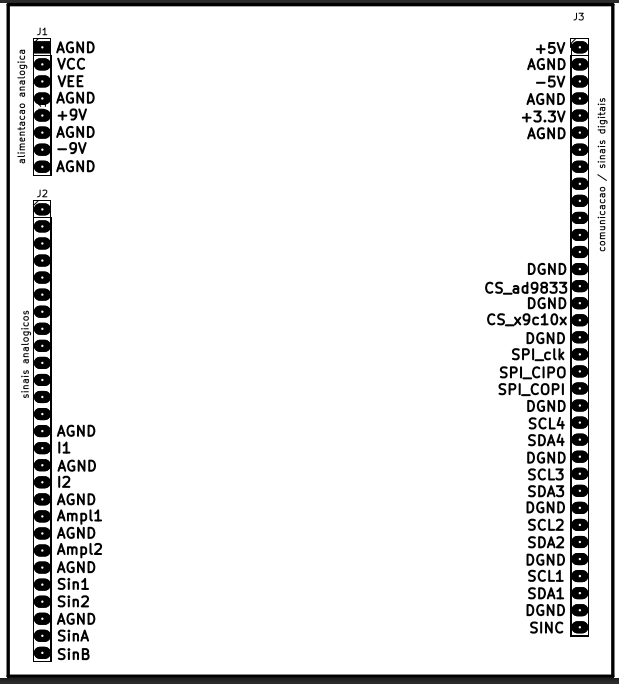

- Diversos pontos de terras, separados em terras dos sinais analógicos (AGND) e terras dos sinais digitais (DGND). - As alimentações dos circuitos analógicos foram separadas das alimentações dos circuitos digitais.

Main components on the Fonte tensao LM675 v05b

CD4066BE LM675 L7805 L7905 LM1117T-3.3 LM2596-5

Fonte tensao LM675 v05b bill of materials (BOM)

40 components, 30 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	CD4066BE L7809	TO-220-3_Vertical	U1
1	CD4066BE LM7909_TO220	TO-220-3_Vertical	U2
1	LM675	TO-220-5_P3.4x3.7mm_StaggerOdd_Lead3.8mm_Vertical	U3
1	L7805	TO-220-3_Vertical	U4
1	L7905	TO-220-3_Vertical	U5
1	LM1117T-3.3	TO-220-3_Vertical	U6
1	LM2596-5	TO-220-5_P3.4x3.7mm_StaggerOdd_Lead3.8mm_Vertical	U7
1	CONN_02X09_TOP_BOTTOM alimentacao analogica	PinHeader_1x08_P2.54mm_Vertical	J1
1	sinais analogicos	PinHeader_1x27_P2.54mm_Vertical	J2
1	comunicacao / sinais digitais	PinHeader_1x35_P2.54mm_Vertical	J3
1	Vin	chave gangorra 2 pinos	I/0
1	Vin	BarrelJack_GCT_DCJ200-10-A_Horizontal	Vin1
2	LED	LED_D5.0mm	green1, red1
4	1N5819	D_DO-41_SOD81_P10.16mm_Horizontal	D1, D2, D3, D4
1	1N5819	D_DO-41_SOD81_P10.16mm_Horizontal	D5
1	33u	L_7.3x7.3_H4.5	L1
4	1uF	CP_Radial_Tantal_D4.5mm_P2.50mm	C1, C4, C7, C10
2	2.2uF	CP_Radial_Tantal_D4.5mm_P2.50mm	C2, C11
2	100 nF	C_Disc_D3.0mm_W1.6mm_P2.50mm	C3, C12
1	220nF	C_Disc_D3.0mm_W1.6mm_P2.50mm	C5

Show 10 more

Qty	Part	Footprint	Refs
1	220u	CP_Radial_D5.0mm_P2.50mm	C6
1	10uF	CP_Radial_Tantal_D4.5mm_P2.50mm	C8
1	33uF	CP_Radial_Tantal_D4.5mm_P2.50mm	C9
1	680u	CP_Radial_D5.0mm_P2.50mm	C13
1	220 1k2	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R1
1	100K 510	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R2
2	100K 22k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R3, R4
1	100K 1k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R5
1	15k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R6
1	1	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R7
