PepuinoPad PCB layout, top view — open source RP2040/RP2350 board by pipejosh

About the PepuinoPad PCB

PepuinoPad is an open source RP2040/RP2350 PCB design by pipejosh, published on GitHub. It is a 2-layer board measuring 203 × 176 mm, with 243 components from 5 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. By type, the board carries 161 diodes, 81 switches and 1 IC.

From the project

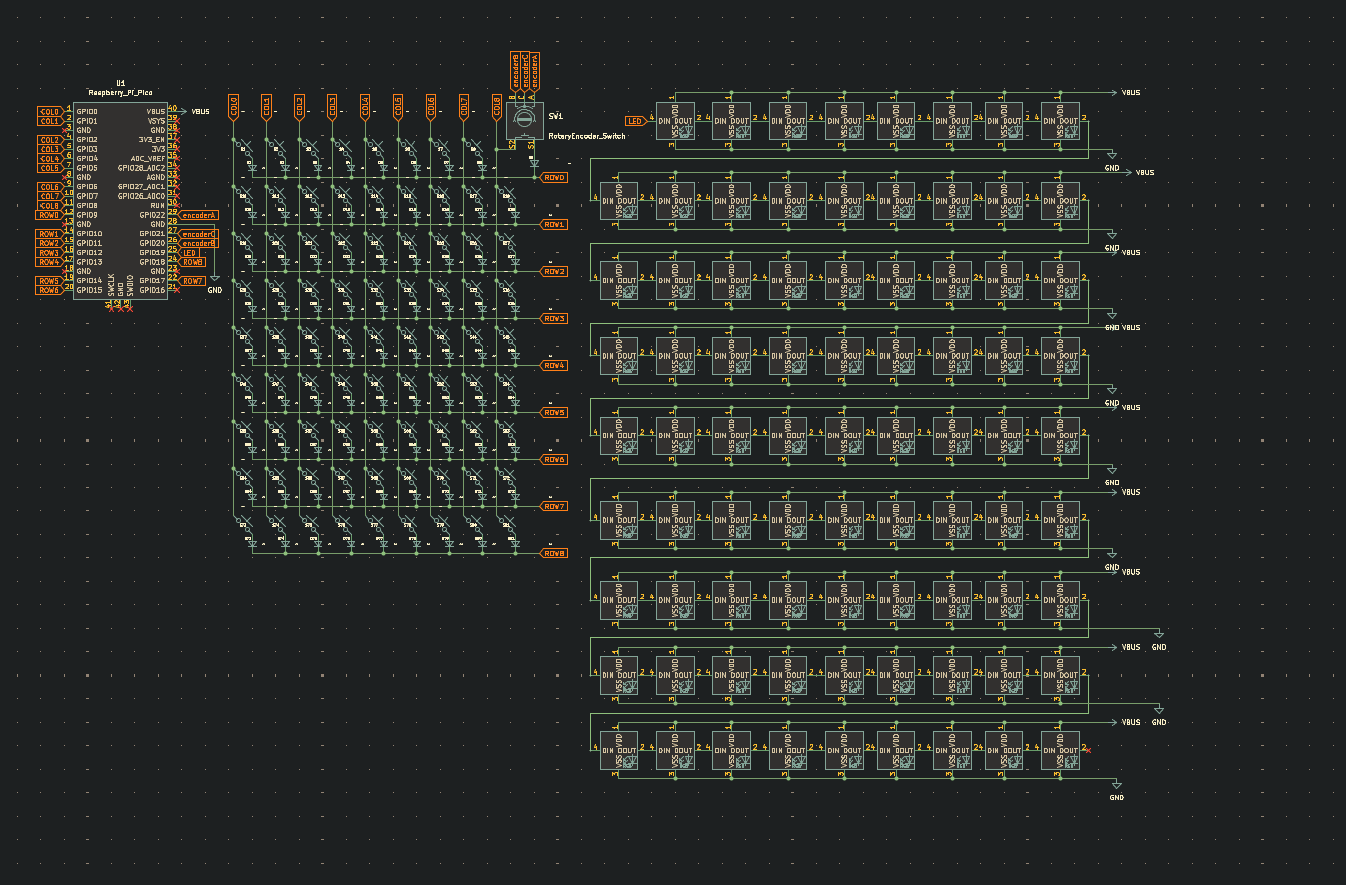

This is the pepuino pad, a 9 by 9 midi launchpad, with per key rgb illumination (the brightness can only be set to 30% ish) the pepuino pad is a midi compatible launchpad to make music, this project, the shematics and the pcb are made in kicad, and the case and render are made in

This is the pepuino pad, a 9 by 9 midi launchpad, with per key rgb illumination (the brightness can only be set to 30% ish) the pepuino pad is a midi compatible launchpad to make music, this project, the shematics and the pcb are made in kicad, and the case and render are made in fusion 360 and it uses the custom made pepuino nano V1 as the main microcontroler (microcontroller based on a rp2040 chip)

PepuinoPad, from the project README
From the project README

Main components on the PepuinoPad

Raspberry_Pi_Pico

PepuinoPad bill of materials (BOM)

243 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Raspberry_Pi_Pico
U1
80
~
S1, S2, S3, S4, S5, S6, S7, S8 +72
1
RotaryEncoder_Switch
SW1
81
~
D1, D2, D3, D4, D5, D6, D7, D8 +73
80
LED_SK6812MINI
D83, D84, D85, D86, D87, D88, D89, D90 +72

PepuinoPad design files

The KiCad project lives in the pipejosh/pepuinoPad repository on GitHub; these links point at the commit this page was built from.

PepuinoPad: common questions

What microcontroller does the PepuinoPad use?

The PepuinoPad is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the PepuinoPad PCB?

The PepuinoPad measures 203 × 176 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PepuinoPad?

243 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PepuinoPad design files?

From the pipejosh/pepuinoPad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PepuinoPad design in my own project?

The repository has no license, so all rights stay with pipejosh. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the PepuinoPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
