Sten0
pizzalover125·sten0·PCB/sten0.kicad_sch

About the Sten0 PCB
Sten0 is an open source RP2040/RP2350 PCB design by pizzalover125, published on GitHub. It is a board, with 61 components from 3 distinct parts.
Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 30 switches, 30 diodes and 1 module.
It belongs with the keyboards designs in this gallery.
From the project

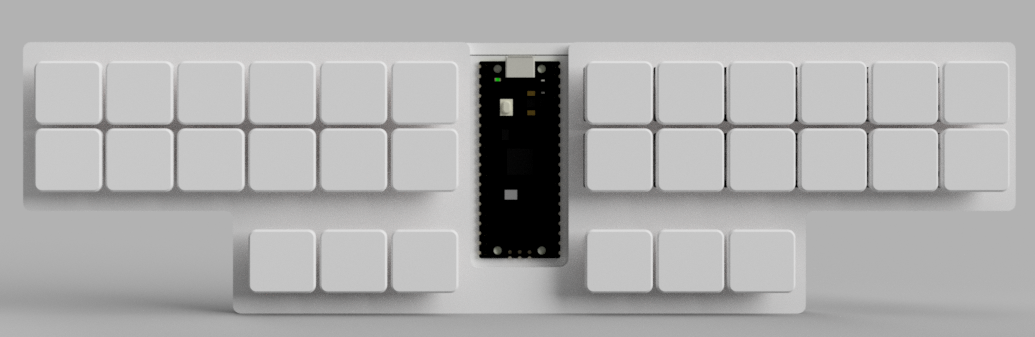

sten0 is a minimalist stenography keyboard. it was meant to defeat the industry standard Uni v4 which is overpriced and unsymmetrical. it uses a 2-layer PCB and KMK firmware that converts to stenography with the industry-standard Plover firmware.
sten0 is a minimalist stenography keyboard. it was meant to defeat the industry standard Uni v4 which is overpriced and unsymmetrical. it uses a 2-layer PCB and KMK firmware that converts to stenography with the industry-standard Plover firmware.
steno works by pressing multiple keys at once to create "chords" which create words. each key is associated with a specific sound. for example, to write "cat" press "K A T" all at once.
Main components on the Sten0
Sten0 bill of materials (BOM)
61 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RaspberryPi_Pico | RaspberryPi_Pico_Common_Unspecified | A1 |
| 30 | SW_Push | SW_PG1350 | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +22 |
| 30 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +22 |
Sten0 design files
The KiCad project lives in the pizzalover125/sten0 repository on GitHub; these links point at the commit this page was built from.
- SchematicPCB/sten0.kicad_sch
- BOMPCB/production/bom.csv
Sten0: common questions
What microcontroller does the Sten0 use?
The Sten0 is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.
How many components are on the Sten0?
61 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sten0 design files?
From the pizzalover125/sten0 repository on GitHub, which has the schematic and the BOM; the links under Design files point to each one.
Can I use the Sten0 design in my own project?
The repository has no license, so all rights stay with pizzalover125. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Sten0 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
