Controls

Pl0p·Modular_Synth·Drum-K_MKII/Kicad/Controls.kicad_pcb

Controls PCB layout, top view — open source board by Pl0p
Simulate this board

About the Controls PCB

Controls is an open source PCB design by Pl0p, published on GitHub. It is a 2-layer board measuring 55.6 × 105.5 mm, with 13 components from 13 distinct parts.

By type, the board carries 6 connectors, 1 switch and 1 diode.

It belongs with the audio designs in this gallery.

From the project

- Transient shape - Decay - Tune - Tone - Distortion

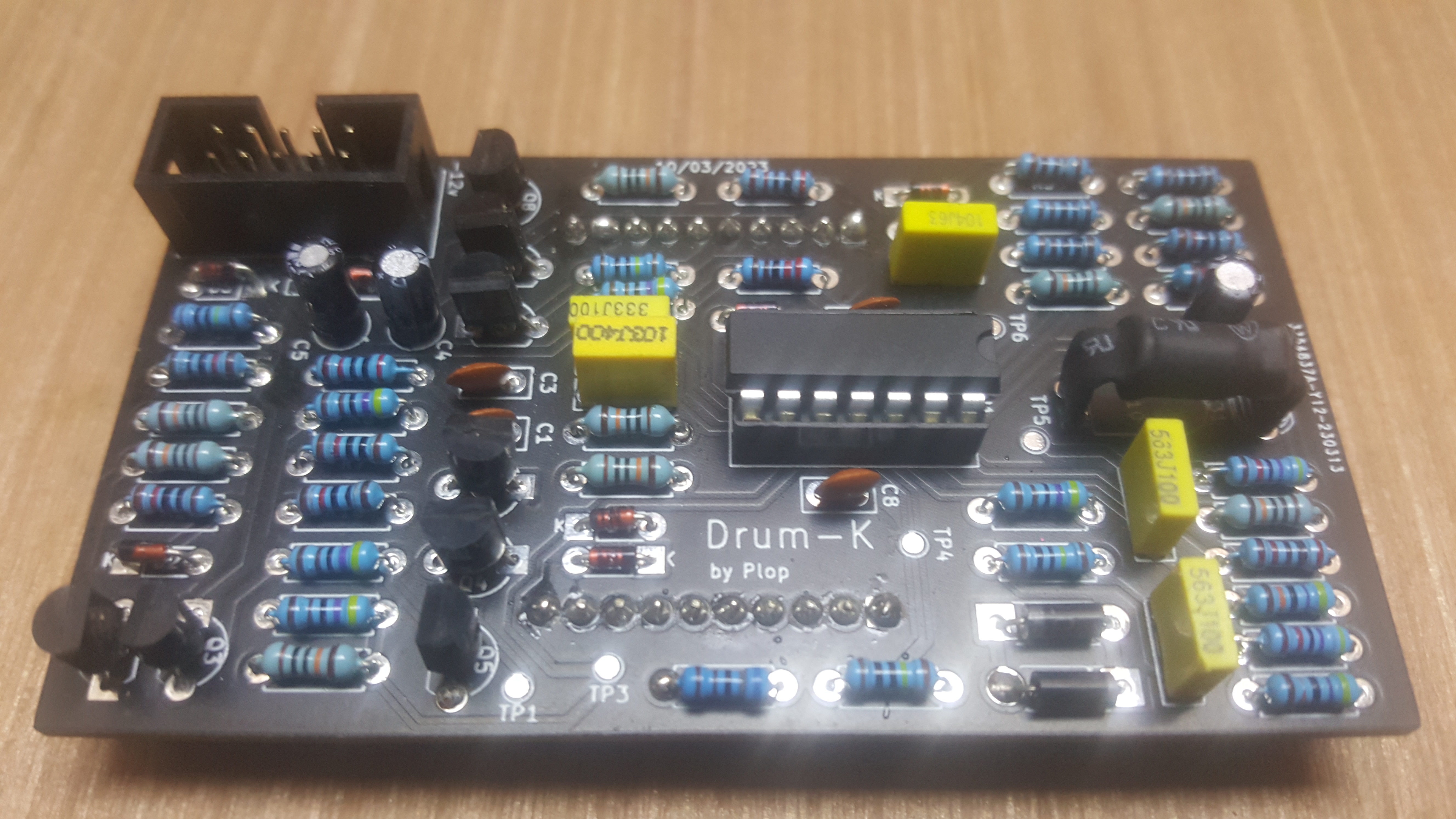

Controls, from the project README
From the project README

Controls bill of materials (BOM)

13 components, 13 distinct parts.

QtyPartRefs
1
Conn_Left
J1
1
Conn_Right
J2
1
Accent
J3
1
Trig
J4
1
CV
J5
1
OUT
J6
1
B10k Tone
RV1
1
B100k Disto
RV2
1
B10k Level
RV3
1
B50k Tune
RV4
1
B100k Decay
RV5
1
SW_Transient
SW1
1
Red
D1

Controls design files

The KiCad project lives in the Pl0p/Modular_Synth repository on GitHub; these links point at the commit this page was built from.

Controls: common questions

How big is the Controls PCB?

The Controls measures 55.6 × 105.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Controls?

13 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Controls design files?

From the Pl0p/Modular_Synth repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Controls design in my own project?

The repository has no license, so all rights stay with Pl0p. Use it as a reference, and ask the author before reusing the design.
