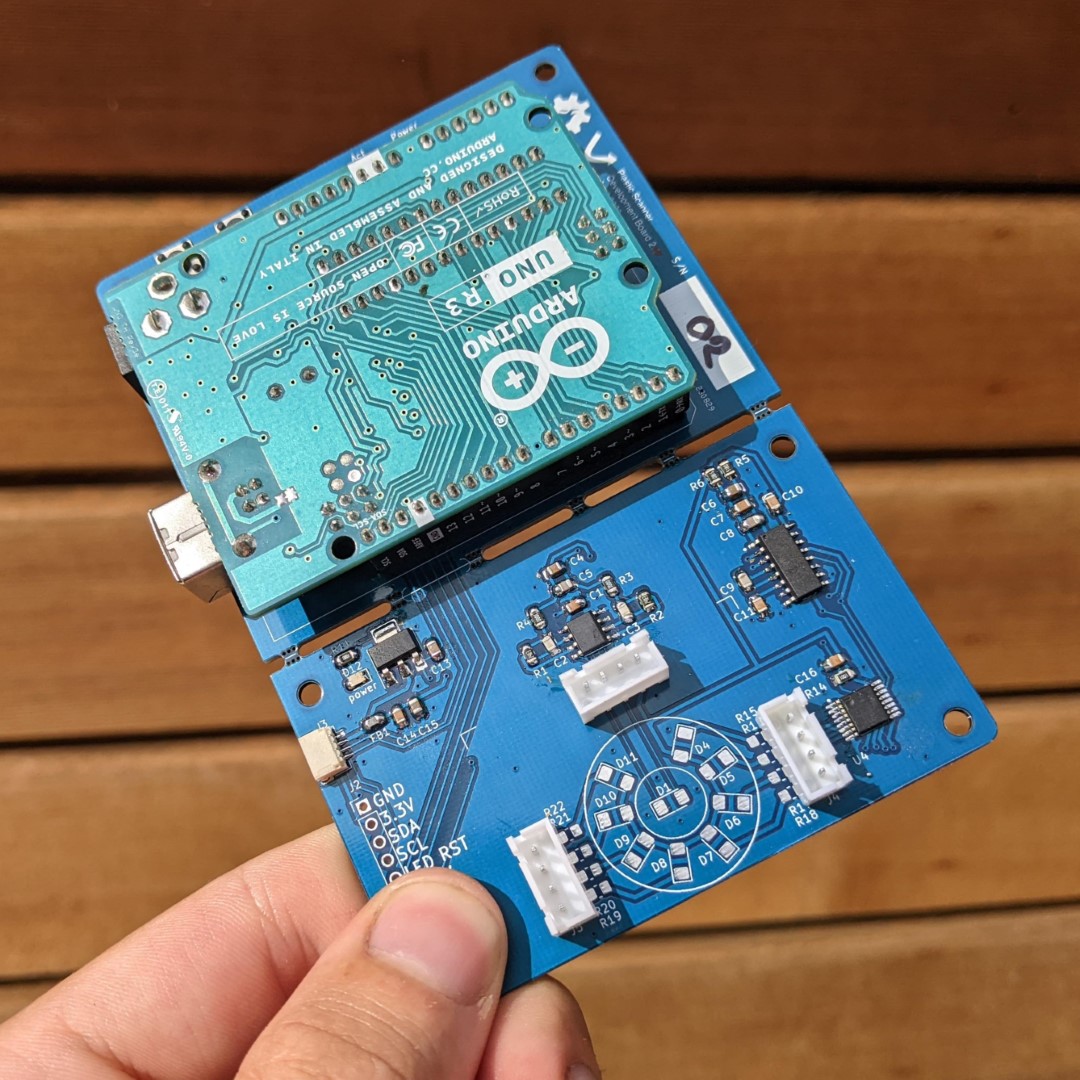

About the DB2.x-Hardware PCB
DB2.x-Hardware is an open source PCB design by Plastic-Scanner, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 40 × 40 mm, with 49 components from 29 distinct parts.
Other key parts include the OPA2376AID, NAU7802SGI, TLC59208FIPWR and LP5951MFX-1.8_NOPB. By type, the board carries 15 resistors, 14 capacitors, 10 diodes, 5 connectors, 4 ICs and 1 inductor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
Hardware files for the DB2.X (development board) of the Plastic Scanner project
Hi and welcome to the hardware package of the Development Board 2.x this repository is meant to host files and have releases.
Learn more about the development board by visiting our documentation page.
Main components on the DB2.x-Hardware
DB2.x-Hardware bill of materials (BOM)
49 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OPA2376AID | SOIC127P599X175-8N | U1 |
| 1 | NAU7802SGI | Nuvoton-NAU7802SGI-0-0-0 | U2 |
| 1 | TLC59208FIPWR | Texas_Instruments-TLC59208FIPWR-Level_A | U3 |
| 1 | LP5951MFX-1.8_NOPB | SOT95P280X145-5N | U4 |
| 4 | Conn_01x04 | PinSocket_1x04_P2.54mm_Vertical | J1, J3, J4, J5 |
| 1 | Qwiic | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J2 |
| 1 | 0090-3111-185 | D_A-405_P2.54mm_Vertical_KathodeUp | D1 |
| 1 | LED RED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | 940nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D3 |
| 1 | 1050nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D4 |
| 1 | 1200nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D5 |
| 1 | 1300nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D6 |
| 1 | 1460nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D7 |
| 1 | 1550nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D8 |
| 1 | 1650nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D9 |
| 1 | 1720nm | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D10 |
| 1 | FerriteBead | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | FB1 |
| 4 | 0.1u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C7, C10, C11 |
| 2 | 51p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2, C3 |
| 1 | 47n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 100p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C5, C8 |
| 2 | 22u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C13 |
| 1 | 330p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C9 |
| 2 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C12, C14 |
| 2 | 240k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
| 2 | 300 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4 |
| 2 | 51 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R6 |
| 1 | 100 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R7 |
| 8 | 47 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R8, R9, R10, R11, R12, R13, R14, R15 |
DB2.x-Hardware design files
The KiCad project lives in the Plastic-Scanner/DB2.x-Hardware repository on GitHub; these links point at the commit this page was built from.
DB2.x-Hardware: common questions
How big is the DB2.x-Hardware PCB?
The DB2.x-Hardware measures 40 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DB2.x-Hardware?
49 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the DB2.x-Hardware design files?
From the Plastic-Scanner/DB2.x-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the DB2.x-Hardware design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which Plastic-Scanner chose for the repository.
