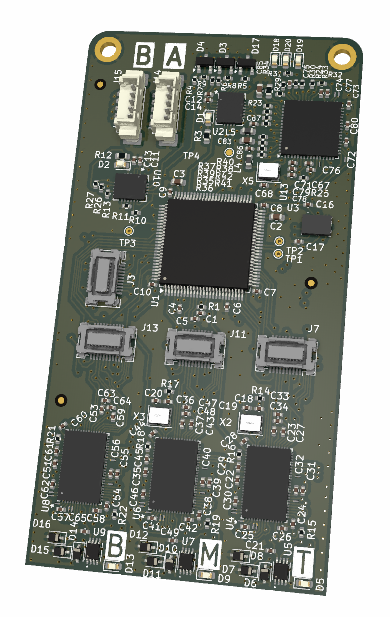

About the Elec Poulpe 3d PCB
Elec Poulpe 3d is an open source STM32 PCB design by pollen-robotics, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 45 × 86.6 mm, with 211 components from 46 distinct parts.
Its main chip is the STM32H742/3VxTx, from the STM32 family. Other key parts include the LTC4332CUFD-PBF, BMI088, TMC4671, 74LVC3G17 and LTC4331CUFD-PBF. By type, the board carries 86 capacitors, 45 resistors, 25 test points, 22 diodes, 12 ICs and 12 connectors.
From the project
Tripple Motor Control Board for Reachy 2
"Poulpe3d" is build from "Poulpe" as it aims on driving Orbita 3 Dofs. It is paireds with boards "Ventouse3d" that drive 3 small BLDC Motors.

Main components on the Elec Poulpe 3d
Elec Poulpe 3d bill of materials (BOM)
211 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32H742/3VxTx | LQFP-100_14x14mm_P0.5mm | U1 |
| 1 | LTC4332CUFD-PBF | LPQFN20_ADI | U2 |
| 1 | BMI088 | BMI088 | U3 |
| 3 | TMC4671 | QFN76_11P5X6P5_TRI | U4, U6, U8 |
| 3 | 74LVC3G17 | VSSOP-8_2.4x2.1mm_P0.5mm | U5, U7, U9 |
| 1 | LTC4331CUFD-PBF | LPQFN20_ADI | U10 |
| 1 | 24LC32 | SOIC-8_3.9x4.9mm_P1.27mm | U12 |
| 1 | LAN9252 | QFN-64-1EP_9x9mm_P0.5mm_EP6x6mm | U13 |
| 4 | 25MHz | Abracon_ASE-4Pin_3.2x2.5mm | X2, X3, X4, X5 |
| 1 | Pico8 | Molex_PicoBlade_53261-0871_1x08-1MP_P1.25mm_Horizontal | J1 |
| 1 | Pico6 | Molex_PicoBlade_53261-0671_1x06-1MP_P1.25mm_Horizontal | J2 |
| 4 | SlimStack Receptacle | Molex_SlimStack_529910208 | J3, J7, J11, J13 |
| 1 | Trinamic_RTMI | DF20EF-10DP-1V (52) | J4 |
| 3 | Pico5 | Molex_PicoBlade_53261-0571_1x05-1MP_P1.25mm_Horizontal | J9, J10, J12 |
| 2 | Pico5 | Molex_PicoBlade_53398-0571_1x05-1MP_P1.25mm_Vertical | J14, J15 |
| 25 | TestPoint_Flag | TestPoint_Line_0.2x0.8mm | TP6, TP7, TP8, TP9, TP10, TP11, TP12, TP13 +17 |
| 1 | PT61020EL | Bourns_PT61020EL | TR1 |
| 7 | Green | LED_0603_1608Metric | D1, D2, D5, D9, D13, D18, D21 |
| 3 | Dual TVS Diode | SOT-23 | D3, D4, D17 |
| 9 | D_Schottky | D_SOD-323 | D6, D7, D8, D10, D11, D12, D14, D15 +1 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Yellow | LED_0603_1608Metric | D19, D20 |
| 1 | Red | LED_0603_1608Metric | D22 |
| 4 | FB | L_0603_1608Metric | L2, L3, L4, L5 |
| 63 | 100n 6V3 | C_0402_1005Metric | C1, C4, C5, C6, C7, C8, C9, C10 +55 |
| 2 | 2.2u 6V3 | C_0603_1608Metric | C2, C3 |
| 2 | 4.7uF 6V3 | C_0402_1005Metric | C11, C12 |
| 2 | 1uF 6V3 | C_0402_1005Metric | C13, C14 |
| 6 | 4.7u 6V3 | C_0402_1005Metric | C32, C33, C40, C47, C56, C63 |
| 3 | 470n 6V3 | C_0402_1005Metric | C34, C48, C64 |
| 3 | 10u 6V3 | C_0402_1005Metric | C76, C77, C78 |
| 1 | 470p 6V3 | C_0402_1005Metric | C79 |
| 2 | 22n 50V | C_0603_1608Metric | C83, C85 |
| 2 | 1000pF 2kV | C_1206_3216Metric | C88, C89 |
| 4 | 100k | R_0402_1005Metric | R1, R14, R17, R20 |
| 8 | 10k | R_0402_1005Metric | R2, R13, R16, R18, R21, R25, R29, R30 |
| 2 | 1K | R_0603_1608Metric | R3, R12 |
| 4 | 620R | R_0402_1005Metric | R4, R6, R7, R8 |
| 2 | 120R | R_0402_1005Metric | R5, R9 |
| 2 | 0R | R_0402_1005Metric | R10, R11 |
| 5 | 470R | R_0402_1005Metric | R15, R19, R22, R28, R45 |
| 3 | 1k | R_0402_1005Metric | R23, R24, R31 |
| 2 | 4k7 | R_0402_1005Metric | R26, R27 |
| 2 | 3k3 | R_0402_1005Metric | R32, R33 |
| 1 | 12.1k - 1% | R_0603_1608Metric | R34 |
| 8 | 49R9 | R_0402_1005Metric | R35, R36, R37, R38, R39, R40, R41, R42 |
| 2 | 75R | R_0402_1005Metric | R43, R44 |
Elec Poulpe 3d design files
The KiCad project lives in the pollen-robotics/elec_Poulpe_3d repository on GitHub; these links point at the commit this page was built from.
Elec Poulpe 3d: common questions
What microcontroller does the Elec Poulpe 3d use?
The Elec Poulpe 3d is built around the STM32H742/3VxTx, from the STM32 family.
How big is the Elec Poulpe 3d PCB?
The Elec Poulpe 3d measures 45 × 86.6 mm, has 4 copper layers and is 1.566 mm thick.
How many components are on the Elec Poulpe 3d?
211 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Elec Poulpe 3d design files?
From the pollen-robotics/elec_Poulpe_3d repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Elec Poulpe 3d design in my own project?
Yes, under the terms of its Apache-2.0 license, which pollen-robotics chose for the repository.
Can I test firmware for the Elec Poulpe 3d without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
