About the Magnum-60 PCB

Magnum-60 is an open source RP2040/RP2350 PCB design by poojithas956, published on GitHub under the MIT license. It is a 2-layer board measuring 291.9 × 101.4 mm, with 132 components from 18 distinct parts.

Its main chip is the RP2040-ZERO, from the RP2040/RP2350 family. By type, the board carries 62 diodes, 61 switches, 2 connectors, 1 IC and 1 resistor.

It belongs with the keyboards designs in this gallery.

From the project

A compact 60% mechanical keyboard designed for minimal desk space.

I use my keyboard for school every day, so I wanted to build one that is actually mine from scratch.

Main goals I set for myself: - Design a full 60% PCB in KiCad (61 keys) - Use hot-swap MX footprints so it is easy to test switches - Keep the design manufacturable and not just a concept render - Learn the full pipeline: schematic -> PCB -> 3D model -> production files

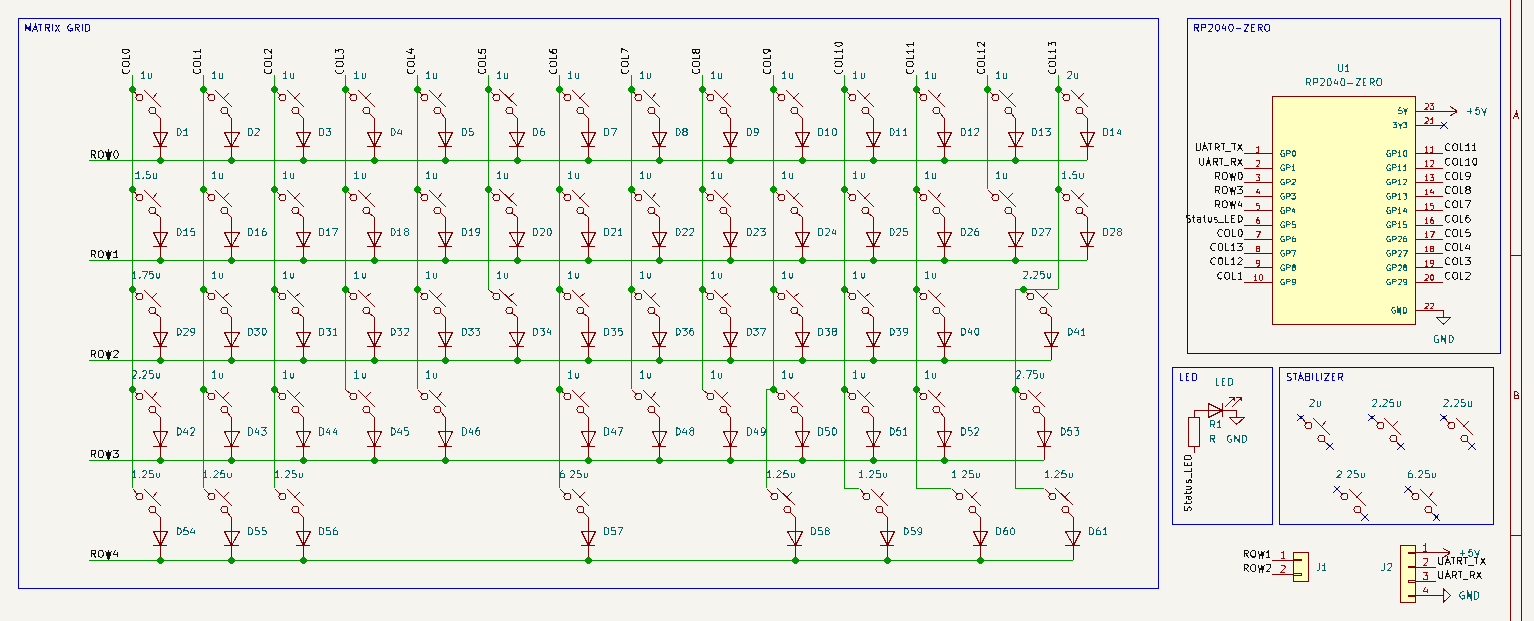

Magnum-60, from the project README — From the project README

Main components on the Magnum-60

RP2040-ZERO

Magnum-60 bill of materials (BOM)

132 components, 18 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040-ZERO	MODULE_RP2040-ZERO	U1
1	CONN_01X02 Conn_01x02	PinSocket_1x02_P2.54mm_Vertical	J1
1	CONN_01X04 Conn_01x04	PinHeader_1x04_P2.54mm_Horizontal	J2
1	2u	STAB_MX_2u	STAB1
2	2.25U 2.25u	STAB_MX_2.25u	STAB2, STAB3
1	2.25U 2.25u	STAB_MX_2.75u	STAB4
1	6.25U 6.25u	STAB_MX_6.25u	STAB5
46	1u	SW_MX_HS_KS-2P02B01-01_1u	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +38
1	2u	SW_MX_HS_KS-2P02B01-01_1u	SW14
2	1.5U 1.5u	SW_MX_HS_KS-2P02B01-01_1.5u	SW15, SW28
1	1.75U 1.75u	SW_MX_HS_KS-2P02B01-01_1.75u	SW29
2	2.25U 2.25u	SW_MX_HS_KS-2P02B01-01_1u	SW41, SW42
1	2.75U 2.75u	SW_MX_HS_KS-2P02B01-01_1u	SW53
7	1.25U 1.25u	SW_MX_HS_KS-2P02B01-01_1.25u	SW54, SW55, SW56, SW58, SW59, SW60, SW61
1	6.25U 6.25u	SW_MX_HS_KS-2P02B01-01_1u	SW57
61	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +53
1	LED	LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D62
1	R	R_1206_3216Metric	R1

Magnum-60 design files

The KiCad project lives in the poojithas956/Magnum-60 repository on GitHub; these links point at the commit this page was built from.

Magnum-60: common questions

What microcontroller does the Magnum-60 use?

The Magnum-60 is built around the RP2040-ZERO, from the RP2040/RP2350 family.

How big is the Magnum-60 PCB?

The Magnum-60 measures 291.9 × 101.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Magnum-60?

132 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Magnum-60 design files?

From the poojithas956/Magnum-60 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Magnum-60 design in my own project?

Yes, under the terms of its MIT license, which poojithas956 chose for the repository.

Can I test firmware for the Magnum-60 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
