Spark synth hardware PCB layout, top view — open source board by povle

About the Spark synth hardware PCB

Spark synth hardware is an open source PCB design by povle, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 261 × 18 mm, with 17 components from 2 distinct parts.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

This work is licensed under a [Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License][cc-by-nc-sa].

This work is licensed under a [Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License][cc-by-nc-sa].

[cc-by-nc-sa]: http://creativecommons.org/licenses/by-nc-sa/4.0/ [cc-by-nc-sa-image]: https://licensebuttons.net/l/by-nc-sa/4.0/88x31.png [cc-by-nc-sa-shield]: https://img.shields.io/badge/License-CC%20BY--NC--SA%204.0-lightgrey.svg

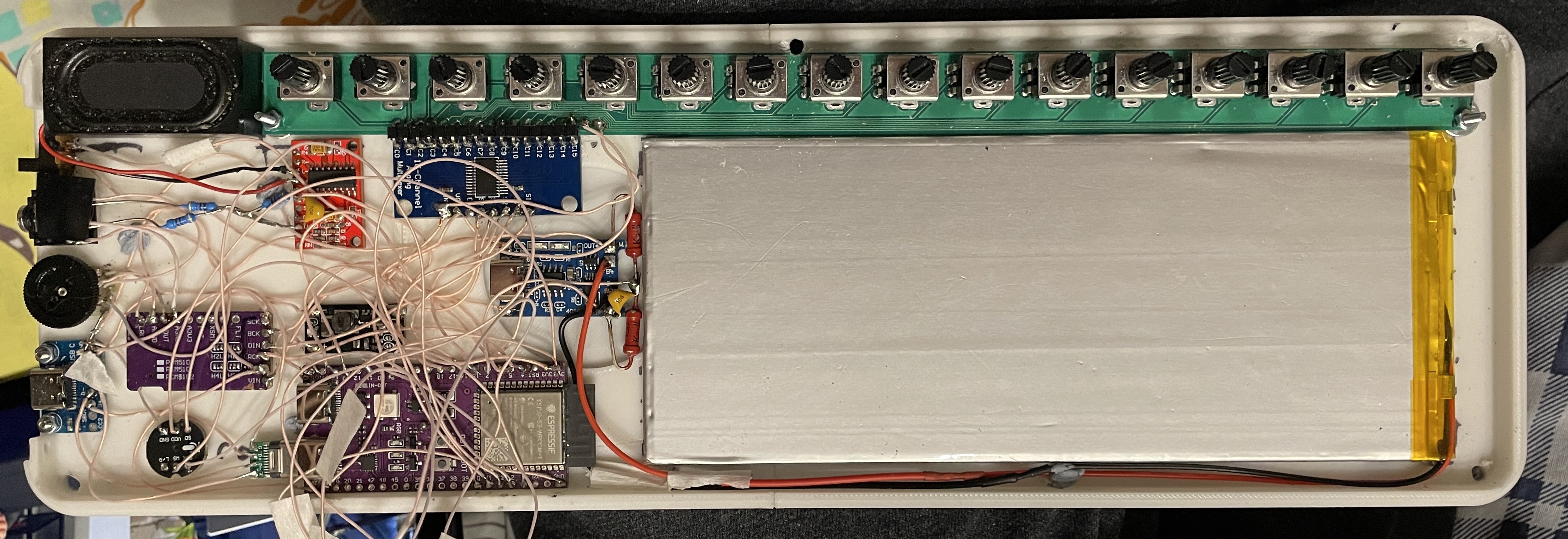

Important disclaimer: currently, this project is a prototype. If you really want to assemble it yourself, be prepared for a lot of drilling, sanding, double-sided-taping, soldering tiny wires and figuring stuff out on your own. You can…

Spark synth hardware, from the project README
From the project README

Spark synth hardware bill of materials (BOM)

17 components, 2 distinct parts.

QtyPartRefs
1
Conn_01x18_Pin
J1
16
R_Potentiometer
RV1, RV2, RV3, RV4, RV5, RV6, RV7, RV8 +8

Spark synth hardware design files

The KiCad project lives in the povle/spark-synth-hardware repository on GitHub; these links point at the commit this page was built from.

Spark synth hardware: common questions

How big is the Spark synth hardware PCB?

The Spark synth hardware measures 261 × 18 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Spark synth hardware?

17 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Spark synth hardware design files?

From the povle/spark-synth-hardware repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Spark synth hardware design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
