A600 ACCEL RAM

PR77·A600_ACCEL_RAM·Hardware/A600_ACCEL_RAM.kicad_pcb

A600 ACCEL RAM PCB layout, top view — open source board by PR77

About the A600 ACCEL RAM PCB

A600 ACCEL RAM is an open source PCB design by PR77, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 99.4 × 34.5 mm, with 30 components from 14 distinct parts.

Other key parts include the MC68000FN, MC68SEC000FN, CY62167G, XC9572VQ44 and LM1117-3.3. By type, the board carries 10 resistors, 9 capacitors, 5 ICs, 3 connectors, 2 diodes and 1 crystal.

It belongs with the retro computing designs in this gallery.

From the project

Amiga 600 Accelerator And RAM Expansion

Mounting holes on the Accelerator PCB match with the HDD cradle and accommodate a M2 screw to provide stress relief for the PLCC68 socket. SukkoPera has a great guide on how to prepare the PLCC68 socket as some small modifications are required. His how to guide is linked here;

https://github.com/SukkoPera/OpenAmiga600FastRamExpansion/blob/master/SocketRework.md

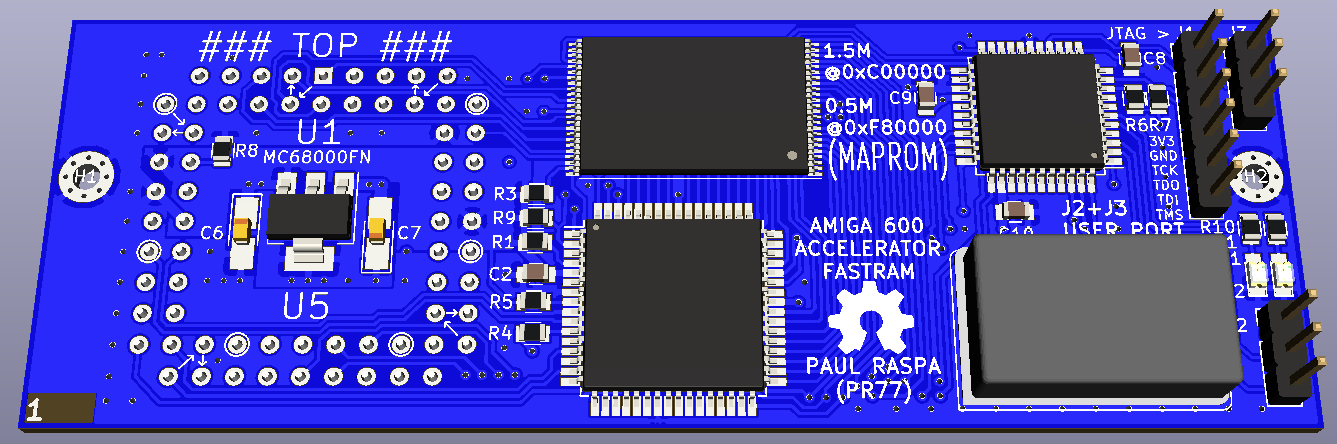

A600 ACCEL RAM, from the project README
From the project README

Main components on the A600 ACCEL RAM

MC68000FNMC68SEC000FNCY62167GXC9572VQ44LM1117-3.3

A600 ACCEL RAM bill of materials (BOM)

30 components, 14 distinct parts.

QtyPartRefs
1
MC68000FN
U1
1
MC68SEC000FN
U2
1
CY62167G
U3
1
XC9572VQ44
U4
1
LM1117-3.3
U5
1
CXO_DIP14
X1
1
JTAG
J1
1
SPARE1
J2
1
SPARE2
J3
2
LED
D1, D2
7
100n
C1, C2, C3, C4, C8, C9, C10
2
10u
C6, C7
8
10K
R1, R3, R4, R5, R6, R7, R8, R9
2
680R
R10, R11

A600 ACCEL RAM design files

The KiCad project lives in the PR77/A600_ACCEL_RAM repository on GitHub; these links point at the commit this page was built from.

A600 ACCEL RAM: common questions

How big is the A600 ACCEL RAM PCB?

The A600 ACCEL RAM measures 99.4 × 34.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the A600 ACCEL RAM?

30 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the A600 ACCEL RAM design files?

From the PR77/A600_ACCEL_RAM repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the A600 ACCEL RAM design in my own project?

Yes, under the terms of its GPL-3.0 license, which PR77 chose for the repository.
