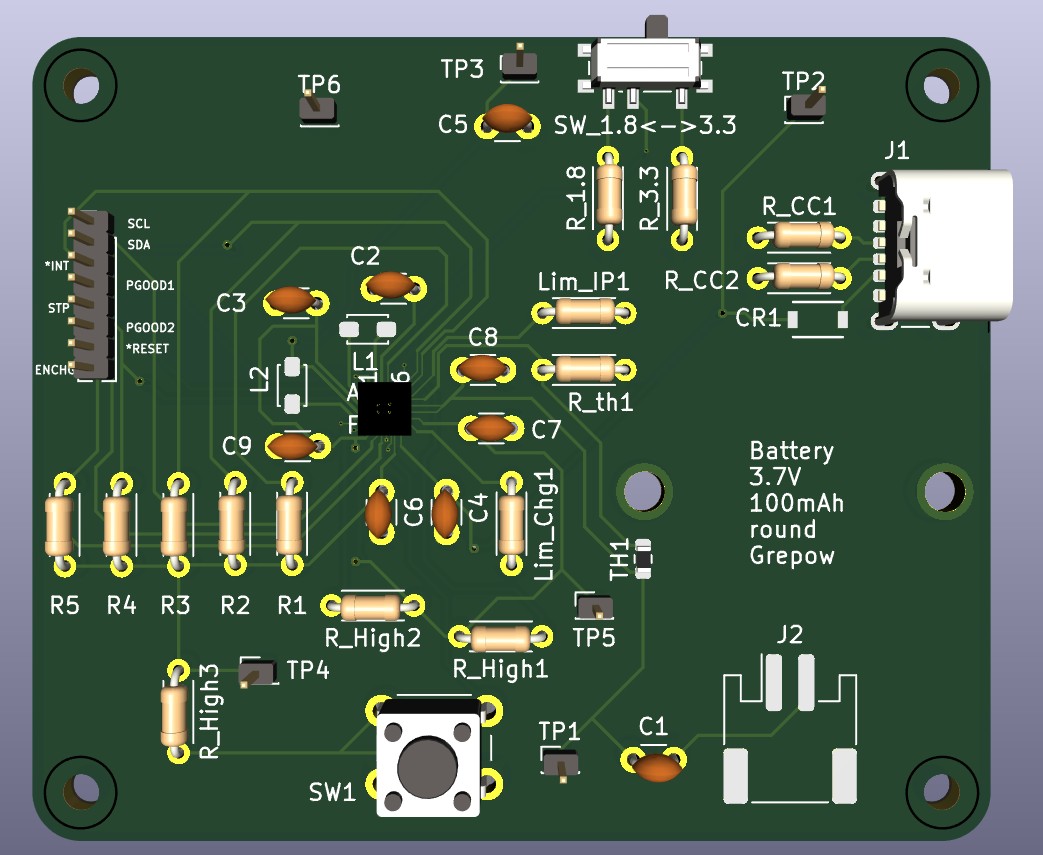

Usbcore adp5360 PCB layout, top view — open source board by Pratim-Senapati

About the Usbcore adp5360 PCB

Usbcore adp5360 is an open source PCB design by Pratim-Senapati, published on GitHub. It is a 2-layer board measuring 59 × 49.5 mm, with 40 components from 26 distinct parts.

Other key parts include the ADP5360ACBZ-1-R7. By type, the board carries 9 capacitors, 6 test points, 5 resistors, 3 connectors, 2 inductors and 1 IC.

It belongs with the power & battery designs in this gallery.

From the project

Exploring power design with ADP5360: A compact USB-C + Li-ion power management and changable output - all on one board!

This project involves the schematic and PCB design of a compact power management module built around the Analog Devices ADP5360 PMIC. The design supports USB-C input, Changable output (3.3V / 1.8V), single-cell Li-ion battery charging, I2C programmability, and includes essential passive components for safe and efficient operation. It is specifically optimized for low-power wearable devices requiring 3.7 V, 100 mAh battery management.

Usbcore adp5360, from the project README
From the project README

Main components on the Usbcore adp5360

ADP5360ACBZ-1-R7

Usbcore adp5360 bill of materials (BOM)

40 components, 26 distinct parts.

QtyPartRefs
1
ADP5360ACBZ-1-R7
U1
1
USB_C_Receptacle_PowerOnly_6P
J1
1
Battery_connector
J2
1
header
J3
1
PMEG2010ER_115
CR1
1
15k
Lim_Chg1
1
20k
Lim_IP1
1
27k
R_1.8
1
100k
R_3.3
2
5.1k
R_CC1, R_CC2
3
1Mohm
R_High1, R_High2, R_High3
1
10k
R_th1
1
SW_Push
SW1
1
SW_SPDT
SW_1.8<->3.3
1
10k (Murata NCP18XH103F03RB)
TH1
1
Volt_Bat
TP1
1
Volt_USB
TP2
1
Volt_out
TP3
1
VDD
TP4
1
VSYS
TP5
Show 6 more
QtyPartRefs
1
GND_ref
TP6
2
4.7u
L1, L2
7
10u
C1, C2, C3, C5, C7, C8, C9
1
2.2u
C4
1
1u
C6
5
10k
R1, R2, R3, R4, R5

Usbcore adp5360 design files

The KiCad project lives in the Pratim-Senapati/usbcore-adp5360 repository on GitHub; these links point at the commit this page was built from.

Usbcore adp5360: common questions

How big is the Usbcore adp5360 PCB?

The Usbcore adp5360 measures 59 × 49.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Usbcore adp5360?

40 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the Usbcore adp5360 design files?

From the Pratim-Senapati/usbcore-adp5360 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Usbcore adp5360 design in my own project?

The repository has no license, so all rights stay with Pratim-Senapati. Use it as a reference, and ask the author before reusing the design.
