KicadJE MoogVCF 1b

promesoft·KicadJE_MoogVCF·KicadJE_MoogVCF_1_revB/KicadJE_MoogVCF_1b.kicad_pcb

KicadJE MoogVCF 1b PCB layout, top view — open source board by promesoft
Simulate this board

About the KicadJE MoogVCF 1b PCB

KicadJE MoogVCF 1b is an open source PCB design by promesoft, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 235 components from 91 distinct parts.

Other key parts include the TL072, TLC555 and TL074. By type, the board carries 105 resistors, 45 diodes, 31 capacitors, 18 transistors, 14 connectors and 5 ICs.

From the project

3 yusynth implementations - MoogVCF - WaveFolder - 555 ADSR

Based on https://www.yusynth.net/Modular/Commun/WAVEFOLDER/new/JHWavefolder-sch.gif

Based on https://www.yusynth.net/Modular/Commun/ADSR/ADSR555-FINAL.gif

https://www.yusynth.net/Modular/Commun/WAVEFOLDER/new/JHWavefolder-sch.gif

https://www.yusynth.net/Modular/Commun/MOOGVCF/Moogfilter-sch.jpg

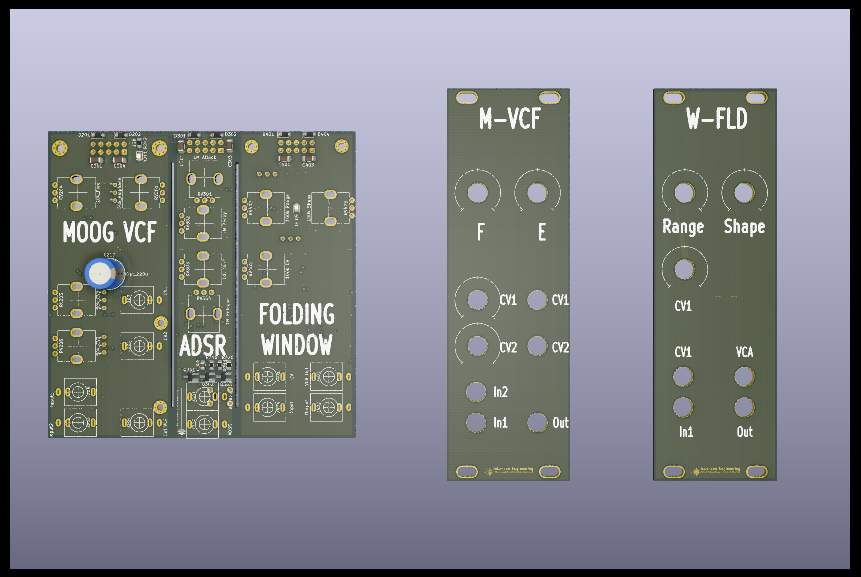

KicadJE MoogVCF 1b, from the project README
From the project README

Main components on the KicadJE MoogVCF 1b

TL072TLC555TL074

KicadJE MoogVCF 1b bill of materials (BOM)

235 components, 91 distinct parts.

QtyPartRefs
3
TL072
U201, U301, U401
1
TLC555
U302
1
TL074
U402
5
UMX1N
Q201, Q208, Q209, Q210, Q401
8
SS9014
Q202, Q203, Q204, Q205, Q206, Q207, Q211, Q402
1
SS9015
Q212
1
SI2302
Q301
3
MMBT3904
Q302, Q303, Q304
1
CV2
J201
1
Input2
J202
1
CV1
J203
1
Out VCF
J204
1
Input1
J205
1
ADSRGate
J301
1
ADSR
J302
1
CV
J401
1
Output
J402
1
VCA Out
J403
1
Input
J404
3
Doepfer_Power_10pin
P201, P301, P401
Show 71 more
QtyPartRefs
1
50k_emphasis
RV201
2
1k
RV202, RV401
1
50k_CV1
RV203
1
10k_Freq
RV204
1
500R
RV205
1
50k_CV2
RV206
1
10k
RV207
1
1M Attack
RV301
1
1M Decay
RV302
1
10k Sust
RV303
1
1M Release
RV304
1
100k CV
RV402
1
100k Range
RV403
1
50k
RV404
1
100k Shape
RV405
1
Gate
SW302
12
1N1007
D201, D202, D301, D302, D306, D307, D401, D402 +4
8
Zener
D203, D204, D205, D206, D207, D208, D209, D210
2
LED
D211, D405
3
1N4148
D303, D304, D305
20
LL4148
D408, D409, D410, D411, D412, D413, D414, D415 +12
2
10u
C201, C204
8
100n
C202, C203, C205, C206, C302, C304, C402, C404
4
47n
C207, C208, C209, C210
2
10u
C211, C212
1
Opt_220u
C213
1
22u
C214
1
100p
C215
4
1u
C301, C303, C401, C403
2
10n
C305, C308
1
10u_N/A
C306
1
1u
C307
1
1u/0R
C405
2
10n opt
C406, C407
1
22u Opt
C408
2
330R
R201, R229
8
1K
R202, R203, R207, R216, R222, R228, R240, R318
9
OPEN
R204, R205, R209, R212, R241, R302, R307, R316 +1
4
150R
R206, R210, R213, R224
6
0R
R208, R211, R301, R306, R315, R432
1
180R
R214
1
22R
R215
3
120k
R217, R218, R221
4
56k
R219, R220, R426, R430
4
10k
R223, R309, R401, R405
4
470R
R225, R239, R402, R404
4
47k
R226, R227, R313, R322
2
270k
R230, R232
1
1k2
R231
1
220R
R233
8
100k
R234, R238, R243, R412, R418, R422, R439, R440
3
680R
R235, R303, R414
1
150k
R236
1
1k8
R237
2
12K
R242, R403
1
120R_N/A
R304
1
4k7
R305
2
100R
R308, R319
6
22k
R310, R311, R312, R321, R421, R423
1
1M
R314
1
1M2
R317
1
10R
R320
3
5k6
R406, R411, R433
2
15k 1%
R407, R408
2
100k 1%
R409, R415
2
10k 1%
R410, R413
9
15k
R416, R419, R424, R425, R427, R429, R431, R434 +1
1
68k
R417
2
33k
R420, R437
1
27k
R428
1
2k7
R436

KicadJE MoogVCF 1b design files

The KiCad project lives in the promesoft/KicadJE_MoogVCF repository on GitHub; these links point at the commit this page was built from.

KicadJE MoogVCF 1b: common questions

How big is the KicadJE MoogVCF 1b PCB?

The KicadJE MoogVCF 1b measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KicadJE MoogVCF 1b?

235 components, from 91 distinct parts. The full bill of materials is listed on this page.

Where can I download the KicadJE MoogVCF 1b design files?

From the promesoft/KicadJE_MoogVCF repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the KicadJE MoogVCF 1b design in my own project?

The repository has no license, so all rights stay with promesoft. Use it as a reference, and ask the author before reusing the design.
