PolyVent SPI Controller
About the PolyVent SPI Controller PCB
PolyVent SPI Controller is an open source PCB design by PubInv, published on GitHub under the AGPL-3.0 license. It is a 2-layer board measuring 100 × 80 mm, with 76 components from 31 distinct parts.
Other key parts include the LM2596 DC-DC Buck Converter Step Down Module. By type, the board carries 28 resistors, 12 test points, 9 capacitors, 6 transistors, 5 connectors and 3 fuses.
It belongs with the power & battery designs in this gallery.
From the project

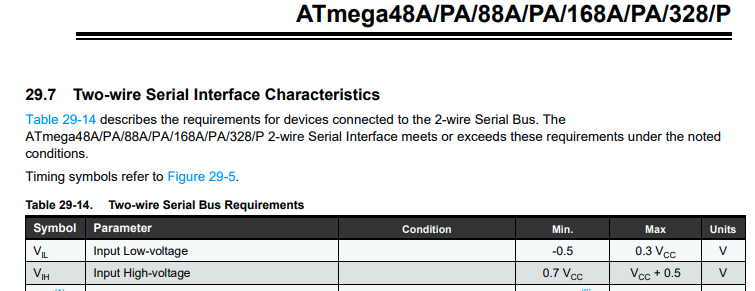

A general purpose alarm device (with software) as a module for medical devices (and others)
This is a branch with code changes useful for testing the with the PolyVent.
1. We discovered there is a BUILTIN LED load on the CLK line. This is a problem specific to the Arduino UNO architecture which we (mostly) copied. It can be solved in rework be desoldering restor R103 on the GPAD (NOT the PolyVent SPI card. 2. The code TESTPOLYVENTLINES is a very SIMPLE test script for transmitting a SINGLE BYTE. It can be loaded on to the PolyVent Architecture to remove all dependence on the (somewhat complicated) VentOS code and test the transmission of SPI through the PolyVent, back plane…
Main components on the PolyVent SPI Controller
PolyVent SPI Controller bill of materials (BOM)
76 components, 31 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM2596 DC-DC Buck Converter Step Down Module DC_DC_small | DC_DC_LM2596_small1700x830 | U101 |
| 6 | BSS138 Yangzhou Yangjie Elec Tech | SOT-23 | Q101, Q102, Q103, Q104, Q201, Q202 |
| 1 | 09231486921 Plug 48 Way HARTING | HARTING_09231486921 | J1 |
| 1 | 5555165-1 RJ12_6P6C_HORZ TE Connectivity | RJ12_Amphenol_54601 | J102 |
| 2 | 68000-102HLF 0.100_2Pin Amphenol ICC | PinHeader_1x02_P2.54mm_Vertical | J103, J202 |
| 1 | S04B-XASK-1(LF)(SN) JST Sales America | S04B-XASK-1(LF)(SN) | J201 |
| 4 | — | @HOLE0, @HOLE1, @HOLE2, @HOLE3 | |
| 3 | 0603L100SLYR Polyfuse_Small Littelfuse | Fuse_0603_1608Metric | F101, F102, F103 |
| 2 | DHN-08-V-T/R SW_DIP_x08 Diptronics | SMDIP-16_L11.39_W6.7mm | SW101, SW102 |
| 3 | JLC_ToolingHole_0576mm | JLC_ToolingHole_0576mm | T1, T2, T3 |
| 1 | ControllerVCC | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP101 |
| 1 | CPIO | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP102 |
| 1 | SCK | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP103 |
| 1 | COPI | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP104 |
| 1 | nCS | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP105 |
| 1 | +3.3V | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP106 |
| 1 | +5V | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP107 |
| 1 | TP_GND | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP108 |
| 1 | +12V | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP109 |
| 1 | SCL_5V | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP201 |
Show 11 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | I2C_VCC | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP202 |
| 1 | SDA_5V | TestPoint_Loop_D2.54mm_Drill1.5mm_Beaded | TP203 |
| 3 | LTST-C171KRKT RED 0603 Lite-On Inc. | LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder | D101, D102, D103 |
| 6 | CC0603JRNPO9BN390 39PF YAGEO | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C101, C102, C103, C104, C201, C202 |
| 3 | CC0603KRX7R9BB104 100NF YAGEO | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C105, C106, C107 |
| 4 | DNI | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R101, R102, R207, R208 |
| 6 | RMC06031K1%N DNI TyoHM | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R103, R104, R105, R107, R111, R114 |
| 7 | RMC06031K1%N 1K TyoHM | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R106, R109, R110, R113, R117, R118, R119 |
| 8 | RMC 0603 10K F N 10K TyoHM | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R108, R112, R115, R116, R201, R202, R203, R204 |
| 1 | RMC060315%N 1R0 TyoHM | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R120 |
| 2 | RMC0603391%N 39R TyoHM | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R205, R206 |
