PUTM EV APPS 2021

PUT-Motorsport·PUTM_EV_APPS_2021·APPS/APPS.kicad_pcb

PUTM EV APPS 2021 PCB layout, top view — open source STM32 board by PUT-Motorsport

About the PUTM EV APPS 2021 PCB

PUTM EV APPS 2021 is an open source STM32 PCB design by PUT-Motorsport, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 100.7 × 63.5 mm, with 72 components from 32 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the LM2596S-5, LM1117-3.3, MCP2562-H-SN and MCP6001-OT. By type, the board carries 20 capacitors, 17 resistors, 14 diodes, 8 ICs, 6 connectors and 2 inductors.

It belongs with the sensors designs in this gallery.

From the project

FS APPS project

APPS handling is required by official FSG Rules according to T11.8 (see). APPS signals are system critical signals meaning that any implausibility between sensors or a failure should result in complete motor power shutdown.

0% - fully released 100% - fully applied

Implausibility is defined as a deviation of more than ten percentage points pedal travel between any of the used APPSs. If it occurs for more than 100 ms the power to the motor must be immediately shut down.

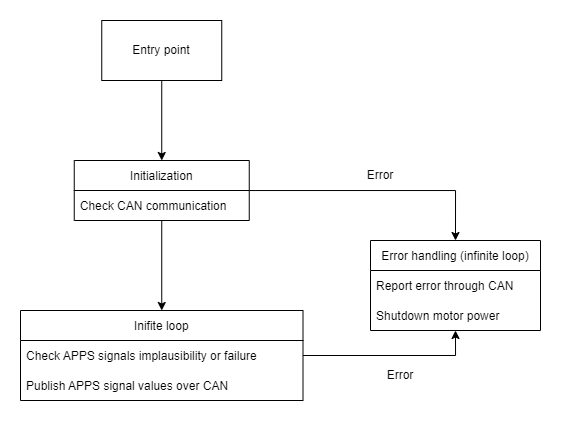

PUTM EV APPS 2021, from the project README
From the project README

Main components on the PUTM EV APPS 2021

LM2596S-5LM1117-3.3MCP2562-H-SNMCP6001-OTSTM32F103C8Tx

PUTM EV APPS 2021 bill of materials (BOM)

72 components, 32 distinct parts.

QtyPartRefs
1
LM2596S-5
U2
3
LM1117-3.3
U3, U5, U8
1
MCP2562-H-SN
U4
2
MCP6001-OT
U6, U7
1
STM32F103C8Tx
U9
1
BSS138
Q1
1
Crystal 8 MHz
Y1
2
Screw_Terminal_01x03
J1, J2
3
Screw_Terminal_01x02
J3, J4, J5
1
Conn_01x06_Male
J6
1
Polyfuse
F1
1
FINDER-30.22
K1
1
SW_Push
SW1
5
LED
D1, D3, D10, D11, D12
6
D_Schottky
D2, D5, D6, D7, D8, D13
1
PESD2CAN.215
D4
1
D_Zener
D9
1
DIODE
D14
1
L
L1
1
33u
L2
Show 12 more
QtyPartRefs
14
100nF
C1, C2, C3, C4, C5, C6, C8, C9 +6
1
100u
C7
1
220u
C11
2
1uF
C13, C17
2
22pF
C14, C15
1
R_Small
R1
5
R
R2, R3, R9, R10, R11
1
120R
R4
4
300R
R5, R6, R12, R13
1
100R
R7
1
10k
R8
4
0R
R14, R15, R16, R17

PUTM EV APPS 2021 design files

The KiCad project lives in the PUT-Motorsport/PUTM_EV_APPS_2021 repository on GitHub; these links point at the commit this page was built from.

PUTM EV APPS 2021: common questions

What microcontroller does the PUTM EV APPS 2021 use?

The PUTM EV APPS 2021 is built around the STM32F103C8Tx, from the STM32 family.

How big is the PUTM EV APPS 2021 PCB?

The PUTM EV APPS 2021 measures 100.7 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PUTM EV APPS 2021?

72 components, from 32 distinct parts. The full bill of materials is listed on this page.

Where can I download the PUTM EV APPS 2021 design files?

From the PUT-Motorsport/PUTM_EV_APPS_2021 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PUTM EV APPS 2021 design in my own project?

Yes, under the terms of its Apache-2.0 license, which PUT-Motorsport chose for the repository.

Can I test firmware for the PUTM EV APPS 2021 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
