RSTM32F030C8T6 ProMiniPlus
r-pv·rSTM32F030C8T6_ProMiniPlus·rSTM32F030C8T6/rSTM32F030C8T6.kicad_pcb
About the RSTM32F030C8T6 ProMiniPlus PCB
RSTM32F030C8T6 ProMiniPlus is an open source STM32 PCB design by r-pv, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 25.9 × 56.4 mm, with 27 components from 19 distinct parts.
Its main chip is the STM32F030C8T6, from the STM32 family. Other key parts include the AMS1117. By type, the board carries 8 capacitors, 5 connectors, 5 resistors, 3 diodes, 2 ICs and 2 crystals.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

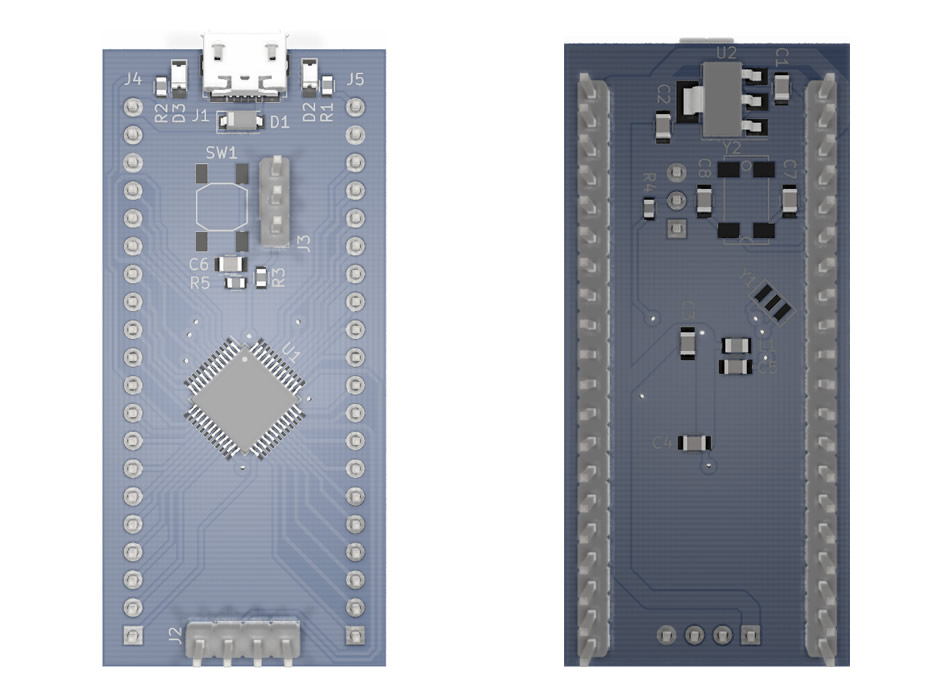

An ST development board based on the STM32F030C8T6 MCU compatible with STM32Duino (Arduino).
- RBOARDF030C8T6 it's the variant board for the STM32 Arduino Core. - rSTM32F030C8T6 it's the KiCAD 5.1.2 project. - rSTM32F030C8T6.schematic.pdf** the schematic.
Update: STCore v2.0 includes support for this MCU, if you're using STCore v2.0 you don't need to install anything.
- This requires the STM32 core for arduino, the ST original. - I used this guide to add the board), you can check it or continue with my suggestions to install the new board. - Copy the "RBOARDF030C8T6" folder to the Arduino "variants" folder, in win7 is located at…

Main components on the RSTM32F030C8T6 ProMiniPlus
RSTM32F030C8T6 ProMiniPlus bill of materials (BOM)
27 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F030C8T6 | LQFP-48_7x7mm_Pitch0.5mm | U1 |
| 1 | AMS1117 | SOT-223-3_TabPin2 | U2 |
| 1 | CSTCE8.000M | Crystal_CSTCE_3pin_3.2x1.3 | Y1 |
| 1 | 32.768K | Crystal_4pin_SMD_2.5x4.6 | Y2 |
| 1 | USB_B_Micro | USB_Micro-B_Molex_47346-0001 | J1 |
| 1 | STLink | Pin_Header_Straight_1x04_Pitch2.54mm | J2 |
| 1 | BOOT | Pin_Header_Straight_1x03_Pitch2.54mm | J3 |
| 2 | — | Pin_Header_Straight_1x20_Pitch2.54mm | J4, J5 |
| 1 | RESET | Switch_SMD_5.2x6.4_reset | SW1 |
| 1 | MBR0530 | D_SOD-123 | D1 |
| 2 | LED | LED_0805 | D2, D3 |
| 1 | 10uH | L_0805 | L1 |
| 2 | 22uF | C_0805 | C1, C2 |
| 1 | 10uF | C_0805 | C3 |
| 3 | 100nF | C_0805 | C4, C5, C6 |
| 2 | 20pF | C_0805 | C7, C8 |
| 2 | 4K91 | R_0603 | R1, R2 |
| 2 | 10K | R_0603 | R3, R5 |
| 1 | 560R | R_0603 | R4 |
RSTM32F030C8T6 ProMiniPlus design files
The KiCad project lives in the r-pv/rSTM32F030C8T6_ProMiniPlus repository on GitHub; these links point at the commit this page was built from.
RSTM32F030C8T6 ProMiniPlus: common questions
What microcontroller does the RSTM32F030C8T6 ProMiniPlus use?
The RSTM32F030C8T6 ProMiniPlus is built around the STM32F030C8T6, from the STM32 family.
How big is the RSTM32F030C8T6 ProMiniPlus PCB?
The RSTM32F030C8T6 ProMiniPlus measures 25.9 × 56.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RSTM32F030C8T6 ProMiniPlus?
27 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the RSTM32F030C8T6 ProMiniPlus design files?
From the r-pv/rSTM32F030C8T6_ProMiniPlus repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the RSTM32F030C8T6 ProMiniPlus design in my own project?
Yes, under the terms of its GPL-3.0 license, which r-pv chose for the repository.
Can I test firmware for the RSTM32F030C8T6 ProMiniPlus without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
