LC-Sensor PCB layout, top view — open source board by ragilalfarizi

About the LC-Sensor PCB

LC-Sensor is an open source PCB design by ragilalfarizi, published on GitHub. It is a 2-layer board measuring 36.5 × 33 mm, with 11 components from 8 distinct parts.

By type, the board carries 3 capacitors, 3 resistors, 2 diodes, 2 inductors and 1 connector.

It belongs with the sensors designs in this gallery.

From the project

PCB module of LC Sensor with THT Components

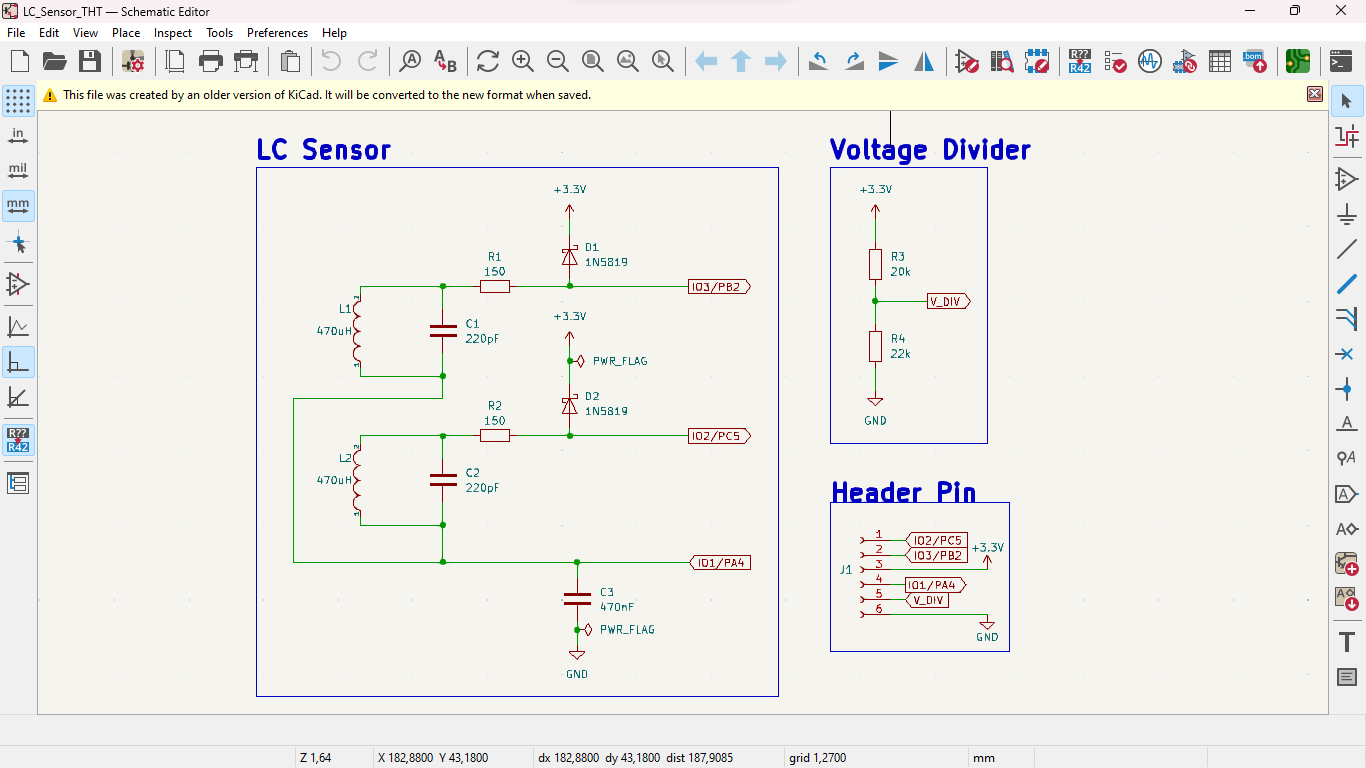

LC-Sensor, from the project README
From the project README

LC-Sensor bill of materials (BOM)

11 components, 8 distinct parts.

QtyPartRefs
1
Conn_01x06_Female
J1
2
1N5819
D1, D2
2
470uH
L1, L2
2
220pF
C1, C2
1
470nF
C3
1
150
R1
1
20k
R3
1
22k
R4

LC-Sensor design files

The KiCad project lives in the ragilalfarizi/LC-Sensor-PCB repository on GitHub; these links point at the commit this page was built from.

LC-Sensor: common questions

How big is the LC-Sensor PCB?

The LC-Sensor measures 36.5 × 33 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LC-Sensor?

11 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the LC-Sensor design files?

From the ragilalfarizi/LC-Sensor-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LC-Sensor design in my own project?

The repository has no license, so all rights stay with ragilalfarizi. Use it as a reference, and ask the author before reusing the design.
