Pathfinder

rahdeensigari·pathfinder·docs/Pathfinder.kicad_pcb

Pathfinder PCB layout, top view — open source RP2040/RP2350 board by rahdeensigari

About the Pathfinder PCB

Pathfinder is an open source RP2040/RP2350 PCB design by rahdeensigari, published on GitHub. It is a 2-layer board measuring 82.9 × 34 mm, with 11 components from 5 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 3 switches, 3 diodes, 3 resistors and 1 IC.

From the project

Stasis starter project. Simple efidget PCB.

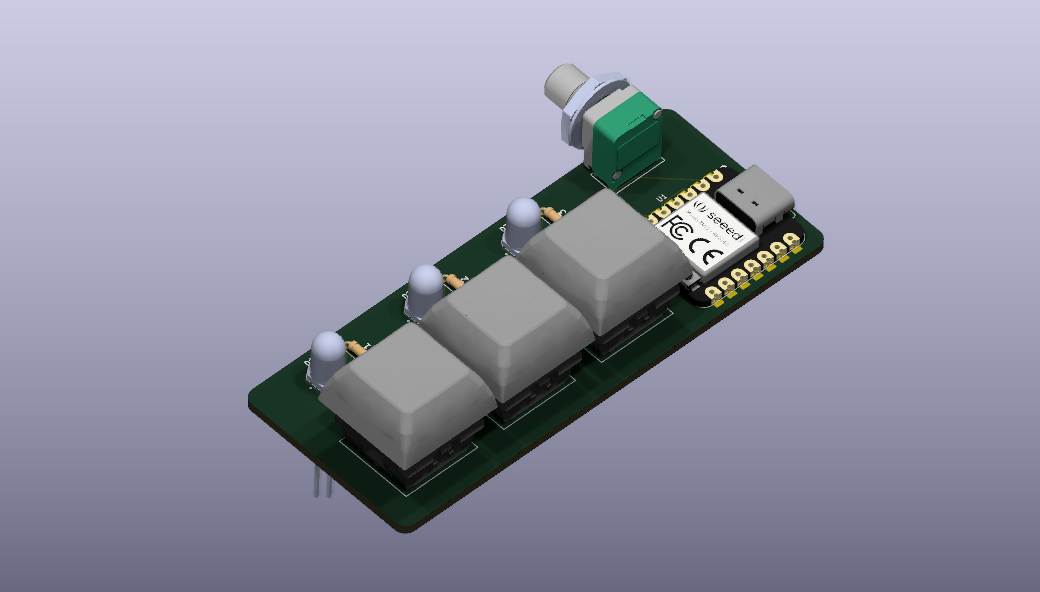

Pathfinder, from the project README
From the project README

Main components on the Pathfinder

XIAO-RP2040-DIP

Pathfinder bill of materials (BOM)

11 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
1
1k
RV1
3
SW_Push
SW1, SW2, SW3
3
L08R5000Q1
D1, D2, D3
3
R
R1, R2, R3

Pathfinder design files

The KiCad project lives in the rahdeensigari/pathfinder repository on GitHub; these links point at the commit this page was built from.

Pathfinder: common questions

What microcontroller does the Pathfinder use?

The Pathfinder is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Pathfinder PCB?

The Pathfinder measures 82.9 × 34 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pathfinder?

11 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pathfinder design files?

From the rahdeensigari/pathfinder repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pathfinder design in my own project?

The repository has no license, so all rights stay with rahdeensigari. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Pathfinder without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
