LM2596-5V-Buck-Converter-PCB-Design

ramuroy·LM2596-5V-Buck-Converter-PCB-Design·KiCad/LM2596 Buck Converter.kicad_pcb

LM2596-5V-Buck-Converter-PCB-Design layout, top view — open source board by ramuroy

About the LM2596-5V-Buck-Converter-PCB-Design

LM2596-5V-Buck-Converter-PCB-Design is an open source PCB design by ramuroy, published on GitHub under the MIT license. It is a 2-layer board measuring 67 × 23.5 mm, with 13 components from 11 distinct parts.

Other key parts include the LM2596S-5. By type, the board carries 4 capacitors, 3 resistors, 2 connectors, 2 diodes, 1 IC and 1 inductor.

It belongs with the power & battery designs in this gallery.

From the project

5 V switching regulator PCB around the LM2596S-5.0 — wide input range, output filtering. KiCad schematic, layout and gerbers.

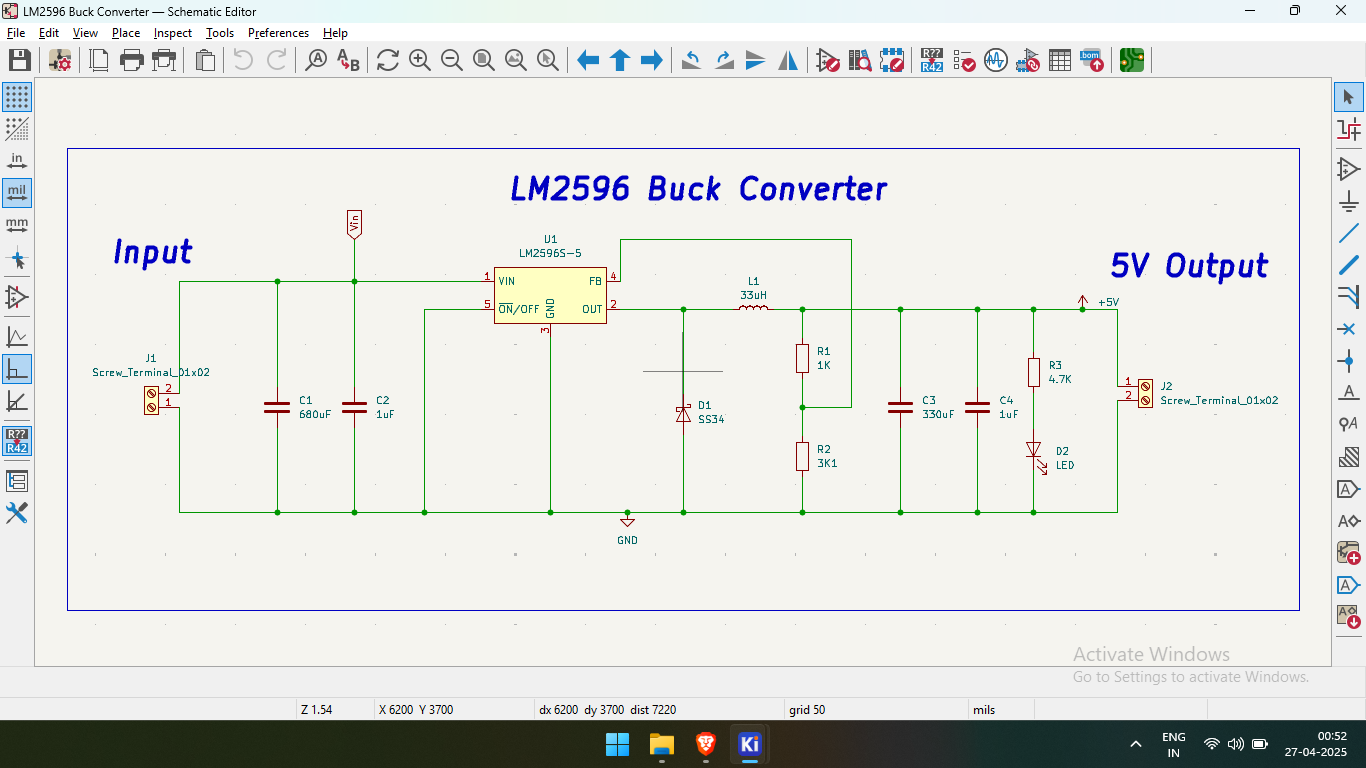

LM2596-5V-Buck-Converter-PCB-Design, from the project README — From the project README

Main components on the LM2596-5V-Buck-Converter-PCB-Design

LM2596-5V-Buck-Converter-PCB-Design bill of materials (BOM)

13 components, 11 distinct parts.

Qty	Part	Footprint	Refs
1	LM2596S-5	TO-263-5_TabPin3	U1
2	Screw_Terminal_01x02	TerminalBlock_bornier-2_P5.08mm	J1, J2
1	SS34	D_SMA	D1
1	LED	LED_0805_2012Metric	D2
1	33uH	L_Bourns_SRR1208_12.7x12.7mm	L1
1	680uF	C_Elec_8x10.2	C1
2	1uF	C_0805_2012Metric	C2, C4
1	330uF	C_Elec_8x10.2	C3
1	1K	R_0805_2012Metric	R1
1	3K1	R_0805_2012Metric	R2
1	4.7K	R_0805_2012Metric	R3

LM2596-5V-Buck-Converter-PCB-Design design files

The KiCad project lives in the ramuroy/LM2596-5V-Buck-Converter-PCB-Design repository on GitHub; these links point at the commit this page was built from.

LayoutKiCad/LM2596 Buck Converter.kicad_pcb
SchematicKiCad/LM2596 Buck Converter.kicad_sch

LM2596-5V-Buck-Converter-PCB-Design: common questions

How big is the LM2596-5V-Buck-Converter-PCB-Design?

The LM2596-5V-Buck-Converter-PCB-Design measures 67 × 23.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LM2596-5V-Buck-Converter-PCB-Design?

13 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the LM2596-5V-Buck-Converter-PCB-Design design files?

From the ramuroy/LM2596-5V-Buck-Converter-PCB-Design repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LM2596-5V-Buck-Converter-PCB-Design design in my own project?

Yes, under the terms of its MIT license, which ramuroy chose for the repository.
