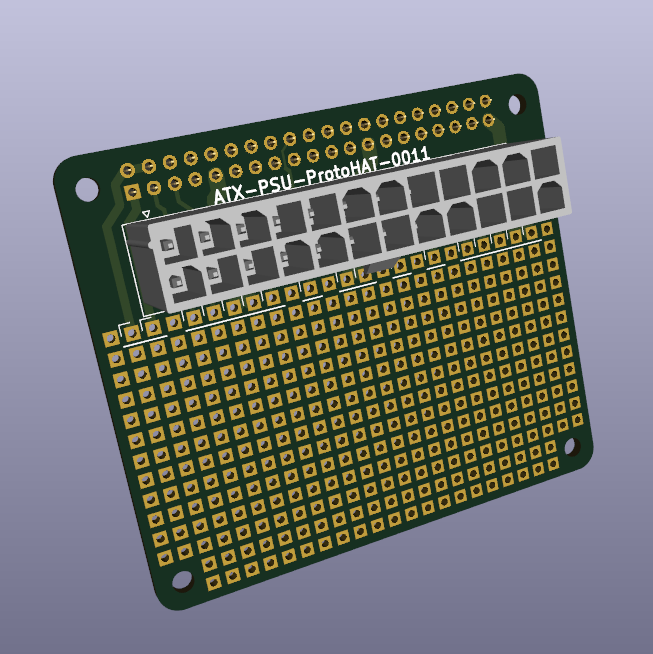

ATX-PSU-ProtoHAT PCB layout, top view — open source Raspberry Pi board by red-scorp

About the ATX-PSU-ProtoHAT PCB

ATX-PSU-ProtoHAT is an open source Raspberry Pi PCB design by red-scorp, published on GitHub. It is a 2-layer board measuring 65 × 56.5 mm, with 19 components from 14 distinct parts.

Its main chip is the PI_CONN, from the Raspberry Pi family.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

ATX PSU ProtoHAT for Raspberry Pi

ATX-PSU-ProtoHAT project test HAT board for ATX PSU.

ATX-PSU-ProtoHAT is a prototyping HAT board for DIY use. This board features Raspberry Pi and ATX PSU connector.

- Raspberry Pi 40-pin connector - ATX PSU 24-pin connector - DIY raster DOT area for prototyping

- Fixed board geomery to fit better to Rasperry Pi HAT spec - Added few more DIY raster lines - Fixed typo in pad's description - Moved texts around

ATX-PSU-ProtoHAT, from the project README
From the project README

ATX-PSU-ProtoHAT bill of materials (BOM)

19 components, 14 distinct parts.

QtyPartRefs
1
PI_CONN
J1
1
3V3_PI
J2
1
5V_PI
J3
1
SDA_PI
J4
1
SCL_PI
J5
1
SHUTDOWN_PI
J6
6
GND
J7, J8, J9, J10, J18, J19
1
PSU_CONN
J11
1
3V3_PSU
J12
1
5V_PSU
J13
1
5V_SB
J14
1
12V_PSU
J15
1
POWER_GOOD
J16
1
PS_ON
J17

ATX-PSU-ProtoHAT design files

The KiCad project lives in the red-scorp/ATX-PSU-ProtoHAT repository on GitHub; these links point at the commit this page was built from.

ATX-PSU-ProtoHAT: common questions

What microcontroller does the ATX-PSU-ProtoHAT use?

The ATX-PSU-ProtoHAT is built around the PI_CONN, from the Raspberry Pi family.

How big is the ATX-PSU-ProtoHAT PCB?

The ATX-PSU-ProtoHAT measures 65 × 56.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ATX-PSU-ProtoHAT?

19 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the ATX-PSU-ProtoHAT design files?

From the red-scorp/ATX-PSU-ProtoHAT repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ATX-PSU-ProtoHAT design in my own project?

The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ATX-PSU-ProtoHAT without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
