RP2040-PinTest PCB layout, top view — open source AVR/Arduino board by red-scorp

About the RP2040-PinTest PCB

RP2040-PinTest is an open source AVR/Arduino PCB design by red-scorp, published on GitHub. It is a 2-layer board measuring 57.2 × 53.3 mm, with 62 components from 6 distinct parts.

Its main chip is the Arduino_Pro_Mini_Socket_NoSPH, from the AVR/Arduino family. Other key parts include the Clone_Pro_Mini_Socket_NoSPH and Arduino_Uno_R3_Shield. By type, the board carries 29 diodes, 29 resistors, 3 modules and 1 connector.

From the project

Pin Test board for Uno and ProMini boards

The RP2040-PinTest project aims to display pin function with a simple LED.

The RP2040-PinTest board is a simple 2-layer intended to test RP2040-Eins and RP2040-ProMini boards.

You can view the Schematics in PDF format for detailed information.

- Uses Uno and ProMini footprints. - Inidividual LED for each data pin.

Your contributions as code, resources, or finances are welcome! Please contact me directly via email at andriy.golovnya@gmail.com or through my GitHub profile.

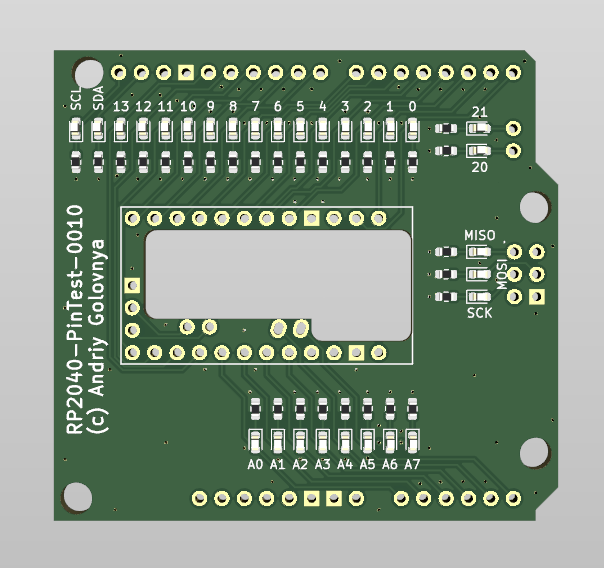

RP2040-PinTest, from the project README
From the project README

Main components on the RP2040-PinTest

Clone_Pro_Mini_Socket_NoSPHArduino_Pro_Mini_Socket_NoSPHArduino_Uno_R3_Shield

RP2040-PinTest bill of materials (BOM)

62 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Clone_Pro_Mini_Socket_NoSPH
A2
1
Arduino_Pro_Mini_Socket_NoSPH
A3
1
Arduino_Uno_R3_Shield
A4
1
Conn_01x02_Socket
J1
29
C72038
YELLOW
D1, D2, D3, D4, D5, D6, D7, D8 +21
29
C23186
5k1
R1, R2, R3, R4, R5, R6, R7, R8 +21

RP2040-PinTest design files

The KiCad project lives in the red-scorp/RP2040-PinTest repository on GitHub; these links point at the commit this page was built from.

RP2040-PinTest: common questions

What microcontroller does the RP2040-PinTest use?

The RP2040-PinTest is built around the Arduino_Pro_Mini_Socket_NoSPH, from the AVR/Arduino family.

How big is the RP2040-PinTest PCB?

The RP2040-PinTest measures 57.2 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RP2040-PinTest?

62 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the RP2040-PinTest design files?

From the red-scorp/RP2040-PinTest repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the RP2040-PinTest design in my own project?

The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the RP2040-PinTest without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
