About the W25Q-BRD PCB
W25Q-BRD is an open source PCB design by red-scorp, published on GitHub. It is a 2-layer board measuring 16 × 23 mm, with 9 components from 9 distinct parts.
Other key parts include the W25Q128JVSIQ and W25Q128JVPIQ. By type, the board carries 2 ICs, 2 diodes, 2 capacitors, 2 resistors and 1 connector.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
W25Q-BRD is a breakout board for DIY use
W25Q-BRD project is meant to provide people with cheap SPI flash breakout board.

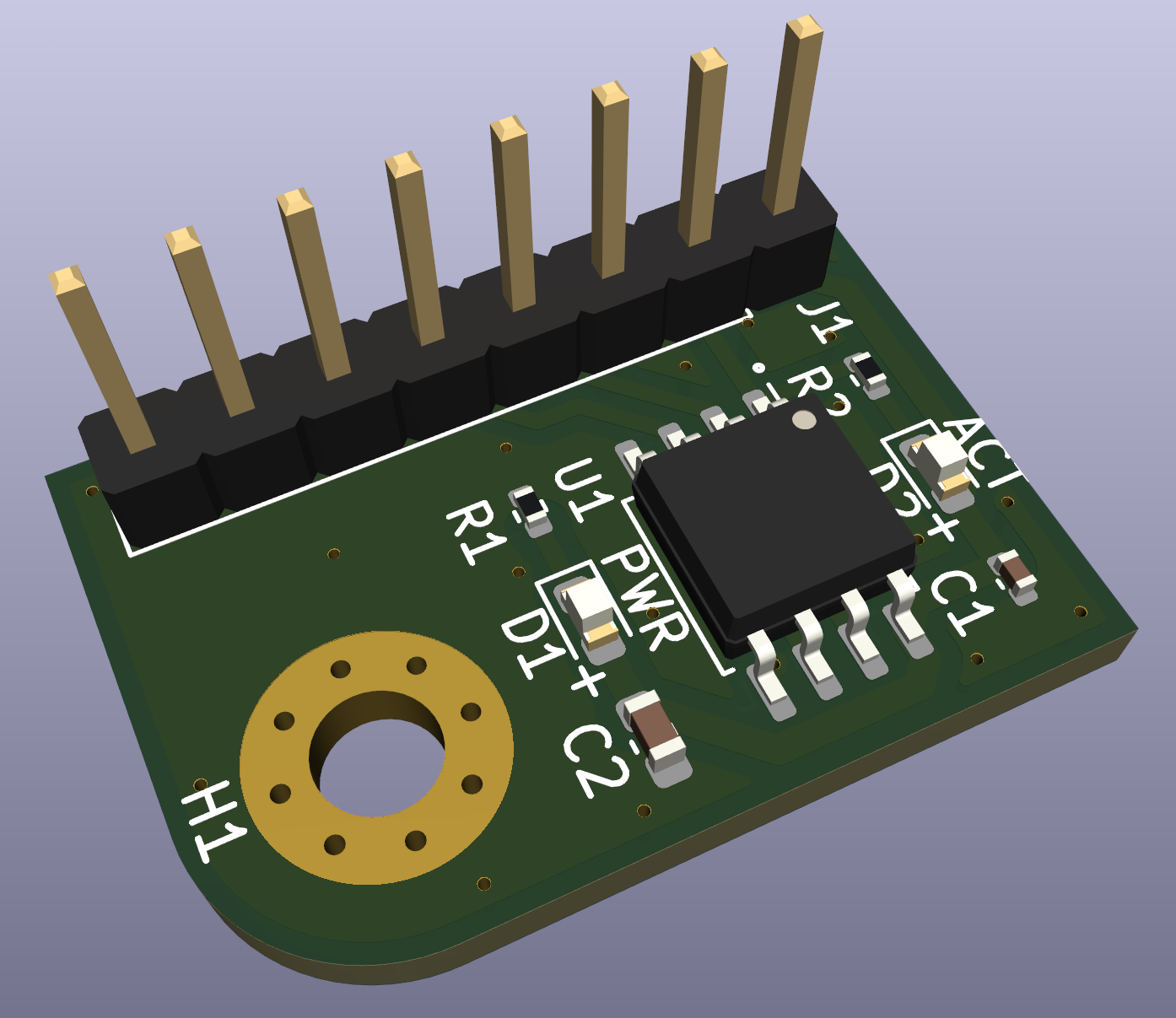

W25Q-BRD is a breakout board for DIY use. This board features 128Mbit (16MB) serial flash chip W25Q128JVSIQ and M3 mounting hole. The flash board runs on 3.3V and supports SPI and QSPI transfer modes.
- Uses 3.3V voltage - Runs in SPI and QSPI modes - Simple 2 layer board design - Common for DIY 2.54mm pitch connector - Features SIOC-8 and WSON-8(6x5) footprints

Main components on the W25Q-BRD
W25Q-BRD bill of materials (BOM)
9 components, 9 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | W25Q128JVSIQ | SOIC-8_5.23x5.23mm_P1.27mm | U1 |
| 1 | W25Q128JVPIQ | WSON-8-1EP_6x5mm_P1.27mm_EP3.4x4.3mm | U2 |
| 1 | QSPI | PinHeader_1x08_P2.54mm_Vertical | J1 |
| 1 | C72043 GREEN | LED_0603_1608Metric | D1 |
| 1 | C2286 RED | LED_0603_1608Metric | D2 |
| 1 | 100NF 100nF | C_0402_1005Metric | C1 |
| 1 | 1UF 1uF | C_0603_1608Metric | C2 |
| 1 | 5K1 5k1 | R_0402_1005Metric | R1 |
| 1 | 10K 10k | R_0402_1005Metric | R2 |
W25Q-BRD design files
The KiCad project lives in the red-scorp/W25Q-BRD repository on GitHub; these links point at the commit this page was built from.
- LayoutW25Q-BRD.kicad_pcb
- SchematicW25Q-BRD.kicad_sch
- BOMcam/W25Q-BRD-20221227-BoM.xlsx
W25Q-BRD: common questions
How big is the W25Q-BRD PCB?
The W25Q-BRD measures 16 × 23 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the W25Q-BRD?
9 components, from 9 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the W25Q-BRD design files?
From the red-scorp/W25Q-BRD repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the W25Q-BRD design in my own project?
The repository has no license, so all rights stay with red-scorp. Use it as a reference, and ask the author before reusing the design.
