Macropad

RedstoneGuy9248·Macropad·pcb/HackpadKicad.kicad_pcb

About the Macropad PCB

Macropad is an open source RP2040/RP2350 PCB design by RedstoneGuy9248, published on GitHub. It is a 2-layer board measuring 87.5 × 70.5 mm, with 20 components from 4 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 10 switches, 9 diodes and 1 module.

It belongs with the keyboards designs in this gallery.

From the project

A 9-key macropad with a EC11 rotary encoder running on an RPi Pico. (Made for Hack Club Fallout)

There are 2 variants of the plate available, one has a thickness of 1.5mm and the other is 3mm. The 3mm is the main one as it is the size specified in the Hackpad guide, and a 1.5mm 3D Printed plate would be very fragile.

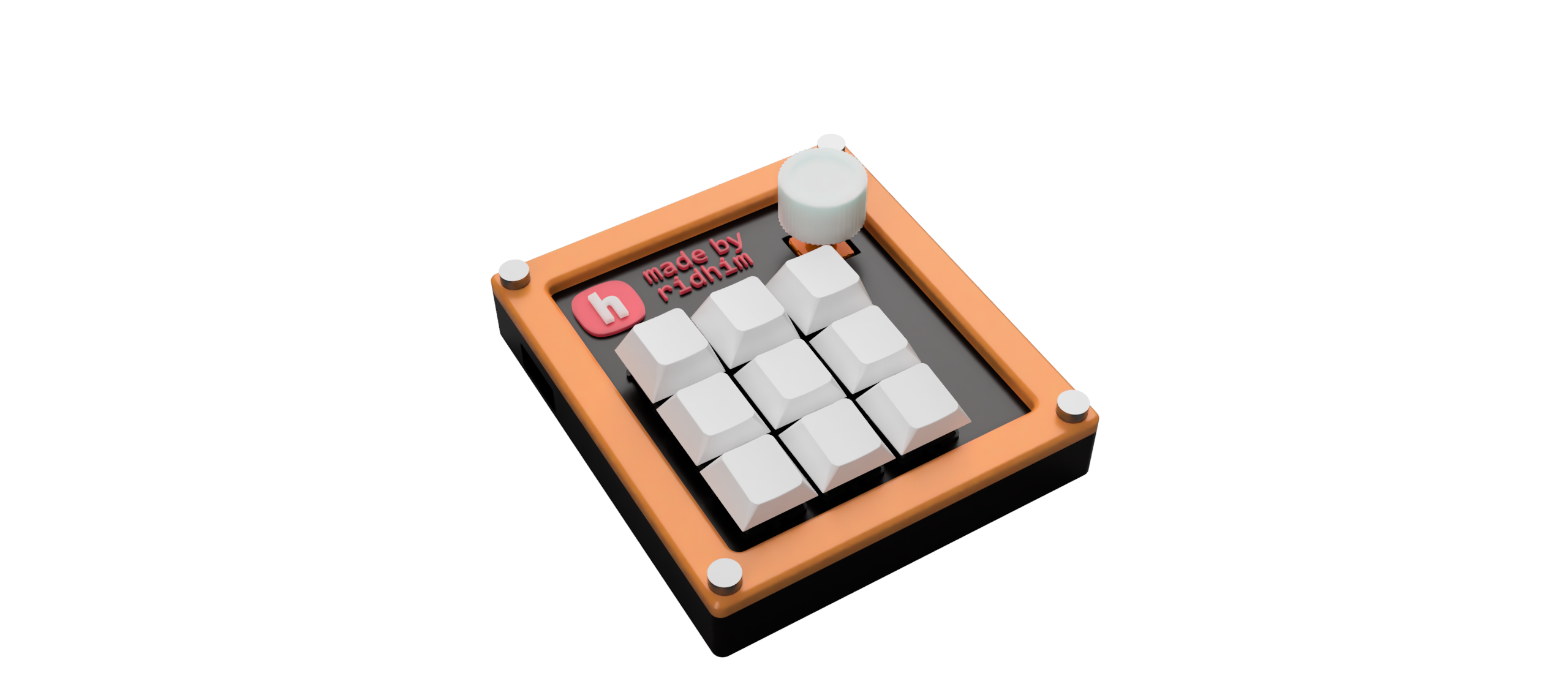

Macropad, from the project README — From the project README

Main components on the Macropad

RaspberryPi_Pico

Macropad bill of materials (BOM)

20 components, 4 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RaspberryPi_Pico	RaspberryPi_Pico_Common_Unspecified	A1
9	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +1
1	RotaryEncoder_Switch	RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm	SW10
9	1N914	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +1

Macropad design files

The KiCad project lives in the RedstoneGuy9248/Macropad repository on GitHub; these links point at the commit this page was built from.

Macropad: common questions

What microcontroller does the Macropad use?

The Macropad is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Macropad PCB?

The Macropad measures 87.5 × 70.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Macropad?

20 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Macropad design files?

From the RedstoneGuy9248/Macropad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Macropad design in my own project?

The repository has no license, so all rights stay with RedstoneGuy9248. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Macropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
