Rom extender
About the Rom extender PCB
Rom extender is an open source PCB design by reinauer, published on GitHub. It is a 2-layer board measuring 37.3 × 60.7 mm, with 5 components from 3 distinct parts.
Other key parts include the 27C160. By type, the board carries 2 ICs, 2 resistors and 1 connector.
It belongs with the retro computing designs in this gallery.
From the project

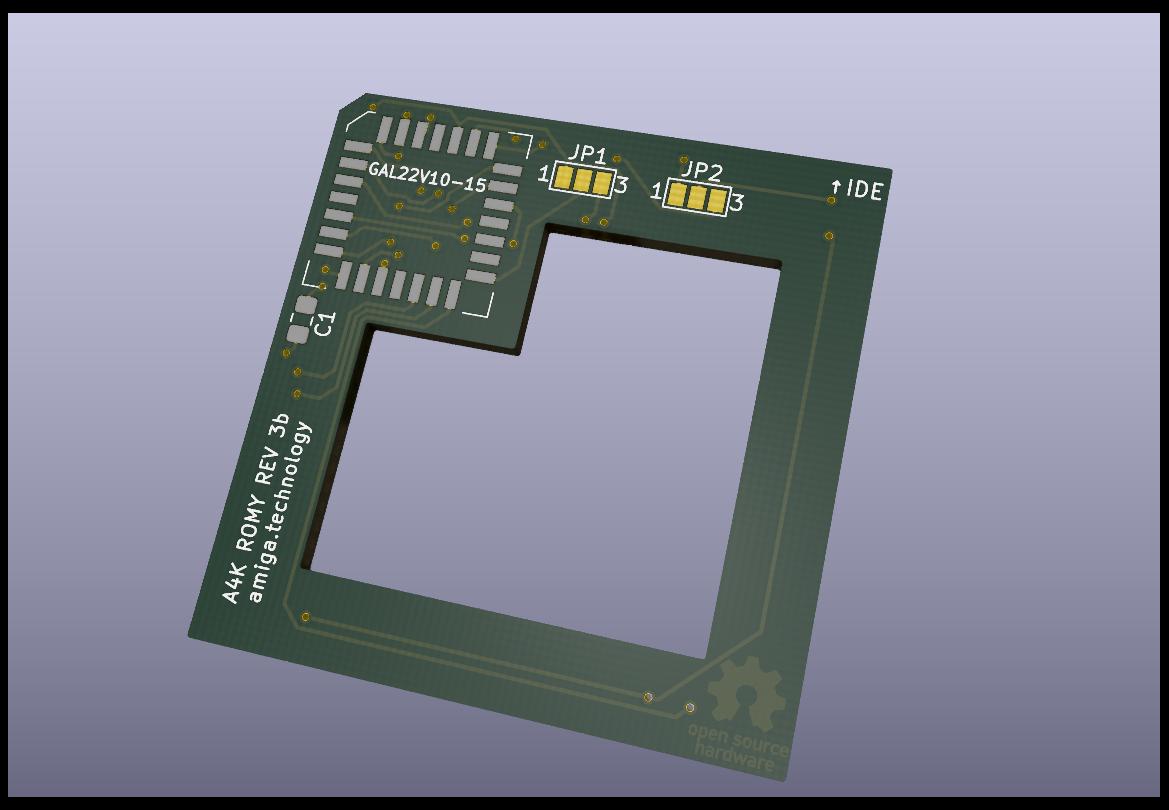

ROMY is a small add-on PCB that enables Amiga 3000 / 4000 computers to use 1MB (or larger) Kickstart chips.
ROMY is a small add-on PCB that enables Amiga 3000 / 4000 computers to use 1MB (or larger) Kickstart chips.
This project aims at iterating and improving the existing Romy designs.
Look in the software directory for a bunch of scripts to create a nice 1MB ROM image for you.
There's also a small program to create parametrized PLCC plug footprints for KiCAD.
The logic directory contains the contents for the GAL 22V10. If you want to build a ROMY yourself, you will need to program this before soldering your GAL down.
Main components on the Rom extender
Rom extender bill of materials (BOM)
5 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 27C160 | DIP-42_W15.24mm_widehole | U175, U176 |
| 1 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | J1 |
| 2 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
Rom extender design files
The KiCad project lives in the reinauer/amiga-romy repository on GitHub; these links point at the commit this page was built from.
Rom extender: common questions
How big is the Rom extender PCB?
The Rom extender measures 37.3 × 60.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rom extender?
5 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rom extender design files?
From the reinauer/amiga-romy repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rom extender design in my own project?
The repository has no license, so all rights stay with reinauer. Use it as a reference, and ask the author before reusing the design.
