Stm32g474-dev board

Rennaafi·stm32g474-dev-board

Stm32g474-dev board layout, top view — open source STM32 board by Rennaafi

About the Stm32g474-dev board

Stm32g474-dev board is an open source STM32 PCB design by Rennaafi, published on GitHub. It is a 4-layer board measuring 66.7 × 66.2 mm, with 58 components from 36 distinct parts.

Its main chip is the STM32G474RETX, from the STM32 family. Other key parts include the AP2112K-3.3, USBLC6-2SC6 and MCP2562FD-E/SN. By type, the board carries 20 capacitors, 12 connectors, 10 resistors, 4 ICs, 4 diodes and 2 crystals.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

4-layer STM32G474RE dev board (Nucleo-64 headers, USB-C, CAN-FD, STDC14) designed in KiCad 9: schematic, PCB layout, Gerbers & BOM

A 4-layer STM32G474RE (LQFP-64) development board designed in KiCad 9. It follows the NUCLEO-64 header layout (ST morpho CN7/CN10 plus Arduino Uno R3 headers) and adds a native USB-C port, a CAN-FD transceiver, an STDC14 debug connector and four corner mounting holes. There is no on-board ST-LINK; debugging uses an external STLINK-V3 on the STDC14 connector.

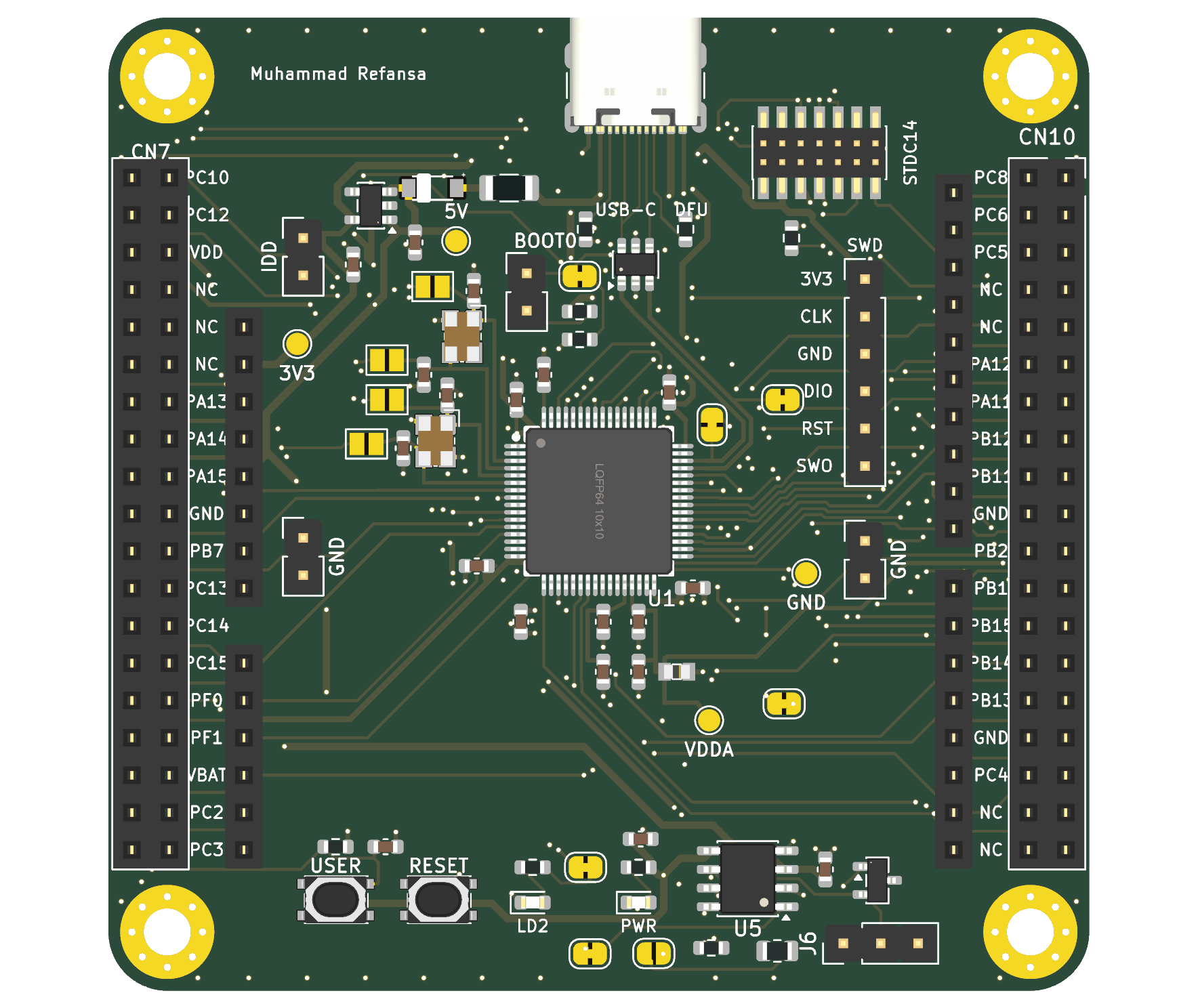

Stm32g474-dev board, from the project README
From the project README

Main components on the Stm32g474-dev board

STM32G474RETXAP2112K-3.3USBLC6-2SC6MCP2562FD-E/SN

Stm32g474-dev board bill of materials (BOM)

58 components, 36 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32G474RETX
STM32G474RETx
U1
1
AP2112K-3.3
U2
1
USBLC6-2SC6
U3
1
MCP2562FD-E/SN
U5
1
Crystal 16 Mhz
Y1
1
Crystal 32.768 Khz
Y2
1
ARD_D8-D15
CN5
1
ARD_POWER
CN6
2
CONN_02X19_ODD_EVEN
Conn_02x19_Odd_Even
CN7, CN10
1
ARD_ANALOG
CN8
1
ARD_D0-D7
CN9
1
USB_C_USB2.0
J1
1
CONN_01X06_PIN
Conn_01x06_Pin
J2
2
GND_HOOK
J3, J4
1
STDC14
J5
1
CAN
J6
1
500M
500m
F1
1
BOOT0
JP5
1
IDD
JP6
1
~
SW1
Show 16 more
QtyPartRefs
1
RESET
SW2
1
D_Schottky
D1
2
Green_LED
D2, D3
1
NUP2105L
D4
1
600
FB1
2
10U
10u
C1, C2
11
100N
100n
C3, C4, C5, C6, C8, C10, C12, C17 +3
1
4.7U
4.7u
C7
2
1u
C9, C11
2
12P
12p
C13, C14
2
5P1
5p1
C15, C16
2
5K1
5k1
R1, R2
3
1k
R3, R5, R7
3
10K
10k
R4, R6, R12
1
100
R11
1
120
R13

Stm32g474-dev board design files

The KiCad project lives in the Rennaafi/stm32g474-dev-board repository on GitHub; these links point at the commit this page was built from.

Stm32g474-dev board: common questions

What microcontroller does the Stm32g474-dev board use?

The Stm32g474-dev board is built around the STM32G474RETX, from the STM32 family.

How big is the Stm32g474-dev board?

The Stm32g474-dev board measures 66.7 × 66.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Stm32g474-dev board?

58 components, from 36 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32g474-dev board design files?

From the Rennaafi/stm32g474-dev-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32g474-dev board design in my own project?

The repository has no license, so all rights stay with Rennaafi. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Stm32g474-dev board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
