Pico 2HP Controls
About the Pico 2HP Controls PCB
Pico 2HP Controls is an open source PCB design by rheslip, published on GitHub. It is a 2-layer board measuring 10 × 110.5 mm, with 13 components from 6 distinct parts.
By type, the board carries 6 connectors, 1 switch, 1 diode and 1 capacitor.
It belongs with the audio and displays & leds designs in this gallery.
From the project

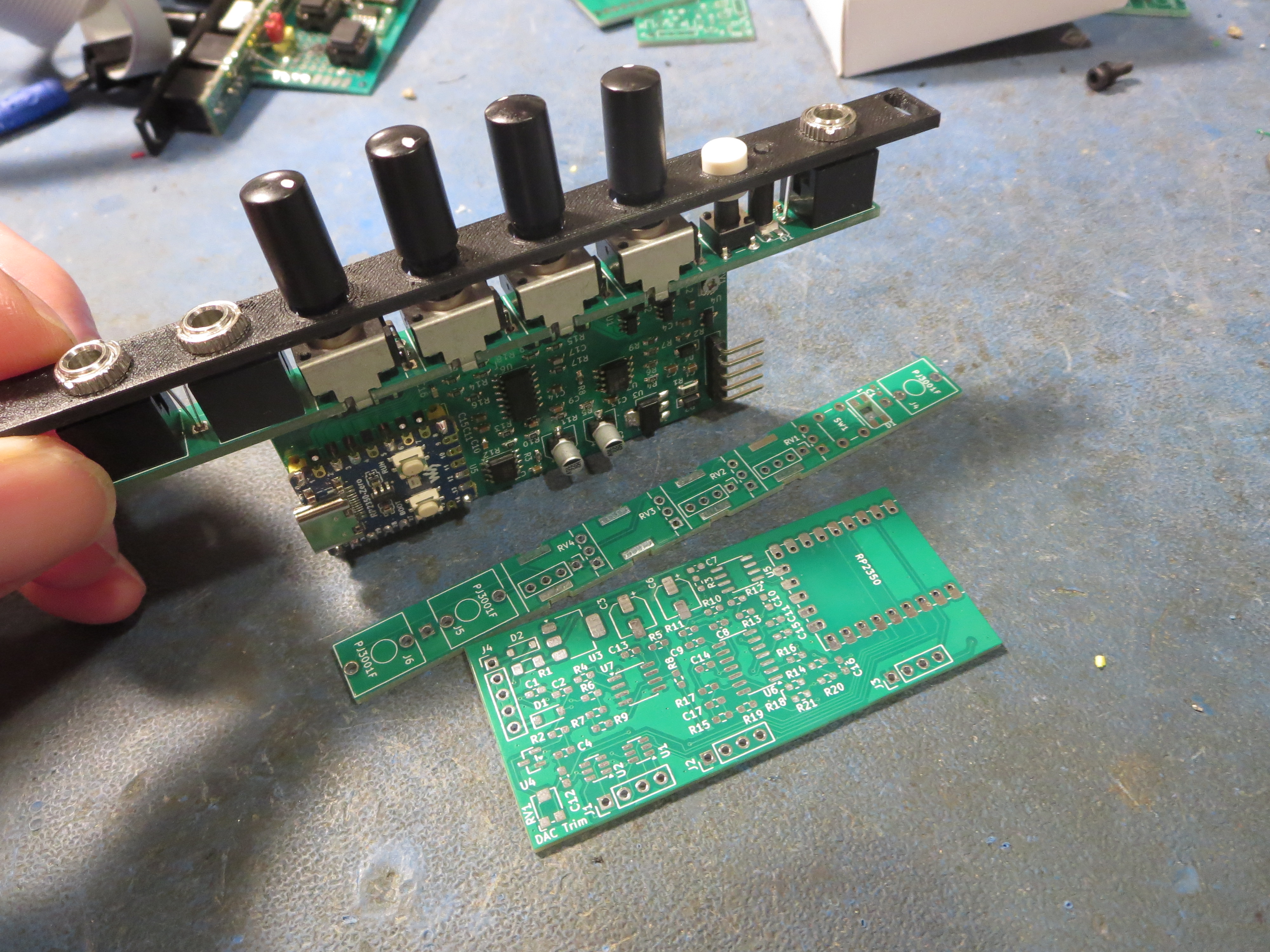

2HP Eurorack module based on Raspberry Pi Pico 2
December 2025 - added Version 1.0 2HPico KiCad design files, BOM, Gerbers for main board and panel board and 3D printable panel.
Jan 28/2025 - added Version 1.0 2HPico DSP PCB design files and FR4 front panel design files and gerbers.
Feb 16/2026 - JLCPCB assembly files are now verifed. Minor BOM changes to 2HPico DSP as a result of further testing.
April 13/2026 - added 4HPico DSP PCB files. PCB fabbed, tested and working with 1 jumper.
Pico 2HP Controls bill of materials (BOM)
13 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J1, J2, J3 |
| 3 | PJ3001F | AudioJack_3.5mm | J4, J5, J6 |
| 4 | R_Potentiometer_US | Potentiometer_RV09_10HP | RV1, RV2, RV3, RV4 |
| 1 | SW_SPST | SW_PUSH_6mm | SW1 |
| 1 | SK6812E-MINI | LED_OPSCO_SK6812_MINI-E_5.0x5.0mm_P3.1mm | D1 |
| 1 | .1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C1 |
Pico 2HP Controls design files
The KiCad project lives in the rheslip/2HPico-Eurorack-Module-Hardware repository on GitHub; these links point at the commit this page was built from.
Pico 2HP Controls: common questions
How big is the Pico 2HP Controls PCB?
The Pico 2HP Controls measures 10 × 110.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pico 2HP Controls?
13 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pico 2HP Controls design files?
From the rheslip/2HPico-Eurorack-Module-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Pico 2HP Controls design in my own project?
The repository has no license, so all rights stay with rheslip. Use it as a reference, and ask the author before reusing the design.
