Panel
About the Panel PCB
Panel is an open source PCB design by richardeoin, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 28 components from 18 distinct parts.
Other key parts include the TG-5006CJ, AX5243 and RFM22. By type, the board carries 16 capacitors, 7 inductors, 3 ICs, 1 diode and 1 resistor.
It belongs with the rf & radio designs in this gallery.
From the project
This folder contains the schematic files for the ax-breakout header board.
This folder contains the schematic files for the ax-breakout header board.

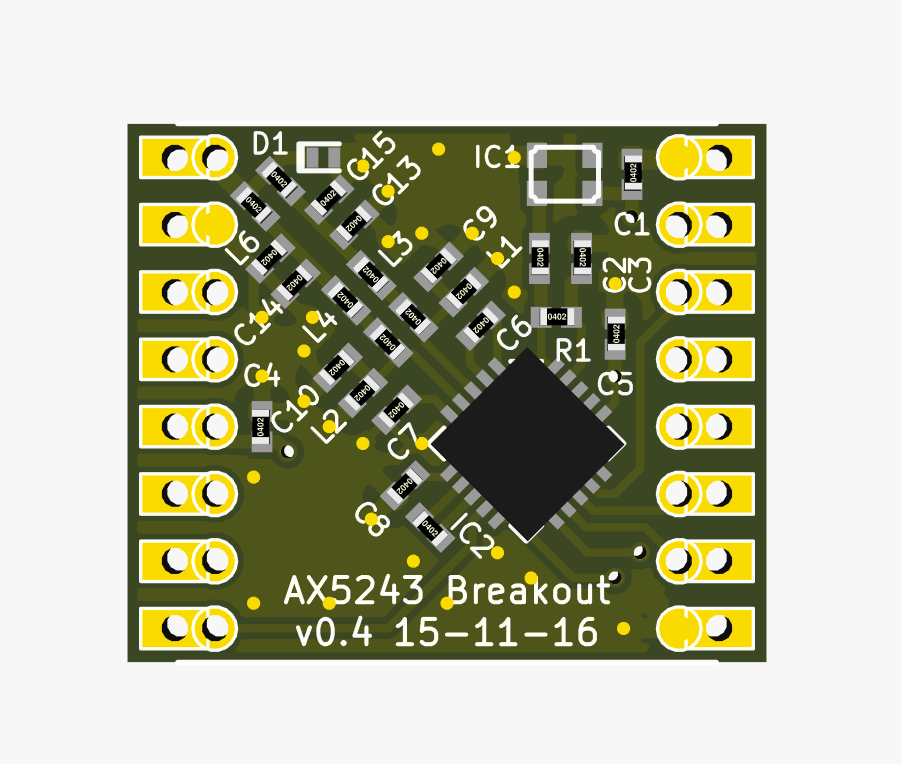

This board breaks out a single AX5243 radio to 2mm pitch pins. Not yet tested
The differential match can be populated for various frequencies, using the values found in the AX5243 datasheet. Usually this is 144MHz, 434MHz or 868MHz. Lext can be populated so that frequencies outside of 400-525MHz / 800-1050MHz can be used; usually this is 22nH for 140-154MHz.
Main components on the Panel
Panel bill of materials (BOM)
28 components, 18 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TG-5006CJ | TG-5006CJ | IC1 |
| 1 | AX5243 | QFN-20-EP-AX | IC2 |
| 1 | RFM22 | RFM22_COMPATIBLE | IC3 |
| 1 | TVS_DIODE | TSLP-2-17 | D1 |
| 2 | 68nH | 0402 | L1, L2 |
| 2 | 47nH | 0402 | L3, L4 |
| 2 | 27nH | 0402 | L5, L6 |
| 1 | 22nH | 0402 | L7 |
| 1 | 1µF | 0402 | C1 |
| 2 | 1nF | 0402 | C2, C3 |
| 1 | 4.7µF | 0402 | C4 |
| 3 | 100nF | 0402 | C5, C6, C7 |
| 1 | 39pF | 0402 | C8 |
| 2 | 4.3pF | 0402 | C9, C10 |
| 2 | 2.7pF | 0402 | C11, C12 |
| 2 | 8.2pF | 0402 | C13, C14 |
| 2 | 5.1pF | 0402 | C15, C16 |
| 1 | 1kΩ | 0402 | R1 |
Panel design files
The KiCad project lives in the richardeoin/ax repository on GitHub; these links point at the commit this page was built from.
Panel: common questions
How big is the Panel PCB?
The Panel measures 100 × 100 mm, has 2 copper layers and is 1 mm thick.
How many components are on the Panel?
28 components, from 18 distinct parts. The full bill of materials is listed on this page.
Where can I download the Panel design files?
From the richardeoin/ax repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Panel design in my own project?
The repository has no license, so all rights stay with richardeoin. Use it as a reference, and ask the author before reusing the design.
