Gotek-Floppy-Disk-Emulator-V2

RichardRozehnal·Gotek-Floppy-Disk-Emulator-V2

Gotek-Floppy-Disk-Emulator-V2 PCB layout, top view — open source STM32 board by RichardRozehnal

About the Gotek-Floppy-Disk-Emulator-V2 PCB

Gotek-Floppy-Disk-Emulator-V2 is an open source STM32 PCB design by RichardRozehnal, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 90 × 60 mm, with 62 components from 25 distinct parts.

Its main chip is the STM32F105RBTx, from the STM32 family. Other key parts include the AMS1117-3.3, STMPS2141 and 74HCT04. By type, the board carries 27 resistors, 13 capacitors, 7 transistors, 5 connectors, 4 ICs and 2 switches.

It belongs with the displays & leds and retro computing designs in this gallery.

From the project

Floppy disk emulator for old computers and machines, Amiga, Atari ST, etc.

Emulátor disketové mechaniky starých počítačů a různých zařízení. Software se do počítače nahrává z obrazu originálního disku (např. ADF pro Amigu), který je uložen na USB flash disku. Tato verze hardwaru využívá firmware FlashFloppy, který přidává spoustu nových funkcí a vylepšení oproti standardnímu Goteku. Na uvedém odkazu tvůrce, najdete detailní popisy všech funkcí a nastavení a také nejnovější firmware.

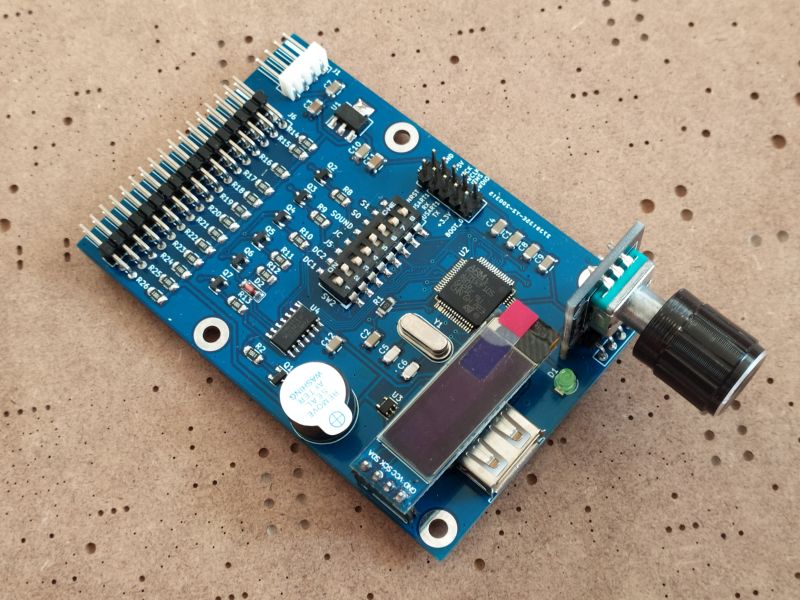

Gotek-Floppy-Disk-Emulator-V2, from the project README
From the project README

Main components on the Gotek-Floppy-Disk-Emulator-V2

AMS1117-3.3STM32F105RBTxSTMPS214174HCT04

Gotek-Floppy-Disk-Emulator-V2 bill of materials (BOM)

62 components, 25 distinct parts.

QtyPartRefs
1
AMS1117-3.3
U1
1
STM32F105RBTx
U2
1
STMPS2141
U3
1
74HCT04
U4
1
MMBT2222
Q1
6
BSS123
Q2, Q3, Q4, Q5, Q6, Q7
1
8MHz
Y1
1
Power Connector
J1
1
OLED Display 0.91" Module
J2
1
USB_A
J3
1
Programming Connector
J5
1
Floppy Data Connector
J6
1
5V Active Buzzer 12mm
BZ1
1
KY040 Rotary Encoder Module
SW1
1
DIP Switch
SW2
1
LED Green
D1
1
1N4148
D2
8
100nF
C1, C2, C4, C7, C8, C9, C10, C12
2
10uF
C3, C11
2
22pF
C5, C6
Show 5 more
QtyPartRefs
1
4.7uF/16V
C13
1
4K7
R1
22
1K
R2, R3, R7, R8, R9, R10, R11, R12 +14
2
10K
R4, R27
2
22R
R5, R6

Gotek-Floppy-Disk-Emulator-V2 design files

The KiCad project lives in the RichardRozehnal/Gotek-Floppy-Disk-Emulator-V2 repository on GitHub; these links point at the commit this page was built from.

Gotek-Floppy-Disk-Emulator-V2: common questions

What microcontroller does the Gotek-Floppy-Disk-Emulator-V2 use?

The Gotek-Floppy-Disk-Emulator-V2 is built around the STM32F105RBTx, from the STM32 family.

How big is the Gotek-Floppy-Disk-Emulator-V2 PCB?

The Gotek-Floppy-Disk-Emulator-V2 measures 90 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Gotek-Floppy-Disk-Emulator-V2?

62 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the Gotek-Floppy-Disk-Emulator-V2 design files?

From the RichardRozehnal/Gotek-Floppy-Disk-Emulator-V2 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Gotek-Floppy-Disk-Emulator-V2 design in my own project?

Yes, under the terms of its GPL-3.0 license, which RichardRozehnal chose for the repository.

Can I test firmware for the Gotek-Floppy-Disk-Emulator-V2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
