IR-SENSOR PCB layout, top view — open source board by riteshh27

About the IR-SENSOR PCB

IR-SENSOR is an open source PCB design by riteshh27, published on GitHub under the MIT license. It is a 2-layer board measuring 51.1 × 15.5 mm, with 9 components from 7 distinct parts.

By type, the board carries 3 diodes, 3 resistors, 1 IC and 1 connector.

It belongs with the sensors designs in this gallery.

From the project

A KiCad hardware project for a simple IR (infrared) obstacle/proximity sensor module, featuring an IR emitter/receiver pair, a comparator threshold circuit, sensitivity adjustment, and status indication.

A KiCad hardware project for a simple IR (infrared) obstacle/proximity sensor module, featuring an IR emitter/receiver pair, a comparator threshold circuit, sensitivity adjustment, and status indication.

- D2 is the IR emitter LED, wired in series with current-limiting resistor R2 directly across VCC/GND — it's always on, flooding the area ahead with IR light. - D1 is the IR receiver (photodiode/phototransistor), in series with R1 forming a voltage divider. The midpoint feeds the + input of comparator U1. - RV1 (10k trimmer potentiometer) forms a second divider between VCC and GND, with its…

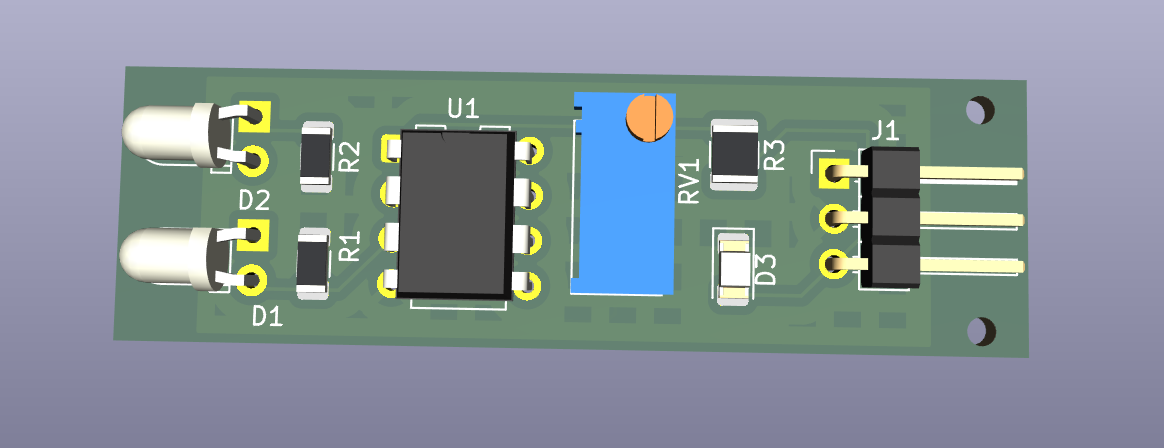

IR-SENSOR, from the project README
From the project README

IR-SENSOR bill of materials (BOM)

9 components, 7 distinct parts.

QtyPartRefs
1
~
U1
1
~
J1
1
10k
RV1
2
LED
D1, D2
1
LED
D3
2
10k
R1, R2
1
10k
R3

IR-SENSOR design files

The KiCad project lives in the riteshh27/IR-SENSOR-PCB repository on GitHub; these links point at the commit this page was built from.

IR-SENSOR: common questions

How big is the IR-SENSOR PCB?

The IR-SENSOR measures 51.1 × 15.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the IR-SENSOR?

9 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the IR-SENSOR design files?

From the riteshh27/IR-SENSOR-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the IR-SENSOR design in my own project?

Yes, under the terms of its MIT license, which riteshh27 chose for the repository.
