About the AmigaDualFloppyInterface PCB
AmigaDualFloppyInterface is an open source PCB design by roddersuk, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 56 × 71.6 mm, with 23 components from 17 distinct parts.
Other key parts include the 74LS38, 74LS74 and 74LS157. By type, the board carries 8 connectors, 8 resistors, 3 ICs, 3 capacitors and 1 transistor.
It belongs with the retro computing designs in this gallery.
From the project
Amiga 500 6A Dual Internal Floppy Drive Interface
N.B. I have only tested that this board works with an Issue 6A motherboard
I have recently acquired an Amiga 500 and wanted to expand its capability by adding a Gotek drive but didn't want to lose the internal floppy drive. I soon came across some of the restrictions of the A500 design which basically meant that if you have the Gotek as the primary, bootable drive the internal floppy drive (df1) wouldn't work. I could have course have gone down the external floppy route but I didn't want all that stuff hanging out the back of the Amiga.

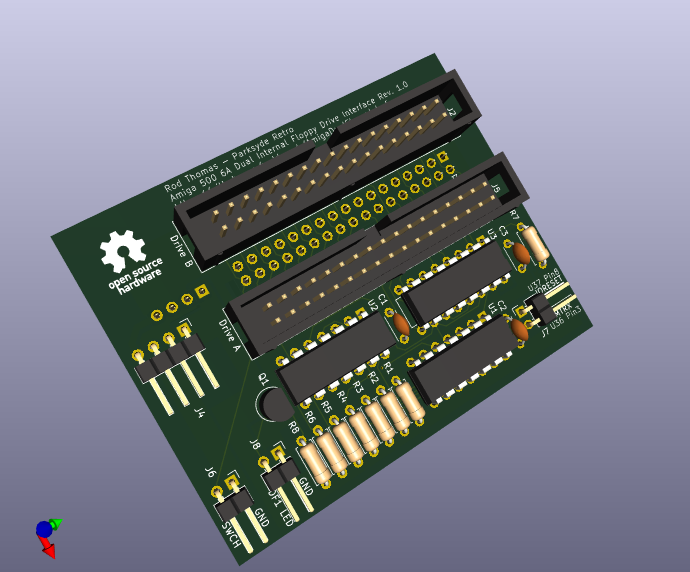

Main components on the AmigaDualFloppyInterface
AmigaDualFloppyInterface bill of materials (BOM)
23 components, 17 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS38 | DIP-14_W7.62mm | U1 |
| 1 | 74LS74 | DIP-14_W7.62mm | U2 |
| 1 | 74LS157 | DIP-16_W7.62mm | U3 |
| 1 | 2N3906 | TO-92_Inline | Q1 |
| 1 | Floppy Power In | PinSocket_1x04_P2.54mm_Vertical | J1 |
| 1 | Floppy B | IDC-Header_2x17_P2.54mm_Vertical | J2 |
| 1 | Motherboard | PinSocket_2x17_P2.54mm_Vertical | J3 |
| 1 | Floppy Power Out | PinHeader_1x04_P2.54mm_Horizontal | J4 |
| 1 | Floppy A | IDC-Header_2x17_P2.54mm_Vertical | J5 |
| 1 | Drive Switch | PinHeader_1x02_P2.54mm_Horizontal | J6 |
| 1 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Horizontal | J7 |
| 1 | DF1 Activity | PinHeader_1x02_P2.54mm_Horizontal | J8 |
| 3 | 100nF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1, C2, C3 |
| 5 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2, R3, R4, R7 |
| 1 | 12k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R5 |
| 1 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R6 |
| 1 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R8 |
AmigaDualFloppyInterface design files
The KiCad project lives in the roddersuk/AmigaDualFloppyInterface repository on GitHub; these links point at the commit this page was built from.
AmigaDualFloppyInterface: common questions
How big is the AmigaDualFloppyInterface PCB?
The AmigaDualFloppyInterface measures 56 × 71.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the AmigaDualFloppyInterface?
23 components, from 17 distinct parts. The full bill of materials is listed on this page.
Where can I download the AmigaDualFloppyInterface design files?
From the roddersuk/AmigaDualFloppyInterface repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the AmigaDualFloppyInterface design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which roddersuk chose for the repository.
