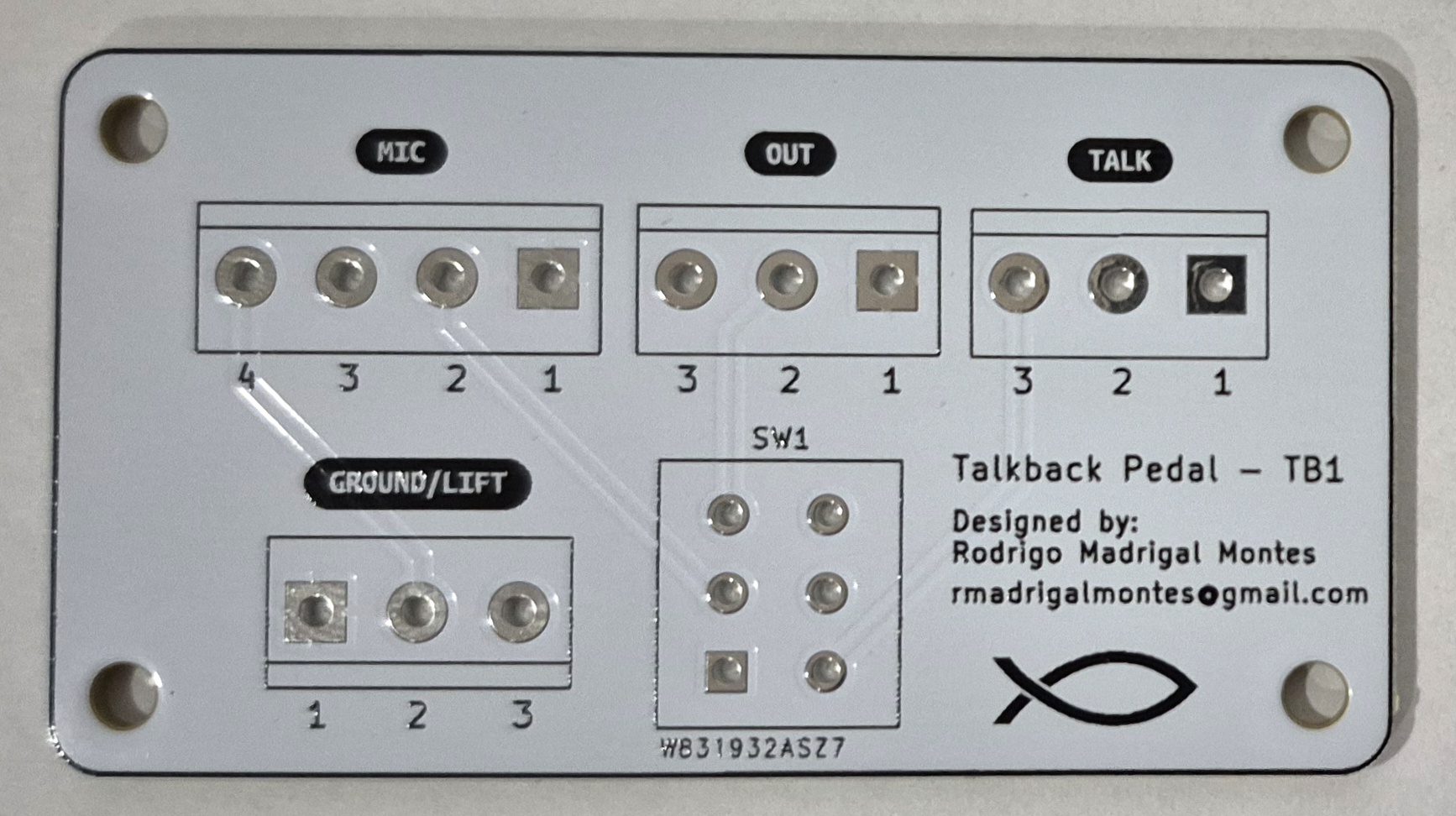

TalkbackPedal
About the TalkbackPedal PCB
TalkbackPedal is an open source PCB design by RoMadrigal, published on GitHub under the MIT license. It is a 2-layer board measuring 68.5 × 37.4 mm, with 5 components from 5 distinct parts.
By type, the board carries 4 connectors and 1 switch.
It belongs with the audio designs in this gallery.
From the project
PCB de un pedal Talkback con una entrada de audio y dos salidas.
Este repositorio y sus contenidos fueron diseñados por:
El proyecto presentado fue posible gracias al valioso respaldo de PCBWay, a quienes extiendo mi más sincero agradecimiento. Las PCBs entregadas mostraron ser de una excelente calidad durante las pruebas realizadas, además de que el acabado es impecable, brindando exactamente el resultado que esperaba.
De igual manera agradezco al equipo encargado de la atención al cliente, los cuales están siempre disponibles para brindar el apoyo solicitado de forma rápida y asertiva.
TalkbackPedal bill of materials (BOM)
5 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Microphone | TerminalBlock_bornier-4_P5.08mm | J1 |
| 1 | Talk | TerminalBlock_bornier-3_P5.08mm | J2 |
| 1 | Out | TerminalBlock_bornier-3_P5.08mm | J3 |
| 1 | Ground/Lift | TerminalBlock_bornier-3_P5.08mm | J4 |
| 1 | SW_Push_DPDT | SW_PUSH_E-Switch_FS5700DP_DPDT | SW1 |
TalkbackPedal design files
The KiCad project lives in the RoMadrigal/TalkbackPedal-PCB repository on GitHub; these links point at the commit this page was built from.
TalkbackPedal: common questions
How big is the TalkbackPedal PCB?
The TalkbackPedal measures 68.5 × 37.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TalkbackPedal?
5 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the TalkbackPedal design files?
From the RoMadrigal/TalkbackPedal-PCB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TalkbackPedal design in my own project?
Yes, under the terms of its MIT license, which RoMadrigal chose for the repository.
