WalkieTalkie-ChargerPCB-IE0313 PCB layout, top view — open source board by RoMadrigal

About the WalkieTalkie-ChargerPCB-IE0313 PCB

WalkieTalkie-ChargerPCB-IE0313 is an open source PCB design by RoMadrigal, published on GitHub under the MIT license. It is a 2-layer board measuring 64 × 31 mm, with 9 components from 5 distinct parts.

By type, the board carries 5 diodes, 2 connectors, 1 capacitor and 1 resistor.

It belongs with the power & battery designs in this gallery.

From the project

Repositorio para la tarea del curso IE0313 sobre el diseño de una PCB de una fuente de alimentación para un Walkie-Talkie.

Repositorio para la tarea del curso IE0313 sobre el diseño de una PCB de una fuente de alimentación para un Walkie-Talkie. Contiene el circuito esquemático, el diseño de la PCB en KiCad y documentación sobre los componentes a utilizar, el procedimiento de diseño y otros detalles.

Este repositorio y sus contenidos fueron diseñados durante el curso IE0313 durante el periodo II-2024 por los siguientes integrantes del equipo:

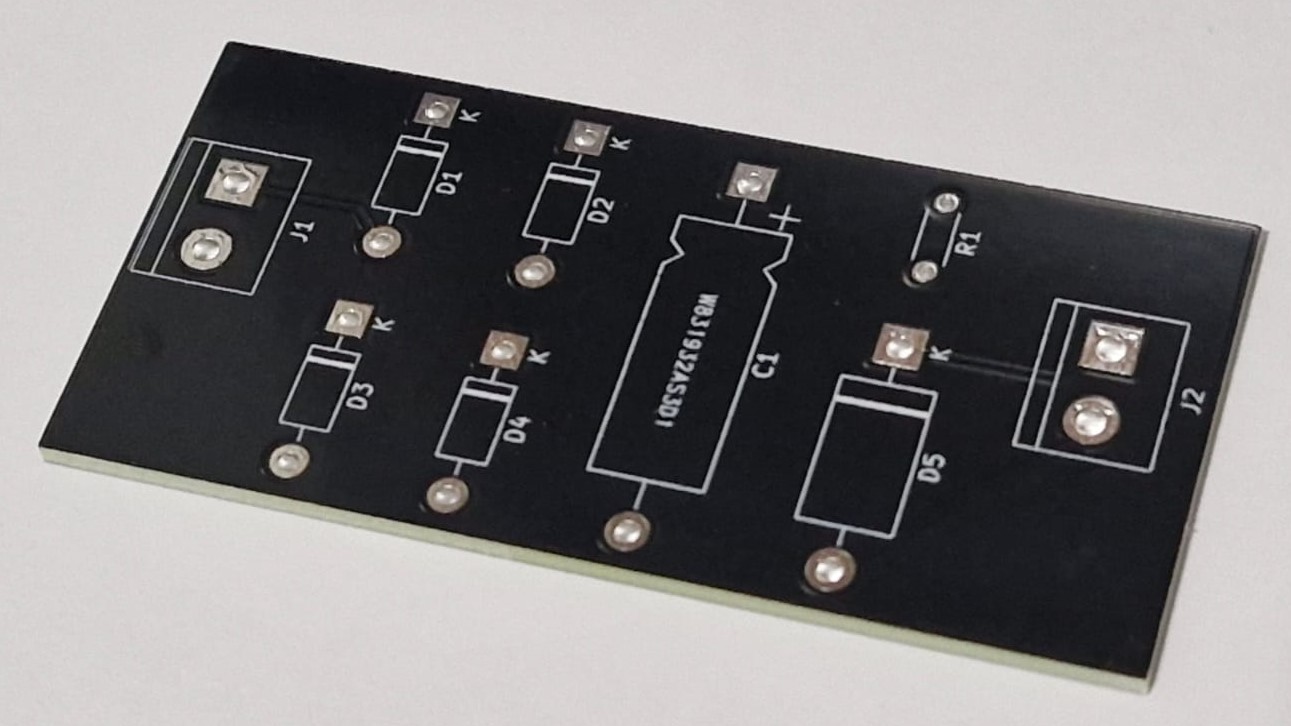

WalkieTalkie-ChargerPCB-IE0313, from the project README
From the project README

WalkieTalkie-ChargerPCB-IE0313 bill of materials (BOM)

9 components, 5 distinct parts.

QtyPartRefs
2
Screw_Terminal_01x02
J1, J2
4
1N4007
D1, D2, D3, D4
1
1N5338B
D5
1
1.1 mF
C1
1
6
R1

WalkieTalkie-ChargerPCB-IE0313 design files

The KiCad project lives in the RoMadrigal/WalkieTalkie-ChargerPCB-IE0313 repository on GitHub; these links point at the commit this page was built from.

WalkieTalkie-ChargerPCB-IE0313: common questions

How big is the WalkieTalkie-ChargerPCB-IE0313 PCB?

The WalkieTalkie-ChargerPCB-IE0313 measures 64 × 31 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the WalkieTalkie-ChargerPCB-IE0313?

9 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the WalkieTalkie-ChargerPCB-IE0313 design files?

From the RoMadrigal/WalkieTalkie-ChargerPCB-IE0313 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the WalkieTalkie-ChargerPCB-IE0313 design in my own project?

Yes, under the terms of its MIT license, which RoMadrigal chose for the repository.
