Bluetooth jammer experimento

Romemu1810-tech·bluetooth_jammer_experimento·KiCad files/bt_jammer_1.0/bt_jammer_1.0.kicad_pcb

Bluetooth jammer experimento PCB layout, top view — open source ESP32 board by Romemu1810-tech

About the Bluetooth jammer experimento PCB

Bluetooth jammer experimento is an open source ESP32 PCB design by Romemu1810-tech, published on GitHub. It is a 2-layer board measuring 76 × 61.5 mm, with 8 components from 6 distinct parts.

Its main chip is the ESP32-DEVKITC-32U, from the ESP32 family. Other key parts include the nRF24L01+PA+LNA. By type, the board carries 3 ICs, 2 capacitors, 1 switch, 1 diode and 1 resistor.

It belongs with the iot & wireless and rf & radio designs in this gallery.

From the project

Proyecto personal y experimental para el aprendizaje de electrónica, RF y comunicaciones Bluetooth, desarrollado con fines educativos y de investigación.

Proyecto personal desarrollado con fines educativos, experimentales y de aprendizaje, orientado al estudio de Bluetooth, radiofrecuencia (RF), electrónica, diseño de PCB y sistemas inalámbricos.

El proyecto surge como parte de un proceso de aprendizaje práctico sobre el comportamiento de las comunicaciones inalámbricas y los fenómenos relacionados con la interferencia en radiofrecuencia.

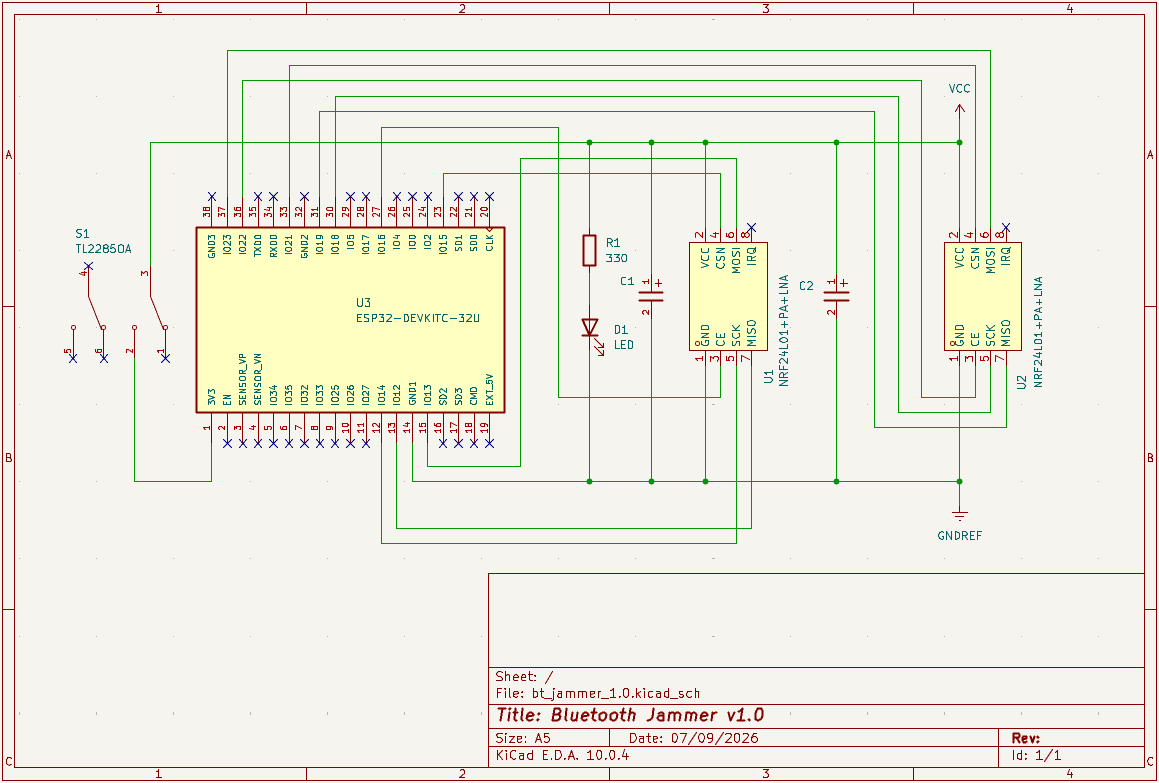

Bluetooth jammer experimento, from the project README
From the project README

Main components on the Bluetooth jammer experimento

nRF24L01+PA+LNAESP32-DEVKITC-32U

Bluetooth jammer experimento bill of materials (BOM)

8 components, 6 distinct parts.

QtyPartRefs
2
nRF24L01+PA+LNA
NRF24L01+PA+LNA
null
U1, U2
1
ESP32-DEVKITC-32U
U3
1
TL2285OA
S1
1
LED
D1
2
WCAP-ATG8_6.3X11
C1, C2
1
330
R1

Bluetooth jammer experimento design files

The KiCad project lives in the Romemu1810-tech/bluetooth_jammer_experimento repository on GitHub; these links point at the commit this page was built from.

Bluetooth jammer experimento: common questions

What microcontroller does the Bluetooth jammer experimento use?

The Bluetooth jammer experimento is built around the ESP32-DEVKITC-32U, from the ESP32 family.

How big is the Bluetooth jammer experimento PCB?

The Bluetooth jammer experimento measures 76 × 61.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bluetooth jammer experimento?

8 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bluetooth jammer experimento design files?

From the Romemu1810-tech/bluetooth_jammer_experimento repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bluetooth jammer experimento design in my own project?

The repository has no license, so all rights stay with Romemu1810-tech. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Bluetooth jammer experimento without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
