About the MAX17262-breakout

MAX17262-breakout is an open source PCB design by rroels, published on GitHub under the MIT license. It is a 2-layer board measuring 60.6 × 27.5 mm, with 10 components from 9 distinct parts.

Other key parts include the MAX17262HEWL+T. By type, the board carries 5 connectors, 2 capacitors, 2 resistors and 1 IC.

It belongs with the power & battery and dev boards & breakouts designs in this gallery.

From the project

MAX17262 breakout board

I wanted to use the MAX17262 ultra-low power fuel-gauge IC in a project. However, I wanted to play around with it (at both hardware and software level), before incorporating it into a real design.

This repository contains the design for a breakout board for the MAX17262. This board allowed me to experiment with the various hardware and software setups of this IC.

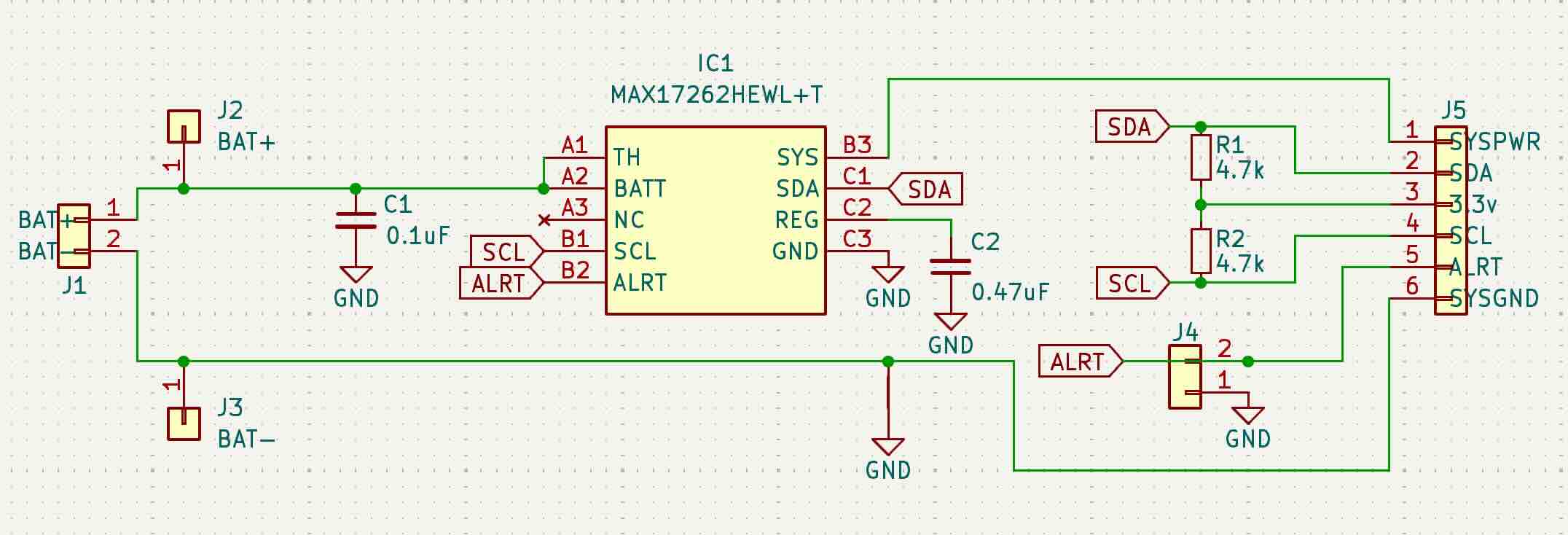

MAX17262-breakout, from the project README
From the project README

Main components on the MAX17262-breakout

MAX17262HEWL+T

MAX17262-breakout bill of materials (BOM)

10 components, 9 distinct parts.

QtyPartRefs
1
MAX17262HEWL+T
IC1
1
Conn_01x02
J1
1
BAT+
J2
1
BAT-
J3
1
Conn_01x02
J4
1
Conn_01x06
J5
1
0.1uF
C1
1
0.47uF
C2
2
4.7k
R1, R2

MAX17262-breakout design files

The KiCad project lives in the rroels/MAX17262-breakout repository on GitHub; these links point at the commit this page was built from.

MAX17262-breakout: common questions

How big is the MAX17262-breakout?

The MAX17262-breakout measures 60.6 × 27.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MAX17262-breakout?

10 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the MAX17262-breakout design files?

From the rroels/MAX17262-breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the MAX17262-breakout design in my own project?

Yes, under the terms of its MIT license, which rroels chose for the repository.
