About the NPM1300-breakout

NPM1300-breakout is an open source PCB design by rroels, published on GitHub. It is a 2-layer board measuring 40 × 29 mm, with 23 components from 14 distinct parts.

Other key parts include the NPM1300-QEAA-R. By type, the board carries 9 capacitors, 6 connectors, 3 diodes, 3 resistors, 1 IC and 1 inductor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

nPM1300 Breakout Board

This is a breakout board for the Nordic nPM1300 Power Management IC.

https://www.nordicsemi.com/Products/nPM1300

In this design, the nPM1300 is configured like this:

BUCK1 disabled BUCK2 enabled, for converting battery or USB input to 3.3V 2 load switches at 3.3V (LS1 and LS2) no LDO 3 LEDs I2C interface

The Gerber file is in this repository (kicad/gerbers/nPM1300-breakout.zip). Simply upload this file a PCB manufacturer of your choice (JLPCB, PCBWay, ...), and you they will make it for you for as low as \$5 for 5 pieces (with the cheapest shipping option, which can take a few weeks).

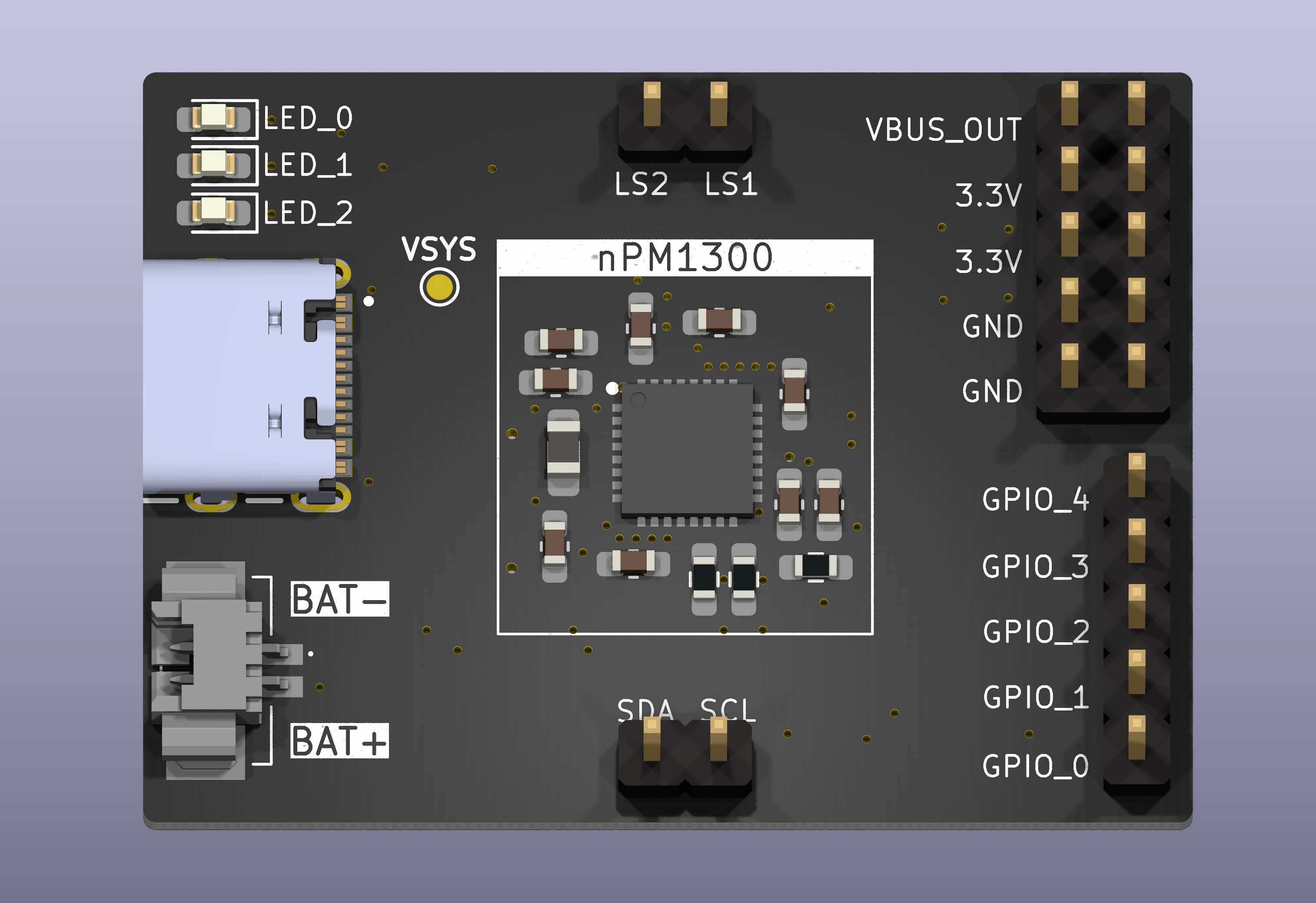

NPM1300-breakout, from the project README — From the project README

Main components on the NPM1300-breakout

NPM1300-breakout bill of materials (BOM)

23 components, 14 distinct parts.

Qty	Part	Footprint	Refs
1	NPM1300-QEAA-R	QFN50P500X500X90-33N	IC1
1	USB4105-GF-A	GCT_USB4105-GF-A	J1
1	53261-0271	532610271	J2
1	Conn_01x05	PinHeader_1x05_P2.54mm_Vertical	J3
2	Conn_01x02	PinHeader_1x02_P2.54mm_Vertical	J4, J6
1	Conn_01x03	PinHeader_2x05_P2.54mm_Vertical	J5
3	LED	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	D4, D5, D6
1	2.2uH	L_0805_2012Metric_Pad1.05x1.20mm_HandSolder	L1
4	1uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C1, C4, C5, C6
1	2.2uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C2
3	10uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C3, C7, C8
1	100nF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C9
1	300K	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R1
2	10K	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R2, R3

NPM1300-breakout design files

The KiCad project lives in the rroels/nPM1300-breakout repository on GitHub; these links point at the commit this page was built from.

Layoutkicad/nPM1300-breakout.kicad_pcb
Schematickicad/nPM1300-breakout.kicad_sch

NPM1300-breakout: common questions

How big is the NPM1300-breakout?

The NPM1300-breakout measures 40 × 29 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the NPM1300-breakout?

23 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the NPM1300-breakout design files?

From the rroels/nPM1300-breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the NPM1300-breakout design in my own project?

The repository has no license, so all rights stay with rroels. Use it as a reference, and ask the author before reusing the design.
