ECU adapter

rusefi·custom-board-bundle-sample-fork-of-rusefi·hardware/Breakout_64pin_176122-6-Connector/176122-6.kicad_pcb

ECU adapter PCB layout, top view — open source board by rusefi

About the ECU adapter PCB

ECU adapter is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 137.2 × 41.5 mm, with 25 components from 5 distinct parts.

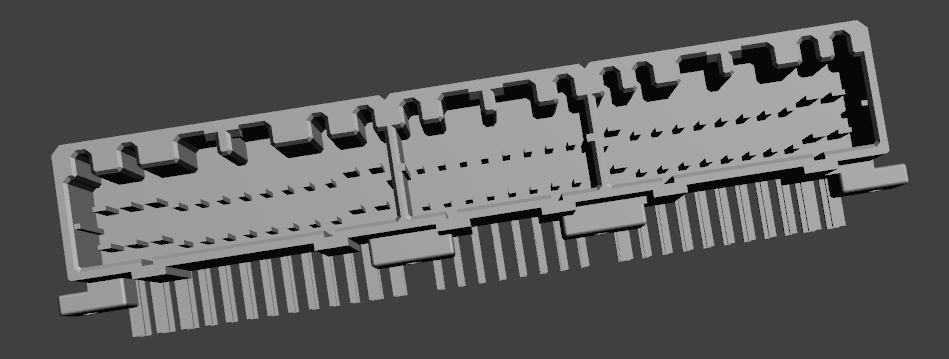

ECU adapter, from the project README
From the project README

ECU adapter bill of materials (BOM)

25 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
4
CONN_3
P1, P2, P13, P14
4
Conn_01x04_Male
P3, P4, P42, P43
4
CONN_1
P7, P8, P19, P20
1
0176122-06
P25
12
CONN_8
P26, P27, P28, P29, P30, P31, P32, P33 +4

ECU adapter design files

The KiCad project lives in the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub; these links point at the commit this page was built from.

ECU adapter: common questions

How big is the ECU adapter PCB?

The ECU adapter measures 137.2 × 41.5 mm, has 2 copper layers and is 1.6002 mm thick.

How many components are on the ECU adapter?

25 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ECU adapter design files?

From the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the ECU adapter design in my own project?

The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
