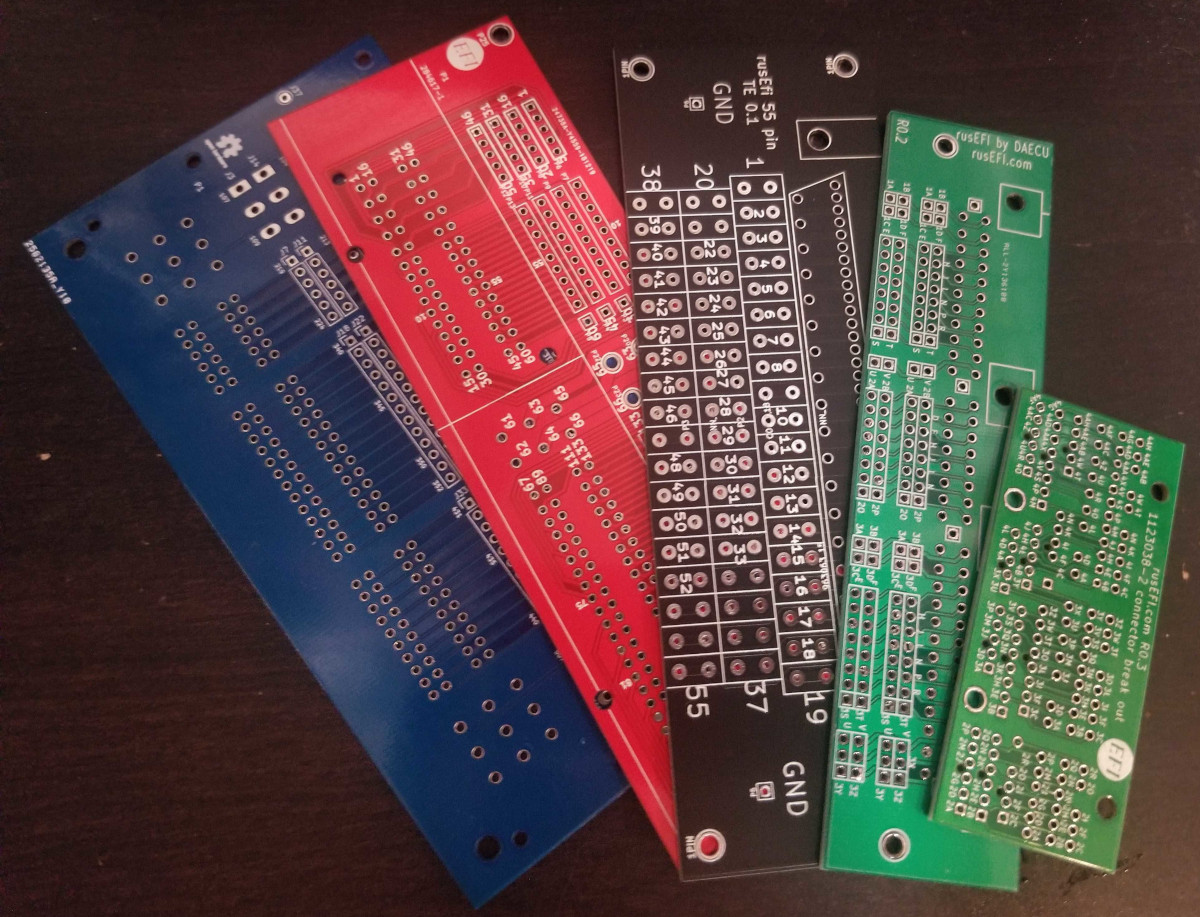

Eecv breakout
About the Eecv breakout
Eecv breakout is an open source PCB design by rusefi, published on GitHub. It is a 4-layer board measuring 140.8 × 53.7 mm, with 9 components from 4 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
See Connectors wiki page todo: move Connectors wiki page content into git
See Connectors wiki page todo: move Connectors wiki page content into git
35 pin Mazda TCU 38 pin Chrysler NGC connector 48 pin Mazda Miata NA6 52 pin Mitsubishi Galant VR4 55 pin TE Lada 55 pin Motronic 1.5.x BMW/GM 60 pin Ford EEC-IV 64 pin Mazda Miata NA NB1, Honda Civic 68 pin Volkswagen Audi VAG 72 pin Mazda Miata NB2 88 pin Volkswagen Audi VAG 121 pin Volkswagen Audi VAG 134 pin BWM 154 pin Volkswagen Audi VAG
Eecv breakout bill of materials (BOM)
9 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EEC-V | eecv | J1 |
| 3 | Conn_01x13 | PhoenixContact_MCV_1,5_13-G-3.81_1x13_P3.81mm_Vertical | J2, J8, J9 |
| 2 | CONN_02X08 Conn_01x13 | PhoenixContact_MCV_1,5_13-G-3.81_1x13_P3.81mm_Vertical | J3, J4 |
| 3 | CONN_01X03 Conn_01x13 | PhoenixContact_MCV_1,5_13-G-3.81_1x13_P3.81mm_Vertical | J5, J6, J7 |
Eecv breakout design files
The KiCad project lives in the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub; these links point at the commit this page was built from.
Eecv breakout: common questions
How big is the Eecv breakout?
The Eecv breakout measures 140.8 × 53.7 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Eecv breakout?
9 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Eecv breakout design files?
From the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Eecv breakout design in my own project?
The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
