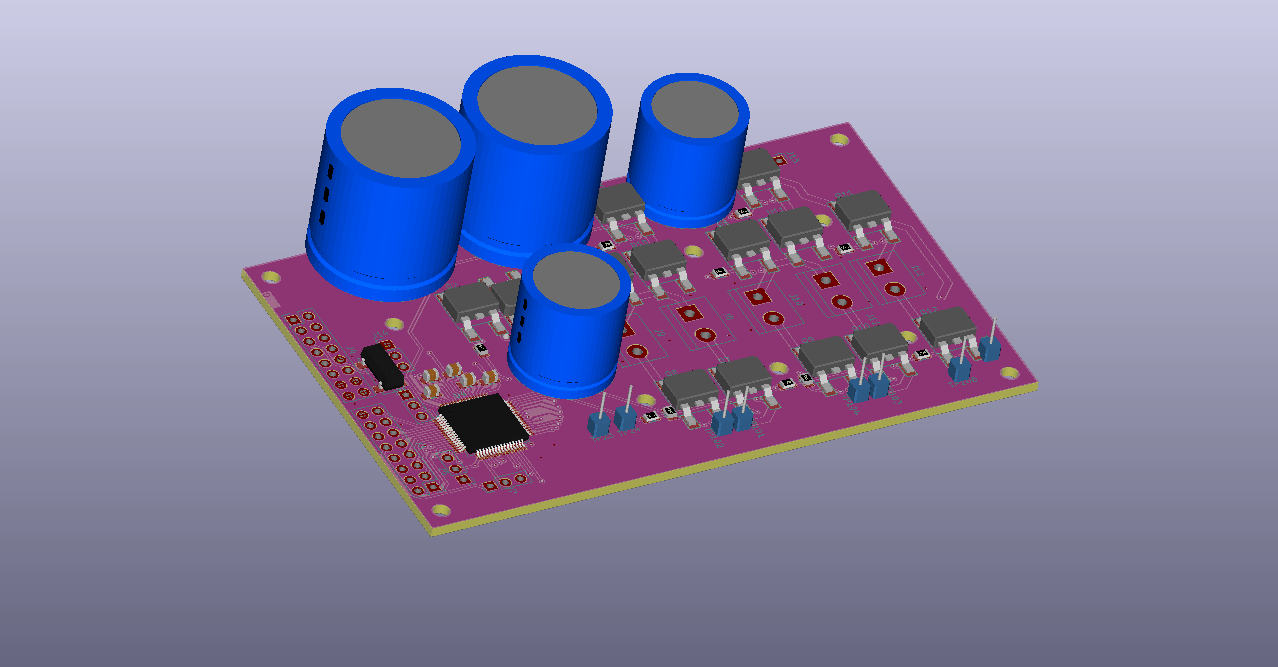

Common Rail MC33816 board
About the Common Rail MC33816 board
Common Rail MC33816 board is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 101.6 × 119.6 mm, with 183 components from 40 distinct parts.
Other key parts include the MC33816. By type, the board carries 55 capacitors, 45 resistors, 38 diodes, 15 test points, 13 connectors and 12 transistors.
From the project
https://rusefi.com/forum/viewtopic.php?f=4&t=1337
Main components on the Common Rail MC33816 board
Common Rail MC33816 board bill of materials (BOM)
183 components, 40 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MC33816 | HTQFP-64-1EP_10x10mm_Pitch0.5mm_ThermalPad_for_MC33816 | U4 |
| 1 | BUK9230-100B | TO-252-2 | Q1 |
| 11 | BUK9230-100B | TO-252-2 | Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9 +3 |
| 1 | 1MHZ 1MHz | Crystal_SMD_SeikoEpson_MC306-4pin_8.0x3.2mm | Y1 |
| 1 | 1MHZ 1MHz | Oscillator_SMD_Diodes_FN-4Pin_7.0x5.0mm | Y2 |
| 2 | CONN_02X08 | Pin_Header_Straight_2x08_Pitch2.54mm | J3, J4 |
| 4 | CONN_01X03 | Pin_Header_Straight_1x03_Pitch2.54mm | J5, J6, J7, J14 |
| 5 | INJ_Term | TerminalBlock_bornier-2_P5.08mm | J8, J9, J10, J11, J12 |
| 1 | CONN_01X01 | Pin_D1.4mm_L8.5mm_W2.8mm_FlatFork | J15 |
| 1 | CONN_01X02 Conn_01x02 | TerminalBlock_bornier-2_P5.08mm | J20 |
| 15 | CONN_01X01 | Pin_D0.7mm_L6.5mm_W1.8mm_FlatFork | TP2, TP3, TP4, TP5, TP6, TP7, TP8, TP23 +7 |
| 23 | LED_Small | LED_0805_2012Metric | D1, D2, D3, D4, D5, D6, D7, D8 +15 |
| 1 | FFD10UP20S | TO-252-2 | D9 |
| 2 | SBR10200CTL | TO-252-2 | D10, D11 |
| 6 | STPS2H100UY | D_SMB | D12, D13, D14, D15, D16, D17 |
| 5 | 5.7V | D_MicroMELF_Handsoldering | D30, D35, D36, D37, D38 |
| 1 | STTH802G STTH802G-TR | TO-263-2 | D34 |
| 1 | 6UH 6uH | 744710610-Inductor | L1 |
| 1 | 10UH 10uH | IHLP6767GZER100M01 | L2 |
| 4 | 100NF 100nF | C_0805 | C1, C3, C5, C7 |
Show 20 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | 10NF 10nF | C_0805 | C2, C4, C6, C18 |
| 4 | 0.1UF 0.1uF | C_0805 | C8, C10, C11, C13 |
| 1 | 1UF 1uF | C_0805 | C9 |
| 1 | 4.7UF 4.7uF | C_0805 | C12 |
| 2 | 1000UF 1000uF | CP_Radial_D22.0mm_P10.00mm_SnapIn | C14, C15 |
| 2 | 220NF 220nF | C_0805 | C16, C17 |
| 11 | 1000PF 1000pF | C_0805 | C19, C35, C36, C37, C38, C55, C56, C57 +3 |
| 2 | 390UF 390uF | CP_Radial_D16.0mm_P7.50mm | C21, C22 |
| 6 | 330PF 330pF | C_0805 | C23, C24, C28, C59, C60, C73 |
| 2 | 0.22UF 0.22uF | C_0805 | C25, C27 |
| 1 | 470PF 470pF | C_0805 | C26 |
| 5 | 0.33UF 0.33uF | C_0805 | C39, C40, C41, C42, C64 |
| 10 | 4700PF 4700pF | C_0805 | C43, C44, C45, C46, C47, C48, C49, C50 +2 |
| 22 | 1k | R_0805 | R1, R2, R3, R4, R5, R6, R7, R8 +14 |
| 2 | 5.1R | R_0805 | R9, R10 |
| 12 | 10R | R_0805 | R11, R13, R14, R15, R16, R17, R18, R19 +4 |
| 4 | 0R010 | R_1206_HandSoldering | R12, R21, R22, R26 |
| 2 | 10k | R_0603_1608Metric | R38, R44 |
| 1 | 1k | R_0805_2012Metric | R42 |
| 2 | 0R010 | R_1206_3216Metric_Pad1.42x1.75mm_HandSolder | R43, R45 |
Common Rail MC33816 board design files
The KiCad project lives in the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub; these links point at the commit this page was built from.
Common Rail MC33816 board: common questions
How big is the Common Rail MC33816 board?
The Common Rail MC33816 board measures 101.6 × 119.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Common Rail MC33816 board?
183 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Common Rail MC33816 board design files?
From the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Common Rail MC33816 board design in my own project?
The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
