Breakout 60pin EEC-IV
About the Breakout 60pin EEC-IV

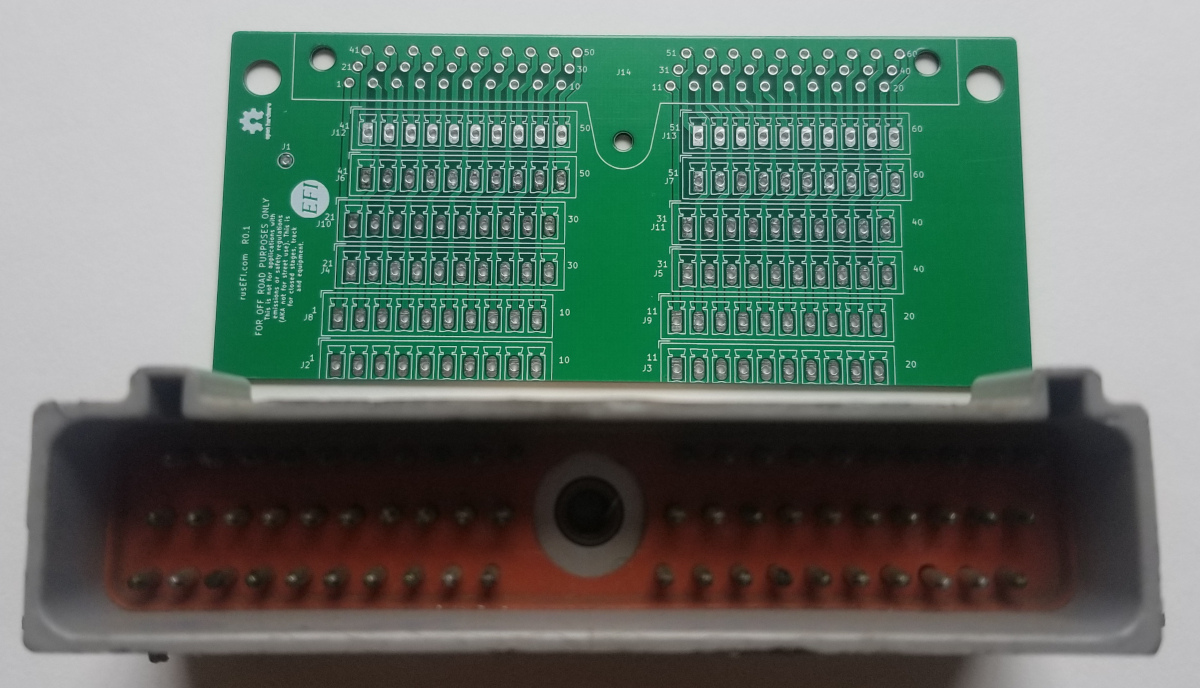

Breakout 60pin EEC-IV is an open source PCB design by rusefi, published on GitHub. It is a 2-layer board measuring 139.7 × 62.2 mm, with 15 components from 6 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
Breakout 60pin EEC-IV bill of materials (BOM)
15 components, 6 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Conn_01x01 | TestPoint_Keystone_5000-5004_Miniature | J1 |
| 7 | Conn_01x10 | PhoenixContact_MCV_1,5_10-G-3.81_1x10_P3.81mm_Vertical | J2, J8, J9, J10, J11, J12, J13 |
| 2 | CONN_02X08 Conn_01x10 | PhoenixContact_MCV_1,5_10-G-3.81_1x10_P3.81mm_Vertical | J3, J4 |
| 3 | CONN_01X03 Conn_01x10 | PhoenixContact_MCV_1,5_10-G-3.81_1x10_P3.81mm_Vertical | J5, J6, J7 |
| 1 | CONN_01X03 EEC-IV | eeciv | J14 |
| 1 | Disclaimer | Off_Road_Disclaimer | G1 |
Breakout 60pin EEC-IV design files
The KiCad project lives in the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub; these links point at the commit this page was built from.
Breakout 60pin EEC-IV: common questions
How big is the Breakout 60pin EEC-IV?
The Breakout 60pin EEC-IV measures 139.7 × 62.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Breakout 60pin EEC-IV?
15 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Breakout 60pin EEC-IV design files?
From the rusefi/custom-board-bundle-sample-fork-of-rusefi repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Breakout 60pin EEC-IV design in my own project?
The repository has no license, so all rights stay with rusefi. Use it as a reference, and ask the author before reusing the design.
