Kicad lp filter

s59mz·kicad-lp_filter

Kicad lp filter PCB layout, top view — open source board by s59mz

About the Kicad lp filter PCB

Kicad lp filter is an open source PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 230 × 130 mm, with 34 components from 12 distinct parts.

By type, the board carries 12 diodes and 3 connectors.

It belongs with the audio designs in this gallery.

From the project

HF End Low Pass Filter for Linear Power Amplifier

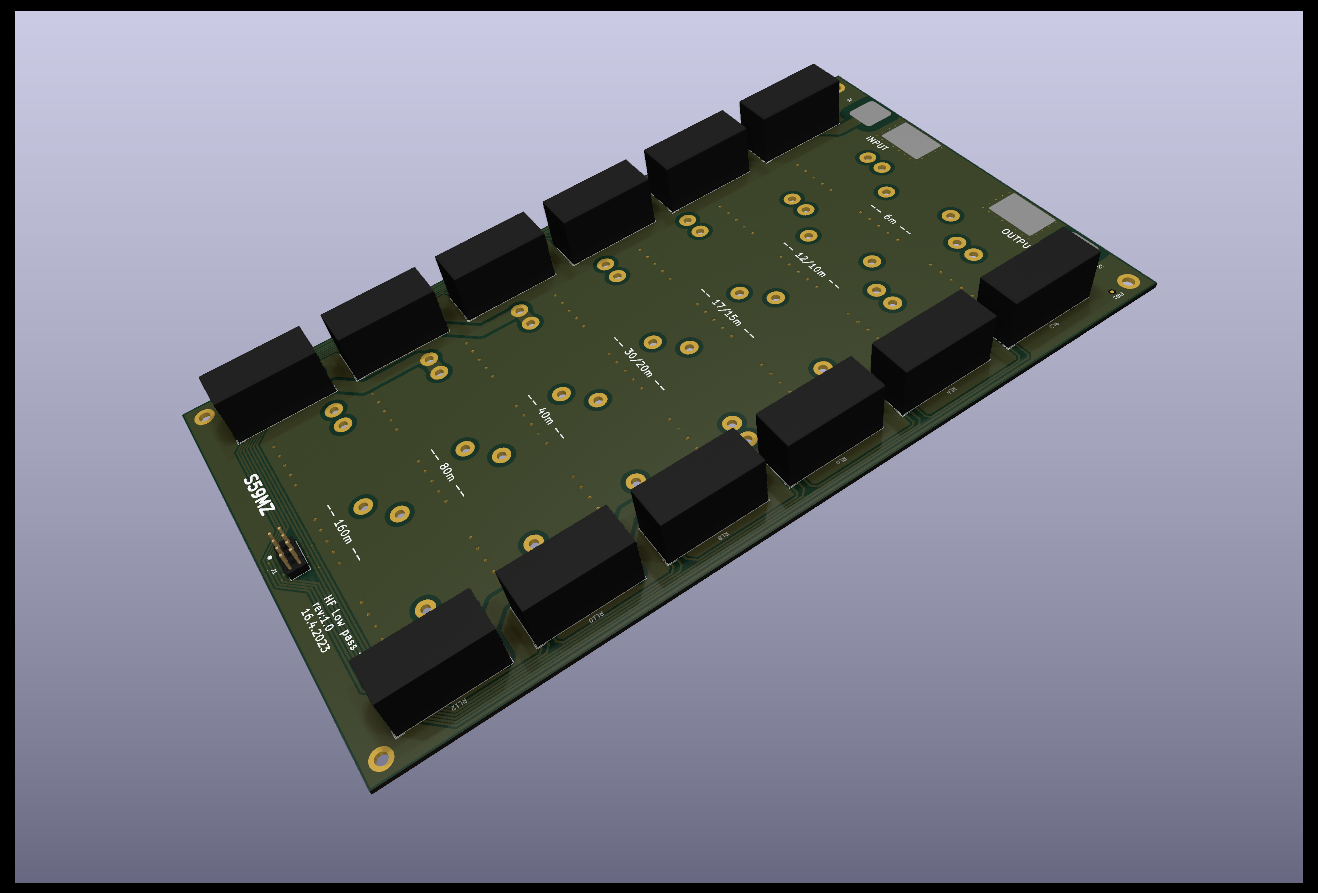

Kicad lp filter, from the project README
From the project README

Kicad lp filter bill of materials (BOM)

34 components, 12 distinct parts.

QtyPartRefs
1
band select
J1
1
Output
J2
1
Input
J3
1
6m
LP1
1
12/10m
LP2
1
17/15m
LP3
1
30/20m
LP4
1
40m
LP5
1
80m
LP6
1
160m
LP7
12
G2RL-2-DC12
RL1, RL2, RL3, RL4, RL5, RL6, RL7, RL8 +4
12
1N4007
D1, D2, D3, D4, D5, D6, D7, D8 +4

Kicad lp filter design files

The KiCad project lives in the s59mz/kicad-lp_filter repository on GitHub; these links point at the commit this page was built from.

Kicad lp filter: common questions

How big is the Kicad lp filter PCB?

The Kicad lp filter measures 230 × 130 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad lp filter?

34 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad lp filter design files?

From the s59mz/kicad-lp_filter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad lp filter design in my own project?

Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.
