Kicad swr meter

s59mz·kicad-swr_meter

Kicad swr meter PCB layout, top view — open source board by s59mz

About the Kicad swr meter PCB

Kicad swr meter is an open source PCB design by s59mz, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 70 × 50 mm, with 16 components from 9 distinct parts.

By type, the board carries 6 resistors, 4 capacitors, 3 diodes, 2 transformers and 1 connector.

It belongs with the audio designs in this gallery.

From the project

HF SWR Meter for Linear Power Amplifier

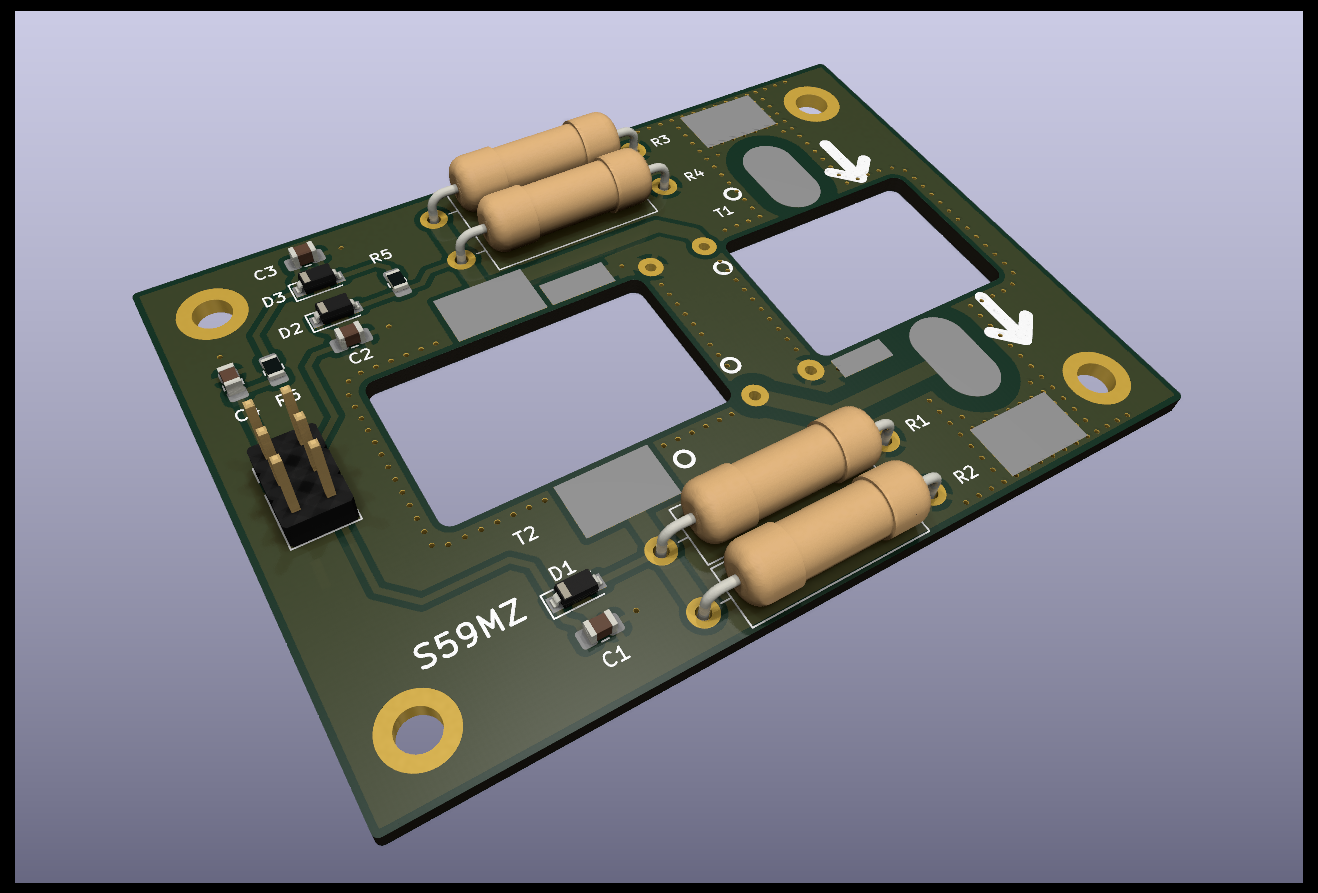

Kicad swr meter, from the project README
From the project README

Kicad swr meter bill of materials (BOM)

16 components, 9 distinct parts.

QtyPartRefs
1
pinHeader
J1
1
FT50-43
T1
1
FT82_43
T2
3
1N5711W
D1, D2, D3
3
10n
C1, C2, C4
1
1n
C3
4
100R
R1, R2, R3, R4
1
100R
R5
1
4.99k
R6

Kicad swr meter design files

The KiCad project lives in the s59mz/kicad-swr_meter repository on GitHub; these links point at the commit this page was built from.

Kicad swr meter: common questions

How big is the Kicad swr meter PCB?

The Kicad swr meter measures 70 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kicad swr meter?

16 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad swr meter design files?

From the s59mz/kicad-swr_meter repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kicad swr meter design in my own project?

Yes, under the terms of its GPL-3.0 license, which s59mz chose for the repository.
