About the Vulpes minora PCB

Vulpes minora is an open source RP2040/RP2350 PCB design by sadekbaroudi, published on GitHub. It is a 2-layer board measuring 124.7 × 96.1 mm, with 67 components from 20 distinct parts.

Its main chip is the RP2040 Controller, from the RP2040/RP2350 family. Other key parts include the nice_nano and AP1603WG-7. By type, the board carries 25 diodes, 21 switches, 5 ICs, 5 jumpers, 4 connectors and 3 capacitors.

It belongs with the keyboards designs in this gallery.

From the project

This is a 36 key split pcb, specifically designed with the intent to demonstrate a VIK certified keyboard. Read all about that in the vik github repository

vulpes minora supports the following features: 36 keys Reversible PCB MX / Choc / KS-27 and KS-33 switch support, hotswap only Underglow EC11 rotary encoders (byo-mcu and RP2040-Zero version only) Audio buzzer (byo-mcu only) VIK support (byo-mcu and RP2040-Zero version only) Wireless + VIK support (using nice!nano controller, byo-mcu version only)

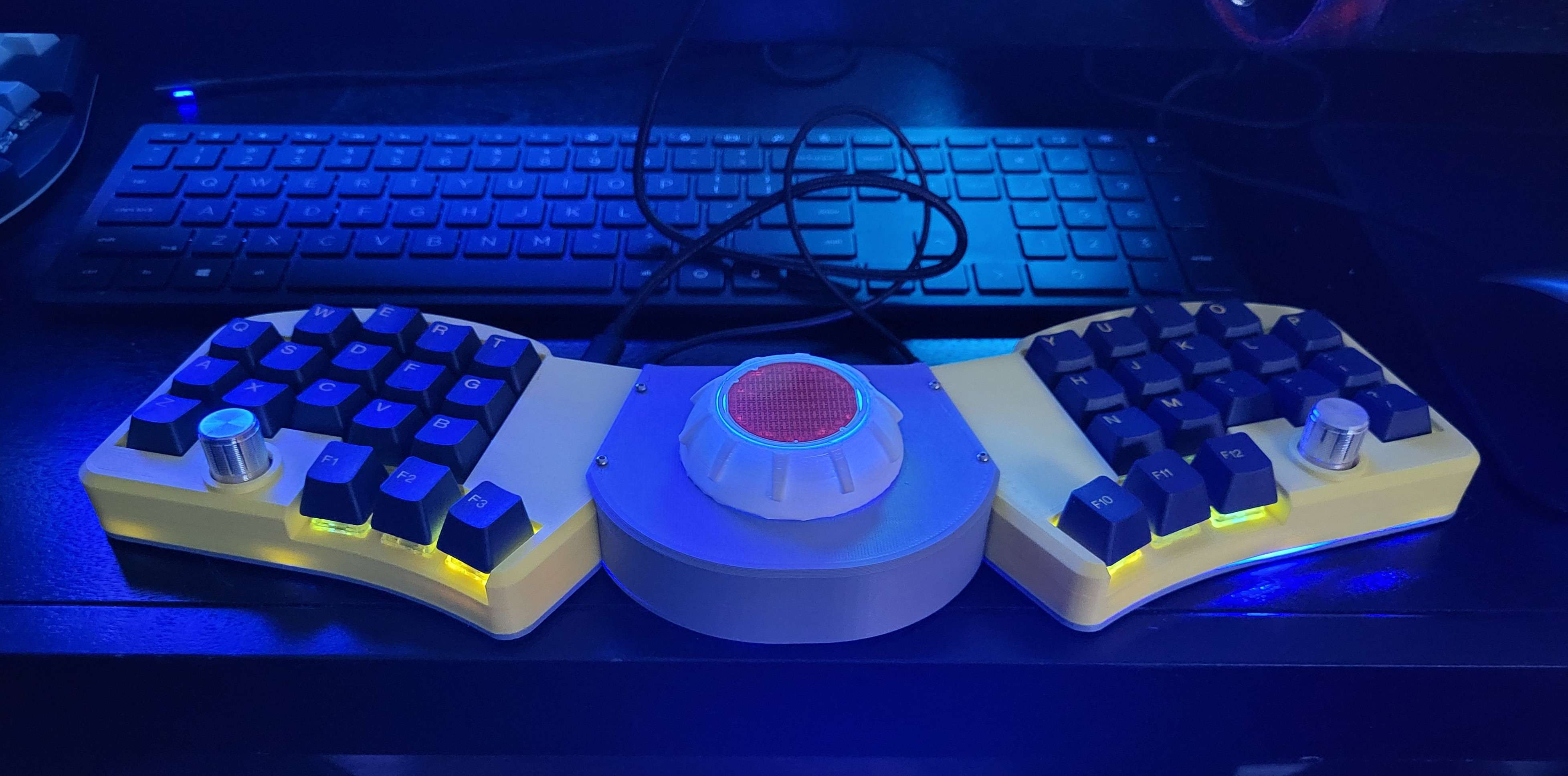

Vulpes minora, from the project README — From the project README

Main components on the Vulpes minora

RP2040 Controller nice_nano AP1603WG-7

Vulpes minora bill of materials (BOM)

67 components, 20 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040 Controller	Elite-C	U1
2	SW_Push	SKQG-1155865	U2, U3
1	nice_nano	nice_nano	U4
1	AP1603WG-7	SOT-23-6	U5
1	CONN_01X03_FEMALE Conn_01x03_Female	JST_PH_S3B-PH-K_1x03_P2.00mm_Horizontal	J1
2	AUDIOJACK4DPB AudioJack4dpb	TRRS-PJ-320A	J2, J3
1	C479750 ~	vik-keyboard-connector-horizontal	J4
2	C201047 Buzzer	AST1109MLTRQ	BZ1, BZ2
2	JUMPER_2_OPEN Jumper_2_Open	SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm	JP2, JP5
2	JUMPER_3_OPEN Jumper_3_Open	SolderJumper-3_P1.3mm_Open_RoundedPad1.0x1.5mm	JP3, JP6
1	SOLDERJUMPER_2_BRIDGED SolderJumper_2_Bridged	SolderJumper-2_P1.3mm_Bridged_Pad1.0x1.5mm	JP4
1	SW_DIP_X01 SW_DIP_x01	SW_CuK_OS102011MA1QN1_SPDT_Angled	SW1
18	SW_Push	gateron-ks27-choc-v1-mx-hotswap-reversible	SW2, SW3, SW4, SW5, SW6, SW8, SW9, SW10 +10
2	RotaryEncoder_Switch	RotaryEncoder_EC11-no-legs	SW47, SW48
19	1N4148W	D_SOD-123	D2, D3, D4, D5, D6, D8, D9, D10 +11
6	WS2812B	LED_WS2812B_PLCC4_5.0x5.0mm_P3.2mm-reversible	D43, D44, D45, D46, D47, D48
1	22 uH	L_0603_1608Metric	L1
2	47 uF	C_0603_1608Metric	C1, C2
1	0.1 uF	C_0402_1005Metric	C3
1	2M	R_0402_1005Metric_Pad0.72x0.64mm_HandSolder	R1

Vulpes minora design files

The KiCad project lives in the sadekbaroudi/vulpes-minora repository on GitHub; these links point at the commit this page was built from.

Layoutpcb/byo-mcu/vulpes-minora.kicad_pcb
Schematicpcb/byo-mcu/vulpes-minora.kicad_sch
BOMpcb/byo-mcu/production/bom.csv

Vulpes minora: common questions

What microcontroller does the Vulpes minora use?

The Vulpes minora is built around the RP2040 Controller, from the RP2040/RP2350 family.

How big is the Vulpes minora PCB?

The Vulpes minora measures 124.7 × 96.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Vulpes minora?

67 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Vulpes minora design files?

From the sadekbaroudi/vulpes-minora repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Vulpes minora design in my own project?

The repository has no license, so all rights stay with sadekbaroudi. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Vulpes minora without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
