ESP32-Garmin-Qautix5-Nautic-Sense.com

About the ESP32-Garmin-Qautix5-Nautic-Sense.com PCB

ESP32-Garmin-Qautix5-Nautic-Sense.com is an open source ESP32 PCB design by Sail-Tech, published on GitHub under the MIT license. It is a board, with 7 components from 7 distinct parts.

Its main chip is the ESP32 DevKit, from the ESP32 family. Other key parts include the SN65HVD230 CAN and MAX490 RS-422. By type, the board carries 3 ICs, 2 connectors and 2 resistors.

It belongs with the iot & wireless, sensors and test & measurement designs in this gallery.

From the project

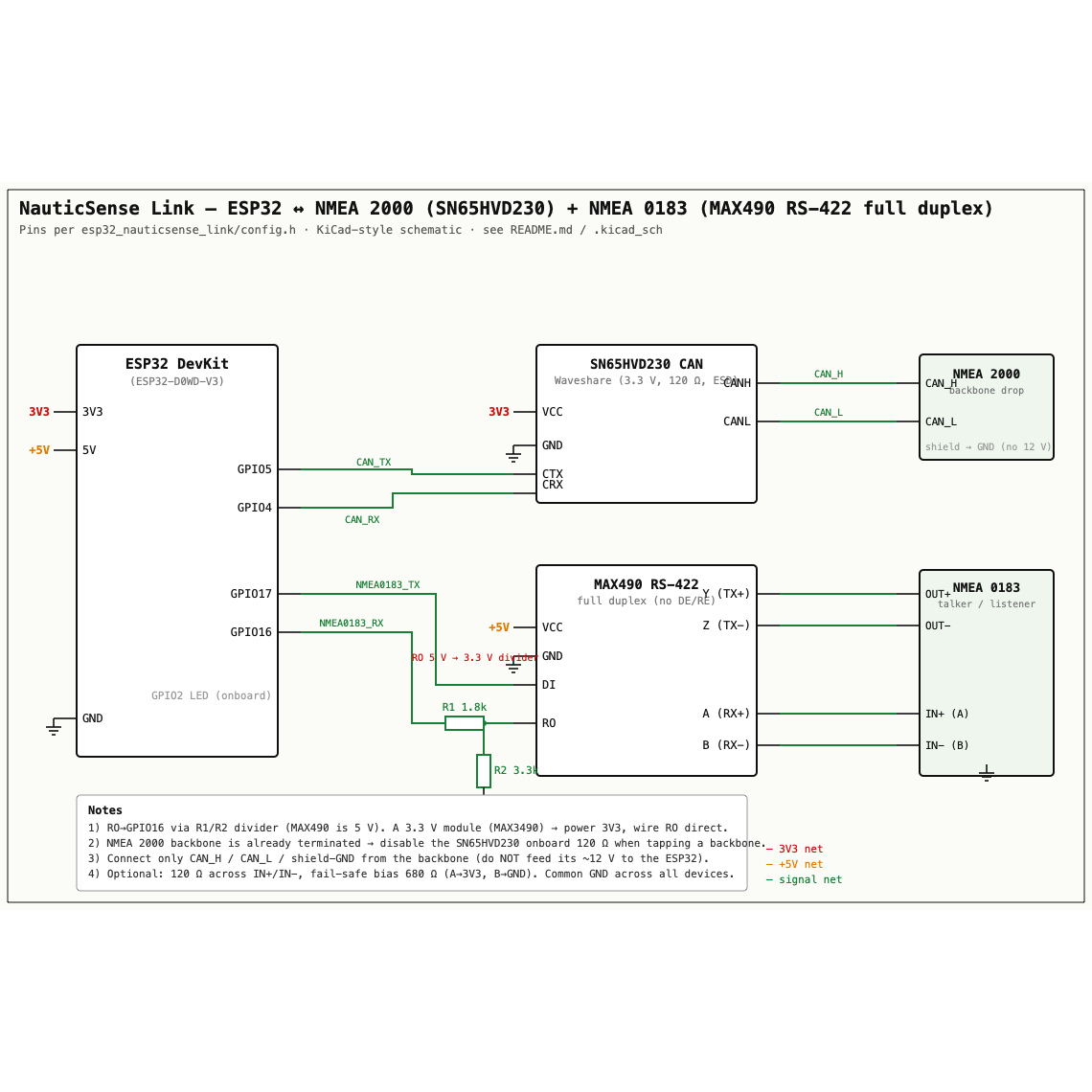

Marine instrument console for the Garmin quatix 5 + ESP32 link (impersonates a BLE HR sensor; reads NMEA 0183/2000/WiFi)

Hardware for the esp32nauticsenselink/ firmware: an ESP32 DevKit reading the boat's data and bridging it to the Garmin watch over BLE.

- NMEA 2000 (CAN) via a Waveshare SN65HVD230 CAN board (3.3 V CAN transceiver with onboard 120 Ω termination + ESD protection). - NMEA 0183 via a MAX490 RS-422 module — full-duplex, so it converts both directions between the ESP32's TTL UART and the differential RS-422 bus (no direction-control pin; the MAX490 driver and receiver are always on).

Main components on the ESP32-Garmin-Qautix5-Nautic-Sense.com

ESP32 DevKitSN65HVD230 CANMAX490 RS-422

ESP32-Garmin-Qautix5-Nautic-Sense.com bill of materials (BOM)

7 components, 7 distinct parts.

QtyPartRefs
1
ESP32 DevKit
U1
1
SN65HVD230 CAN
U2
1
MAX490 RS-422
U3
1
NMEA2000
J1
1
NMEA0183
J2
1
1.8k
R1
1
3.3k
R2

ESP32-Garmin-Qautix5-Nautic-Sense.com design files

The KiCad project lives in the Sail-Tech/ESP32-Garmin-Qautix5-Nautic-Sense.com repository on GitHub; these links point at the commit this page was built from.

ESP32-Garmin-Qautix5-Nautic-Sense.com: common questions

What microcontroller does the ESP32-Garmin-Qautix5-Nautic-Sense.com use?

The ESP32-Garmin-Qautix5-Nautic-Sense.com is built around the ESP32 DevKit, from the ESP32 family.

How many components are on the ESP32-Garmin-Qautix5-Nautic-Sense.com?

7 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the ESP32-Garmin-Qautix5-Nautic-Sense.com design files?

From the Sail-Tech/ESP32-Garmin-Qautix5-Nautic-Sense.com repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the ESP32-Garmin-Qautix5-Nautic-Sense.com design in my own project?

Yes, under the terms of its MIT license, which Sail-Tech chose for the repository.

Can I test firmware for the ESP32-Garmin-Qautix5-Nautic-Sense.com without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
