About the Hat

Hat is an open source PCB design by saktheeswaranswan, published on GitHub. It is a 2-layer board measuring 65 × 56 mm, with 81 components from 40 distinct parts.

Other key parts include the OPA2674. By type, the board carries 27 resistors, 26 capacitors, 4 diodes, 4 inductors, 3 relays and 2 transistors.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

RadioBerry V2.0 - Ham radio cape for Raspberry PI ==============================================

RadioBerry V2.0 - Ham radio cape for Raspberry PI ==============================================

- Building a HAM Radio - Learning (from noob to guru)

WIKI FOR MORE DETAILS: https://github.com/pa3gsb/Radioberry-2.x/wiki

- Raspberry PI - Radio extension board (cape) - using AD9866 (12 bit) for RX and TX modes.

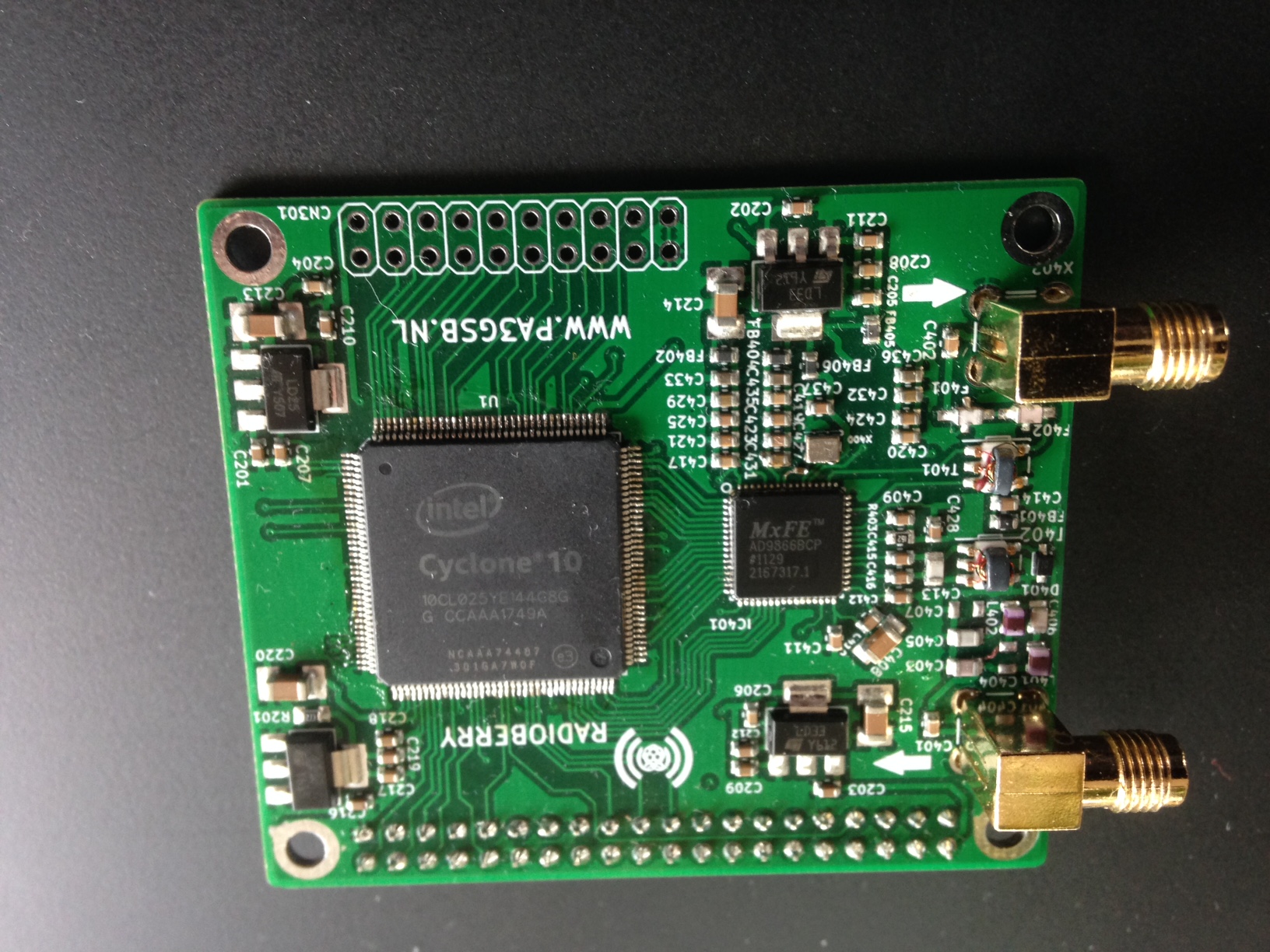

Hat, from the project README
From the project README

Main components on the Hat

OPA2674

Hat bill of materials (BOM)

81 components, 40 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
OPA2674
U301
2
NUD3124
Q201, Q202
1
PS
CN101
1
IO10
DB201
1
Polyfuse
F101
1
FEMALE_PINHEAD_PINHD-2X10
JP201
3
G6K-2
K301, K302, K303
4
DNI
MH1, MH2, MH3, MH4
4
SMA
RF301, RF302, RF303, RF304
1
TC4-1T
T301
1
ADT1.5-1+
T302
1
SMBJ18CA
D101
3
1N4148
D301, D302, D303
1
L_Small
L301
1
160nH
L302
2
130nH
L303, L304
1
10pF
C101
2
100pF
C102, C315
1
10uF
C103
4
1uF
C201, C202, C203, C204
Show 20 more
QtyPartRefs
12
0.1uF
C301, C302, C303, C304, C305, C306, C310, C311 +4
1
5.6pF
C307
1
30pF
C308
1
20pF
C309
1
82pF
C313
1
110pF
C314
1
68pF
C316
4
2.2K
R201, R202, R205, R206
4
100
R203, R204, R207, R208
2
4.7K
R209, R210
1
247.5
R301
2
61.11
R302, R303
2
470
R304, R316
2
1K
R305, R317
2
12
R306, R314
2
4R99
R307, R315
3
0
R308, R312, R313
1
50
R309
1
330
R310
1
200
R311

Hat design files

The KiCad project lives in the saktheeswaranswan/Ham-monk-RadioBerry-V2.0---Ham-radio-cape-for-Raspberry-PI repository on GitHub; these links point at the commit this page was built from.

Hat: common questions

How big is the Hat?

The Hat measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Hat?

81 components, from 40 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Hat design files?

From the saktheeswaranswan/Ham-monk-RadioBerry-V2.0---Ham-radio-cape-for-Raspberry-PI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Hat design in my own project?

The repository has no license, so all rights stay with saktheeswaranswan. Use it as a reference, and ask the author before reusing the design.
