Nearness

sarnesjo·nearness·pcb/nearness.kicad_pcb

Nearness PCB layout, top view — open source board by sarnesjo

About the Nearness PCB

Nearness is an open source PCB design by sarnesjo, published on GitHub. It is a 2-layer board measuring 14 × 106.7 mm, with 52 components from 17 distinct parts.

Other key parts include the 926-LME49720MAX/NOPB. By type, the board carries 24 resistors, 16 connectors, 8 capacitors, 2 ICs and 2 diodes.

It belongs with the audio designs in this gallery.

From the project

Minimal panning mixer for the Eurorack modular synthesizer system

Minimal panning mixer for the Eurorack modular synthesizer system. Seven inputs, two outputs. The closer an input is to an output, the greater its influence on it. 3HP.

The pcb directory contains the schematic and PCB layout as a KiCad 5 project.

For convenience, the PCBs are available from OSH Park (front, back).

The panel directory contains a basic panel layout in SVG format, for use with a laser cutter or CNC machine.

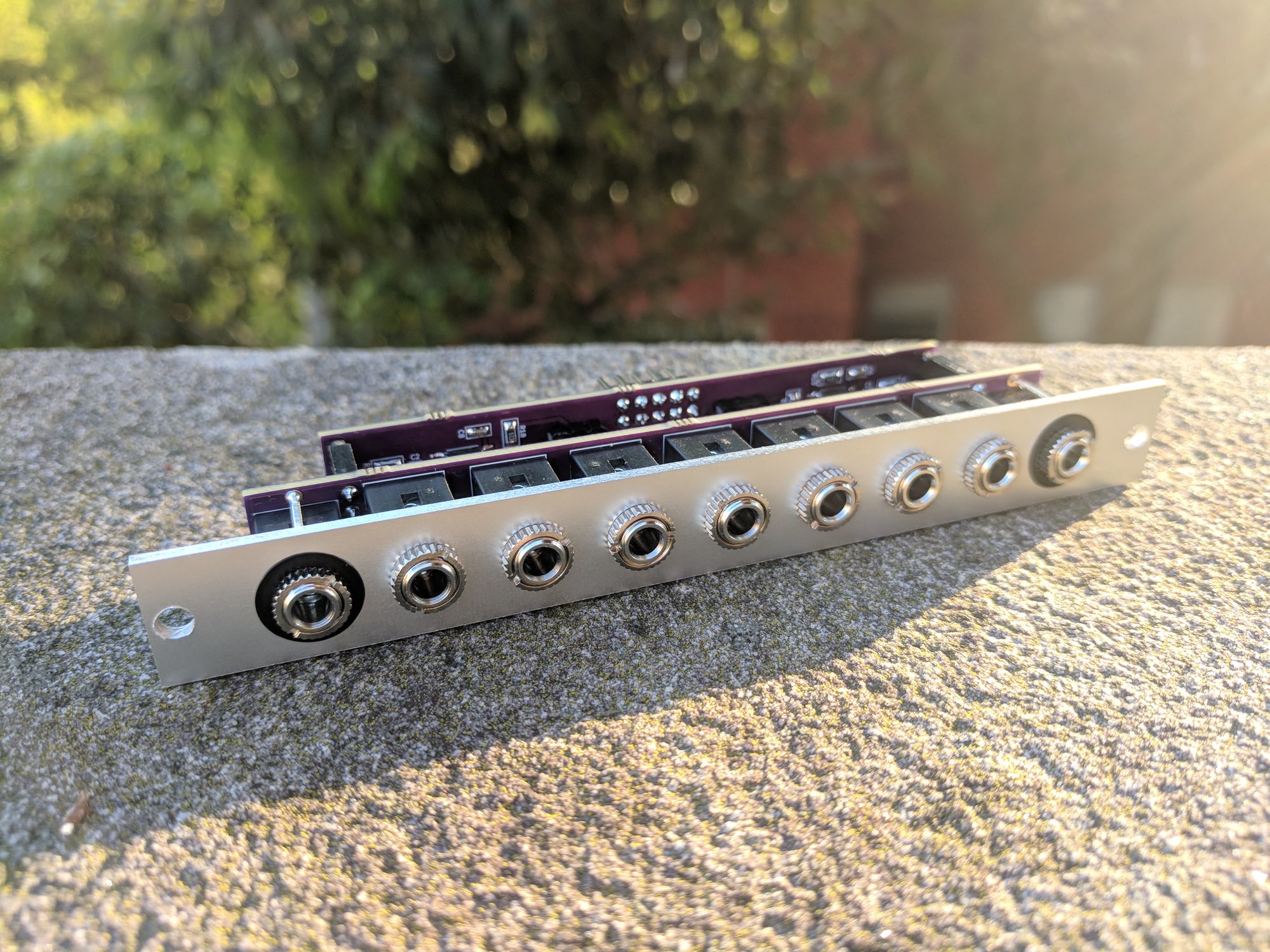

Nearness, from the project README
From the project README

Main components on the Nearness

926-LME49720MAX/NOPB

Nearness bill of materials (BOM)

52 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
926-LME49720MAX/NOPB
LME49720
U1, U2
9
PJ301M12
J1, J2, J3, J4, J5, J6, J7, J8 +1
4
CONN_01X05
P1, P2, P3, P4
2
CONN_01X03
P5, P6
1
CONN_01X03
P7
2
621-1N5819HW-F
1N5819HW
D1, D2
2
22P
22p
C1, C2
2
22U
22u
C3, C4
4
100N
100n
C5, C6, C7, C8
10
100K
100k
R1, R14, R15, R16, R17, R18, R19, R20 +2
2
1M69
1M67
R2, R13
2
102K
103k
R3, R12
2
442K
439k
R4, R11
2
113K
113k
R5, R10
2
215K
215k
R6, R9
2
140K
141k
R7, R8
2
1k
R23, R24

Nearness design files

The KiCad project lives in the sarnesjo/nearness repository on GitHub; these links point at the commit this page was built from.

Nearness: common questions

How big is the Nearness PCB?

The Nearness measures 14 × 106.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nearness?

52 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Nearness design files?

From the sarnesjo/nearness repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Nearness design in my own project?

The repository has no license, so all rights stay with sarnesjo. Use it as a reference, and ask the author before reusing the design.
