Sivasankar s-Keyboard

sasukeop108·Sivasankar-s-Keyboard·PCB/Sivasankar's keyboard.kicad_pcb

Sivasankar s-Keyboard PCB layout, top view — open source RP2040/RP2350 board by sasukeop108
Simulate this board

About the Sivasankar s-Keyboard PCB

Sivasankar s-Keyboard is an open source RP2040/RP2350 PCB design by sasukeop108, published on GitHub under the MIT license. It is a 2-layer board measuring 343.1 × 122.8 mm, with 169 components from 3 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. By type, the board carries 84 switches, 84 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

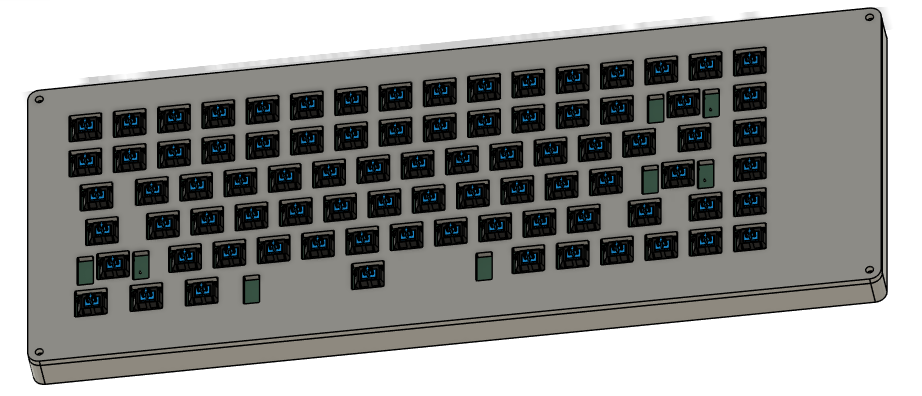

Sivasankar s-Keyboard, from the project README
From the project README

Main components on the Sivasankar s-Keyboard

Raspberry_Pi_Pico

Sivasankar s-Keyboard bill of materials (BOM)

169 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Raspberry_Pi_Pico
U1
84
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +76
84
D
D1, D2, D3, D4, D5, D6, D7, D8 +76

Sivasankar s-Keyboard design files

The KiCad project lives in the sasukeop108/Sivasankar-s-Keyboard repository on GitHub; these links point at the commit this page was built from.

Sivasankar s-Keyboard: common questions

What microcontroller does the Sivasankar s-Keyboard use?

The Sivasankar s-Keyboard is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the Sivasankar s-Keyboard PCB?

The Sivasankar s-Keyboard measures 343.1 × 122.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sivasankar s-Keyboard?

169 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Sivasankar s-Keyboard design files?

From the sasukeop108/Sivasankar-s-Keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Sivasankar s-Keyboard design in my own project?

Yes, under the terms of its MIT license, which sasukeop108 chose for the repository.

Can I test firmware for the Sivasankar s-Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
